Spinner type FR

1000 Bar

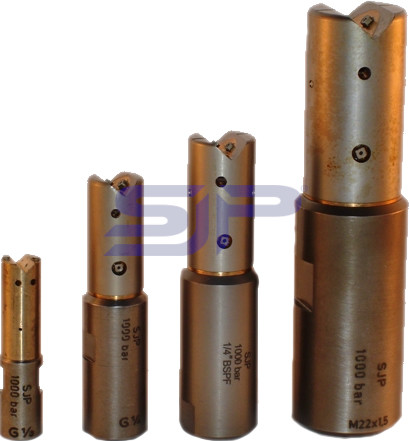

Spinner type FR

Product description

A standard tube cleaning nozzle will clean very good but a standard nozzle will always leave “cleaning marks” in the tube.

To avoid this problem we can clean direct the tube with the Front radial Spin Jet ore after the standard tube cleaning nozzle for “polishing” the tube.

Those nozzles can be used for cleaning “problem tubes” for a extremely high cleaning rate, the forward cutting jets will unblocked the tubes, (let the nozzle do the job, so not push the nozzle). This nozzle can only be used on lance machines, by using on a flex hose you have to use pulling nozzles (see accessories Type FR & R nozzles).

Technical details ;

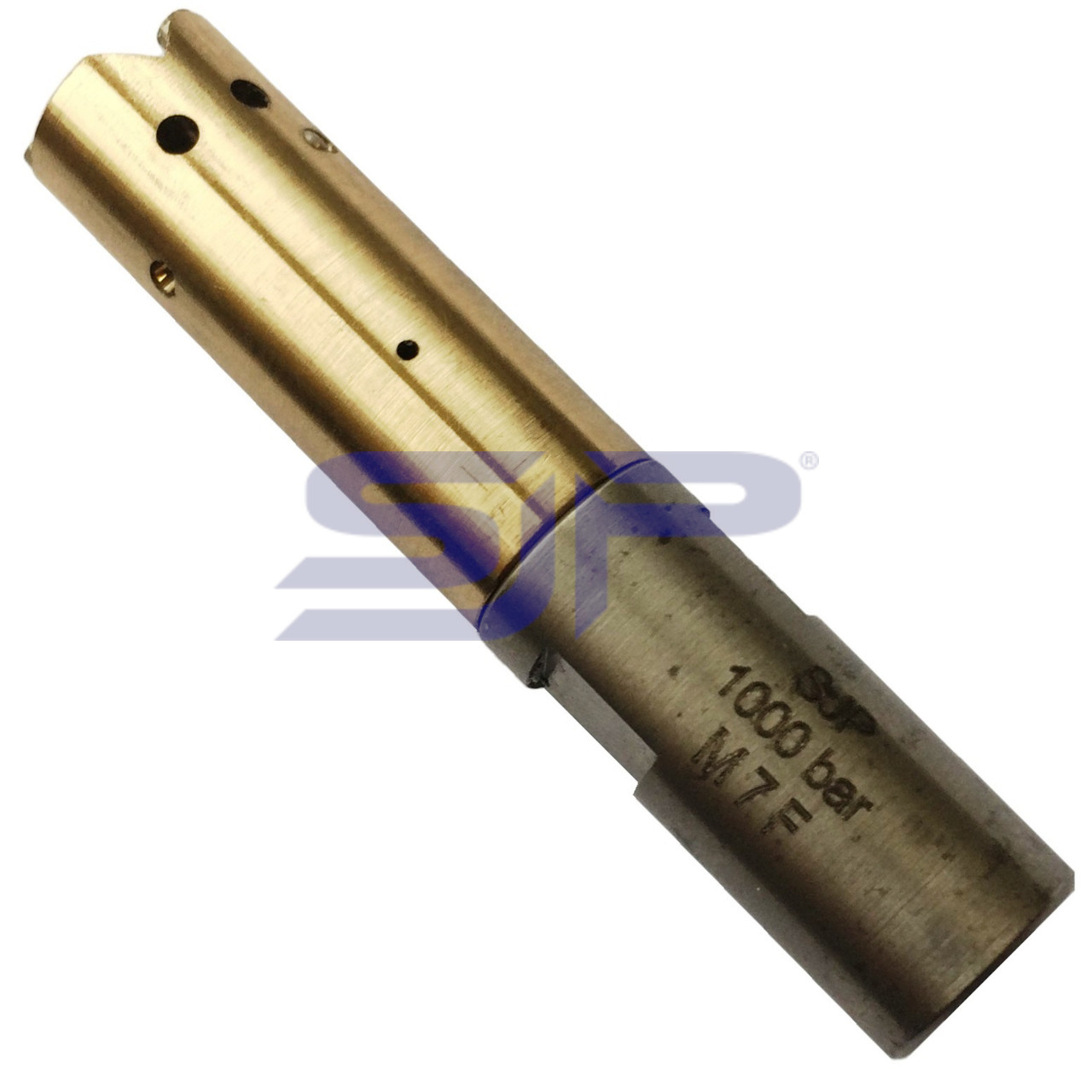

  • FR10
  • ø 10 x 50 mm.
  • M7F
  • Front : 2 x 0,80 mm. 45° / Side ; 2 x 0,80 mm. 95°
  • Flow at 1000 bar ± 30 ltr./ min.
  • Part number : FR10

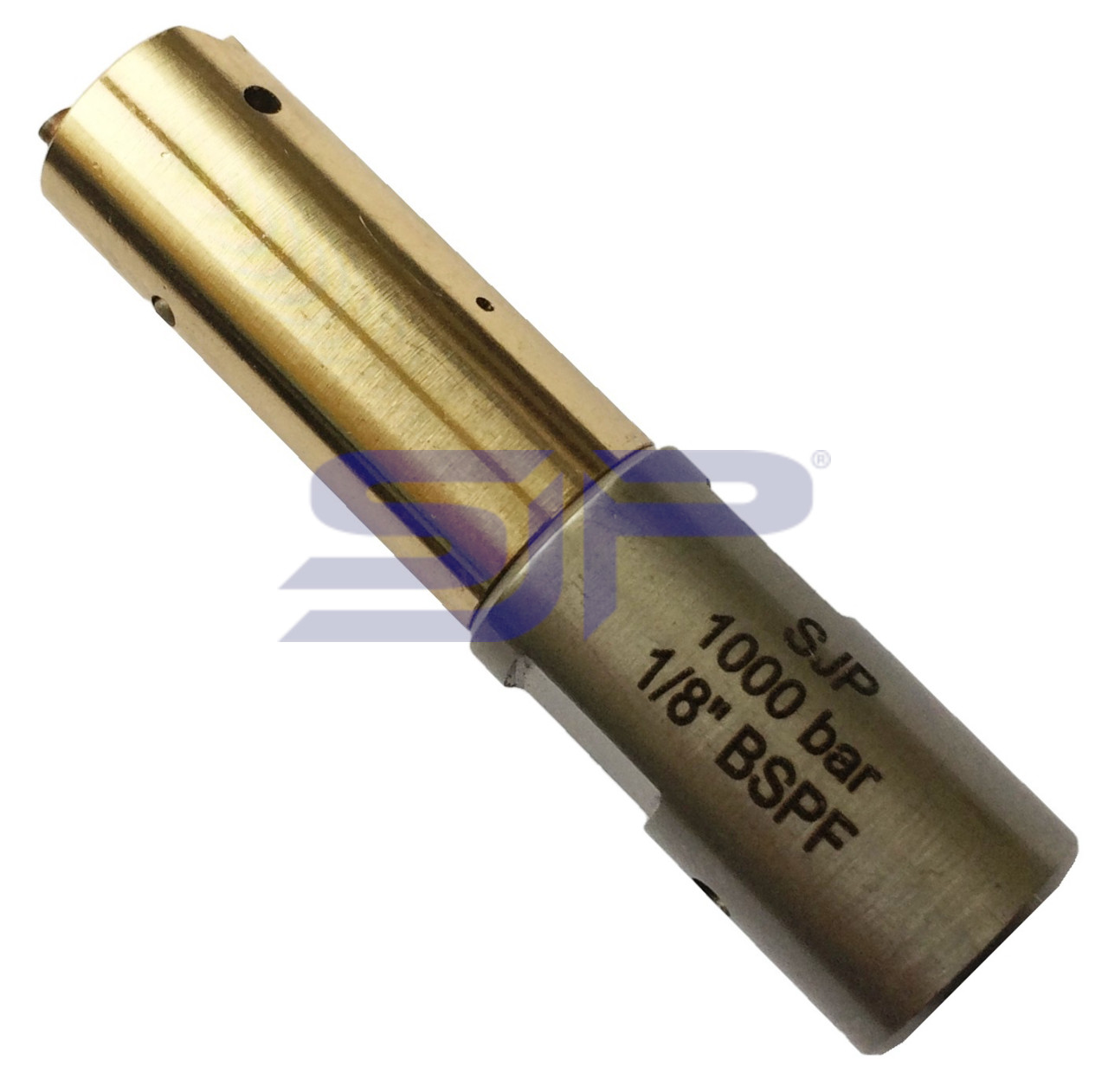

  • FR12
  • ø 12 x 50 mm.
  • ⅛“BSPF
  • Front : 2 x 0,8 mm. 45° / Side ; 2 x 0,80 mm. 95°
  • Flow at 1000 bar ± 30 ltr./ min.
  • Part number : FR12

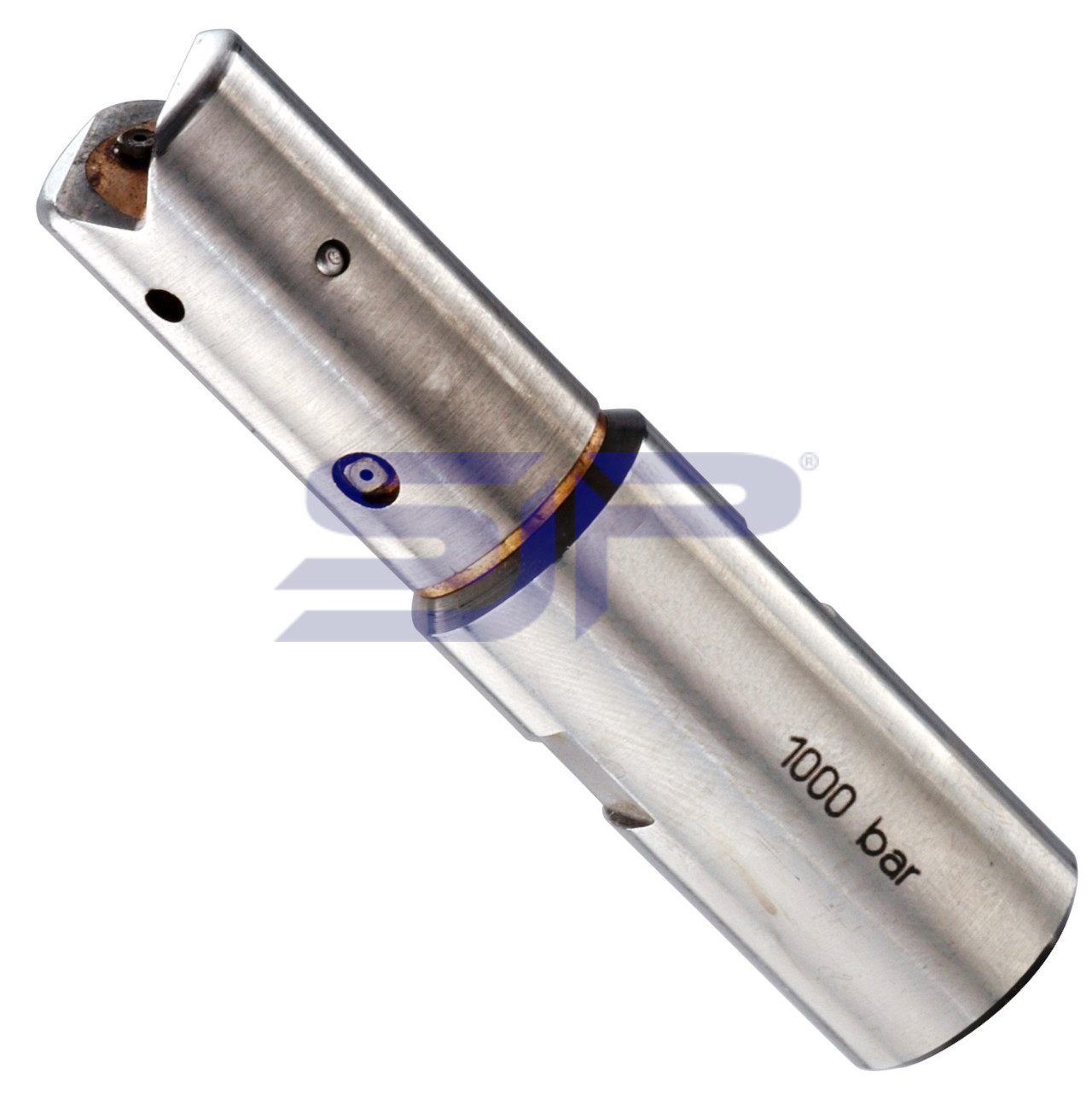

  • FR18
  • ø 18 x 70 mm.
  • ¼“BSPF
  • Front : 2 x M3 ø 0,80 mm. 45° / Side ; 2 x M3 ø 0,80 mm. 95°
  • Flow at 1000 bar ± 42 ltr./ min.
  • Part number : FR18


  • FR22 low flow
  • ø 22 x 80 mm.
  • ¼“BSPF
  • Front : 2 x M4 ø 0,50 mm. 45° / Side ; 2 x M4 ø 0,50 mm. 95°
  • Flow at 1000 bar ± 19 ltr./ min.
  • Part number : FR22.05


  • FR22 low flow
  • ø 22 x 80 mm.
  • ¼“BSPF
  • Front : 2 x M4 ø 0,60 mm. 45° / Side ; 2 x M4 ø 0,60 mm. 95°
  • Flow at 1000 bar ± 37 ltr./ min.
  • Part number : FR22.06

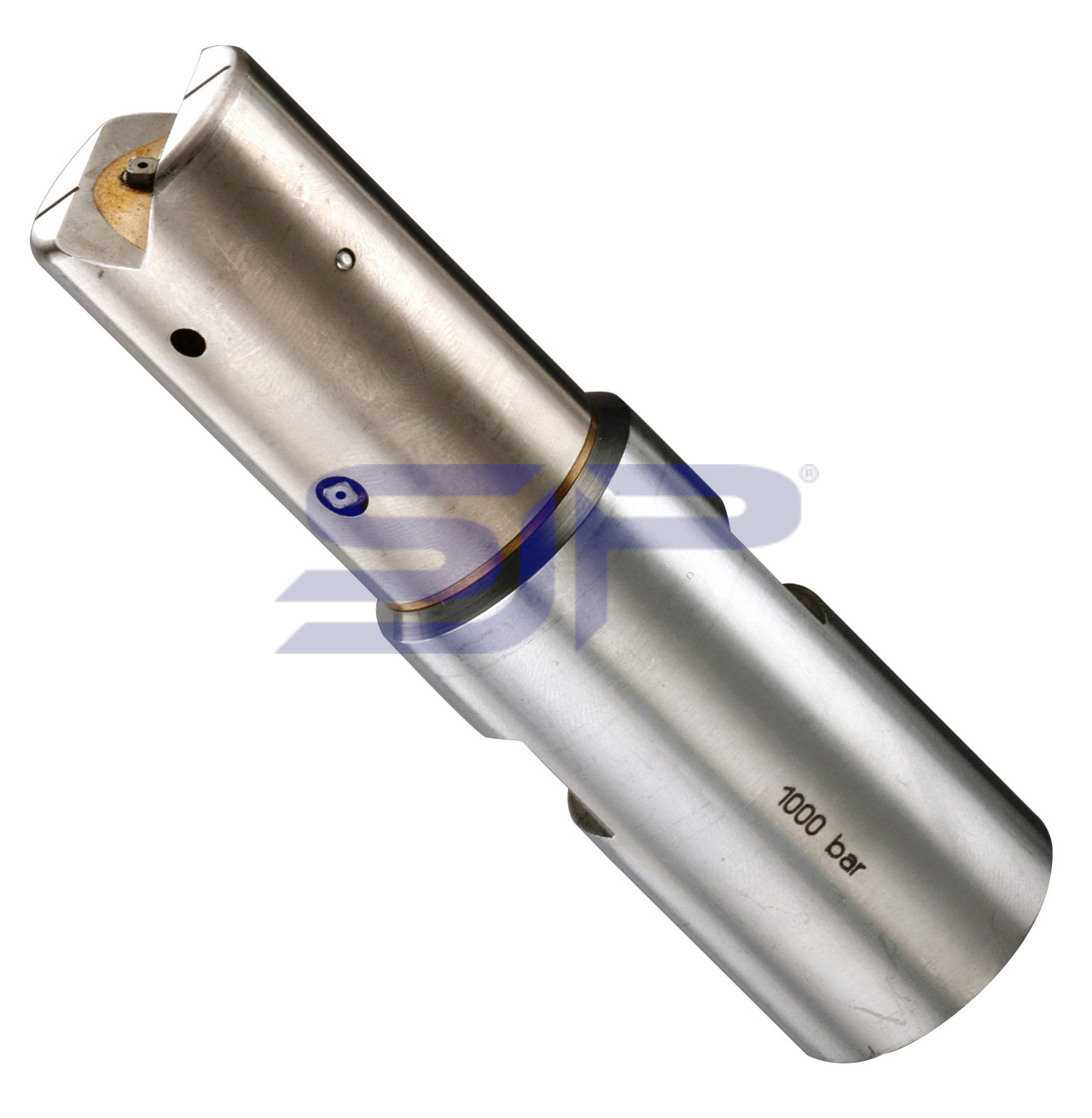

  • FR22
  • ø 22 x 80 mm.
  • ¼“BSPF
  • Front : 2 x M4 ø 1,0 mm. 45° / Side ; 2 x M4 ø 1,0 mm. 95°
  • Flow at 1000 bar ± 73 ltr./ min.
  • Part number : FR22

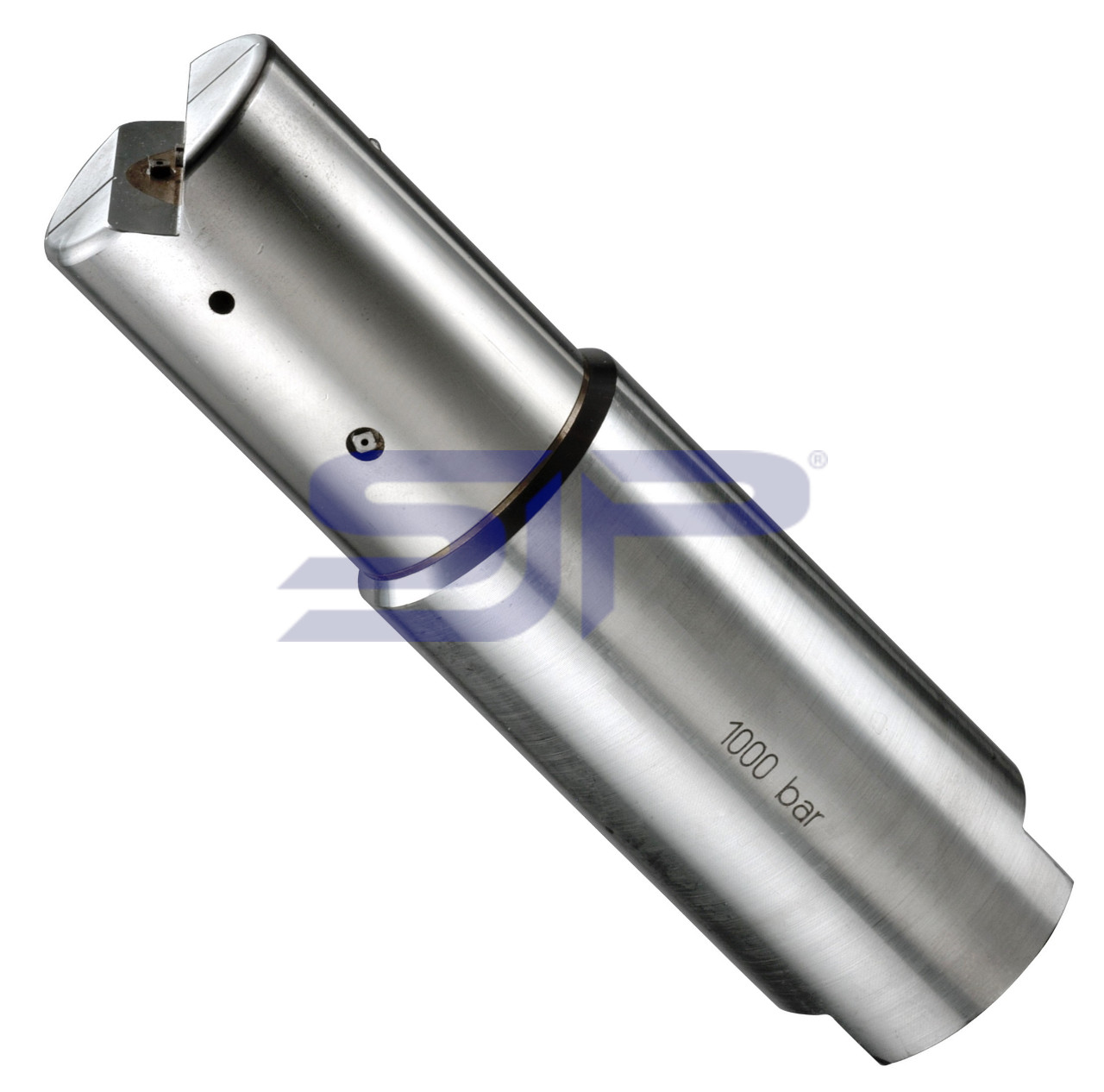

  • FR31
  • ø 31 x 115 mm.
  • M22x1,5F
  • Front : 2 x M4 ø 1,0 mm. 45° / Side ; 2 x M4 ø 1,0 mm. 95°
  • Flow at 1000 bar ± 79 ltr./ min.
  • Part number : FR31


  • FR47
  • ø 47 x 160 mm.
  • M22x1,5F
  • Front : 2 x M4 ø 1,0 mm. 45° / Side ; 2 x M4 ø 1,0 mm. 95°
  • Flow at 1000 bar ± 80 ltr./ min.
  • Part number : FR47
