Type 3872

3000 Bar

Product description

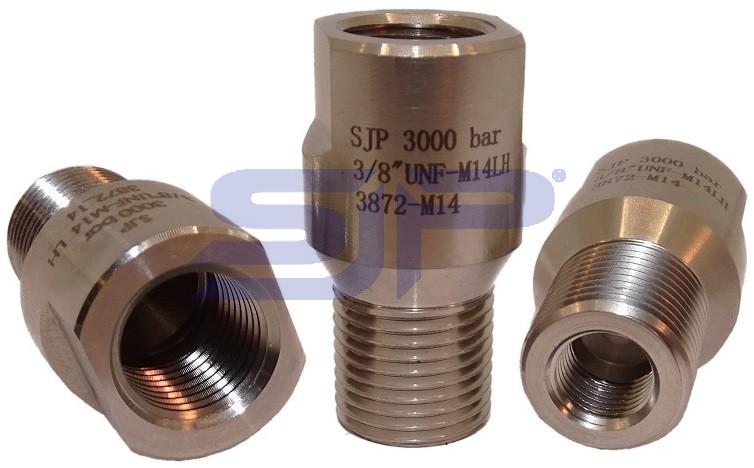

Stainless waterjet orifice nozzle holder.

9/16"-18UNF LH or M14x1,5 LH female (barrel) - 3/8"-24UNF female (to fit 3546-3024 nozzles).

  • Outside 5/8"-18UNF to fit wear cap.
  • Dimensions: ΓΈ 20,6 (13/16") x 38,1mm. (1,5"), wrench flats 11/16"
  • Holder 9/16"-18UNF LH female, Part number : 3872
  • Holder M14x1,5 LH female, Part number : 3872.14
  • Material : exotic st. st. + heat treatment

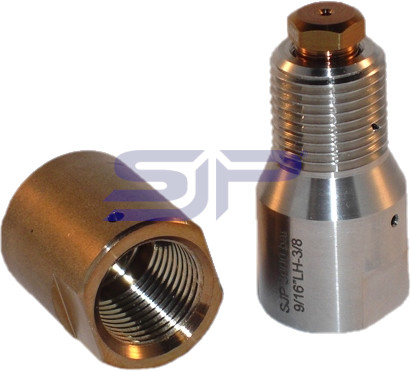

  • Wear cap, Part number : 3281


All our adapters / nozzle holders are unselective tested,

When we receive adapters at least two of them will be tested at least 1.3 x working pressure on attached pdf file (click on document) you will find test certificate of this adapter who is tested at 3000 Bar

Open attached drawing for more details
