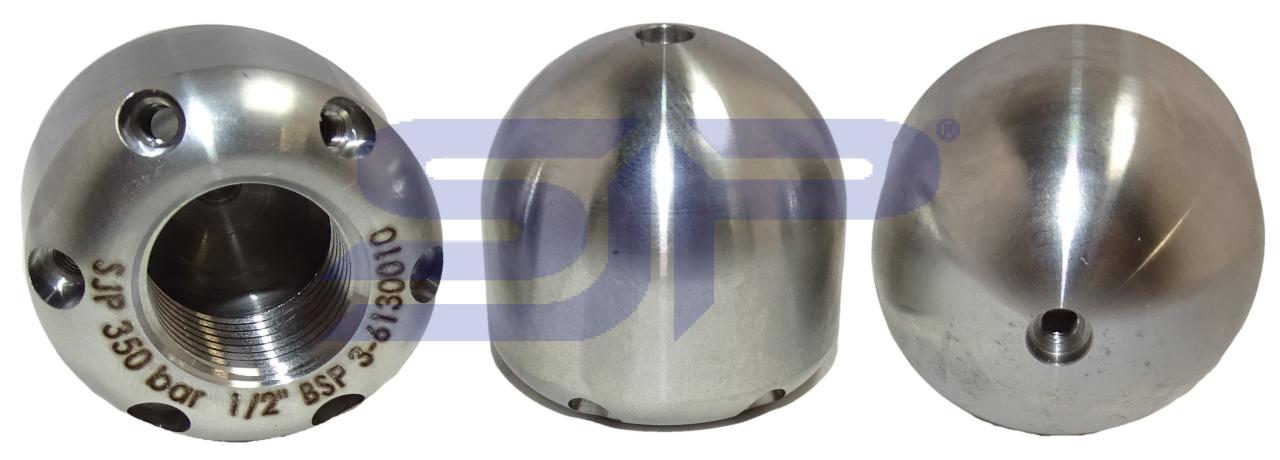

Short pulling nozzle 40-38
350 Bar
Product description
Pulling nozzles are made of stainless steel and have outstanding pulling / and cleaning performance due to the nozzle angles, with front jet available.
They are suitable for small sewers with heavily soiled pipe and long reaches.
This short edition is also suitable for cleaning drains with bends.
- Dimensions : ø 40 x 38 mm.
- Nozzle patron 6 x M4F 20° pulling + M4F 0° front
- Cleaning area : ø 70 - ø 200 mm.
- Min. pump capacity : 30 ltr./min.
- Mat.: st.st. 316 (chemical resistant).
- Weight 0,2 kg.
- Part number : 3-6130010
Open attached drawing for more details
- M4 ceramic inserts 1501
- M4 st.st. nozzle insert 1295
- Bottle Loctite® 243 for mounting the inserts
