Nozzle tip drop-inn
300 Bar
Product description

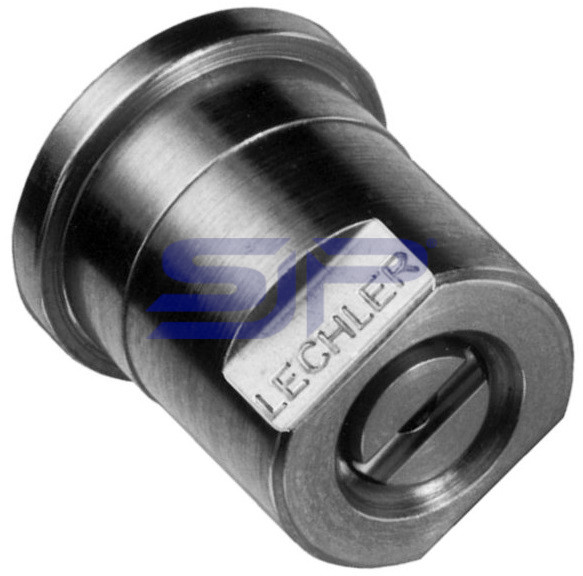

Type FJ tip (652)
Fan jet nozzles to clean a bigger area than you can do with a round jet, round jets are more effective, they can be used for different applications and easy mounted in a special nozzle holder + flat rubber seal
Technical description :
- Dimensions ø 14,3 x ø 12,65 x 16 mm.

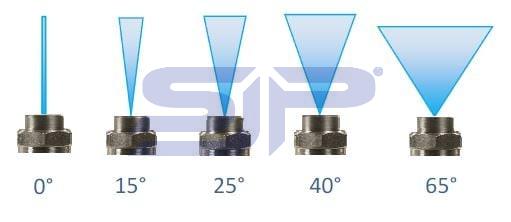

- Angle 20° - 30° - 45° - 60°
- Diameters : 020 up to 175
- Body made of st. steel 303, nozzle tip 1.4034
- Part number 60.....+ nozzle number, so nozzle number 020 angle 60° : 6065020
Characteristics and advantages:
- High cleaning achievement
- Easily,
- Simply positioning with the flat sides
- Efficiently
Applications : Surface cleaning – Sweepers - roadcleaners and guns
- Flat seal ring P/N : 065.24.073
- St.steel ⅜"swivel nut P/N : 065.200.16
- O-ring for gun use with M18 noozzle holder P/N : 79024B
- Nozzle holder - protector M18 P/N : 51960
To calculate the correct nozzle size you can use attached Nozzle chart, for example : 150 bar - 16 ltr. nozzle number 060, please note, this chart is approximate, so it can be a little different in practice.
