Turbo I Chain Cutter

280 Bar

Product description

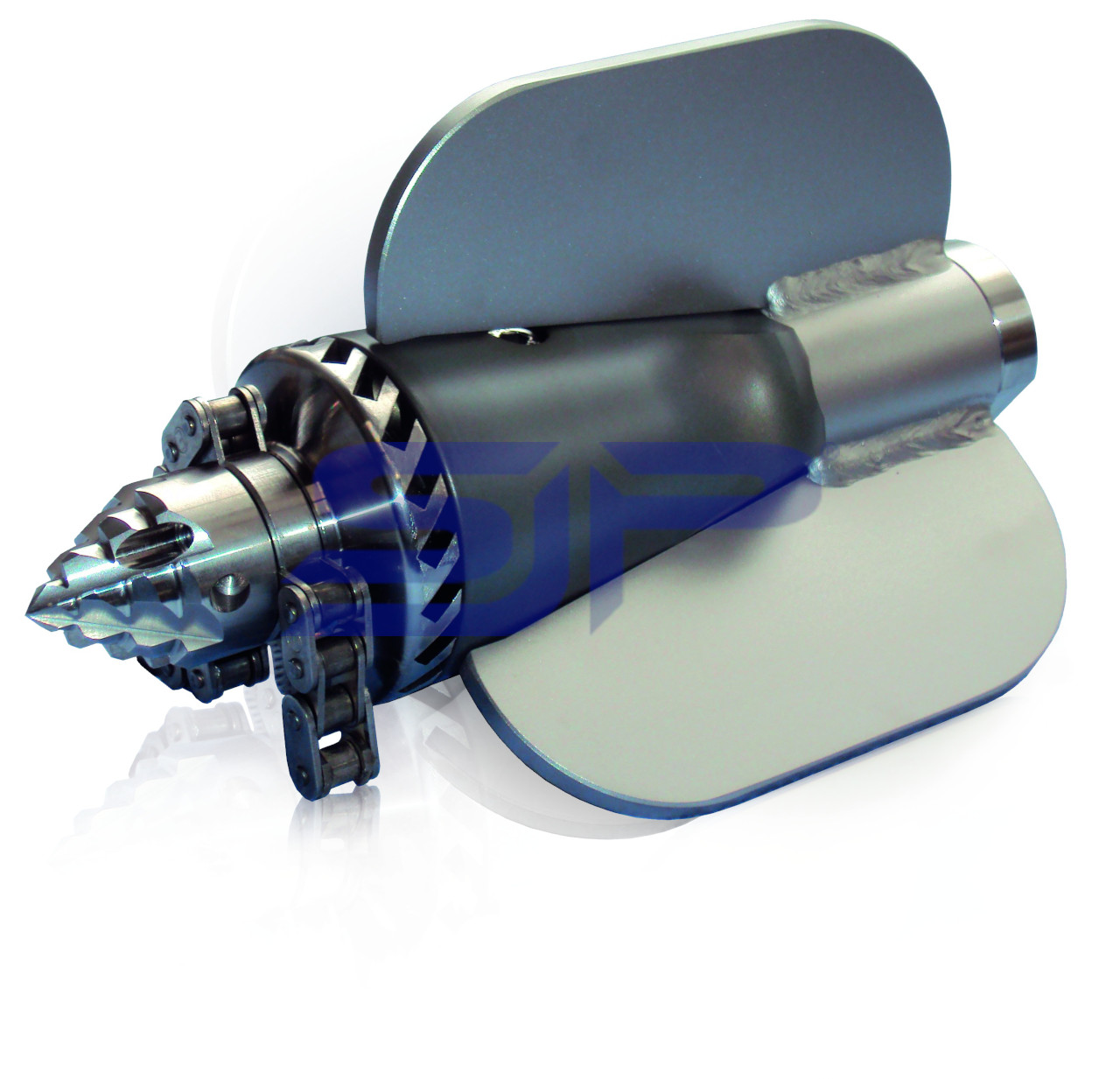

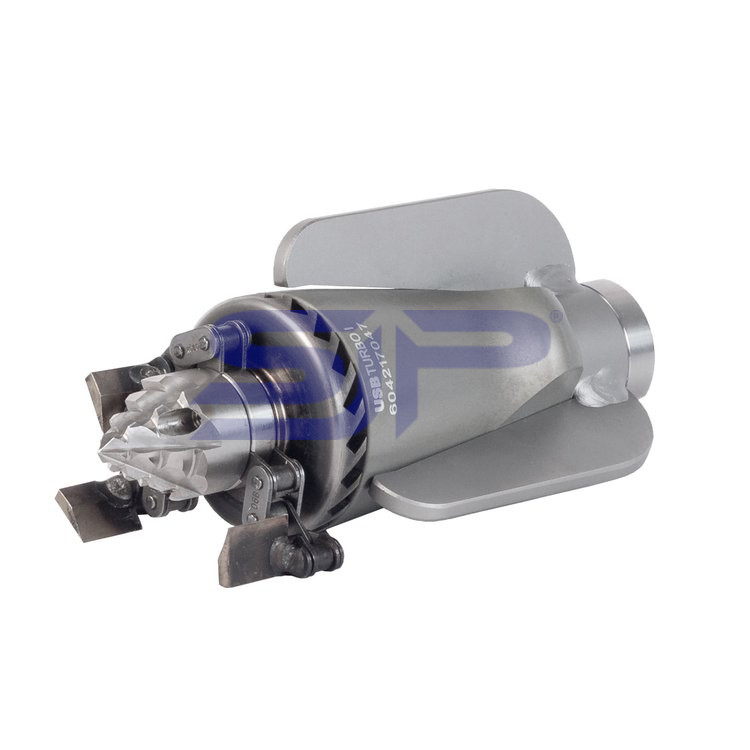

Turbo I Chain Cutter

This innovative, highly reliable and efficient product offers superior drive and thrust. The chain retainer is driven by a high performance turbine thus achieving unsurpassed results in the removal of roots, grease and mineral deposits from 4” – 8” pipelines.

Advantages:

  • Can be used in difficult pipe that has drop joints and offsets etc...
  • Low maintenance (lubrication is not necessary)
  • Easy and fast changeable chain retainers
  • Capable of being used with recycled water
  • Reduced water consumption
  • Reduced operating costs


Applications:

  • For removing extensive root growth and total blockages. Also, for removing obstructions such as calcium, grease, scale and crust.


Technical Specs:

  • Capacity : min. 50 l/min, (11 gpm) at ca. 100 bar (1400 PSI)
  • Material : st. steel
  • WP  : max. 280 bar (4.000 psi)
  • Connection : ¾“ BSPF, ½“BSPF with adapter : 3/8“BSPF & ¼“BSPF
  • Nozzle patern : 3 x M6 pulling . 3 x M6 turbine
  • Medium : Recycling – drinking water
  • Dimensions : ø 60 x 140 mm. (without centralizer)
  • Cleaning area : ø 100 (4") - ø 200 mm. (8")
  • Weight : 1,2 Kg
  • Complete set with ø 100 mm. chain P/N : 2100


  •  Please click here for further accessories and spare parts
  • For a complete Turbo 1 kit, please click here
