Turbo III

Turbo III Model 200 Bar

Product description

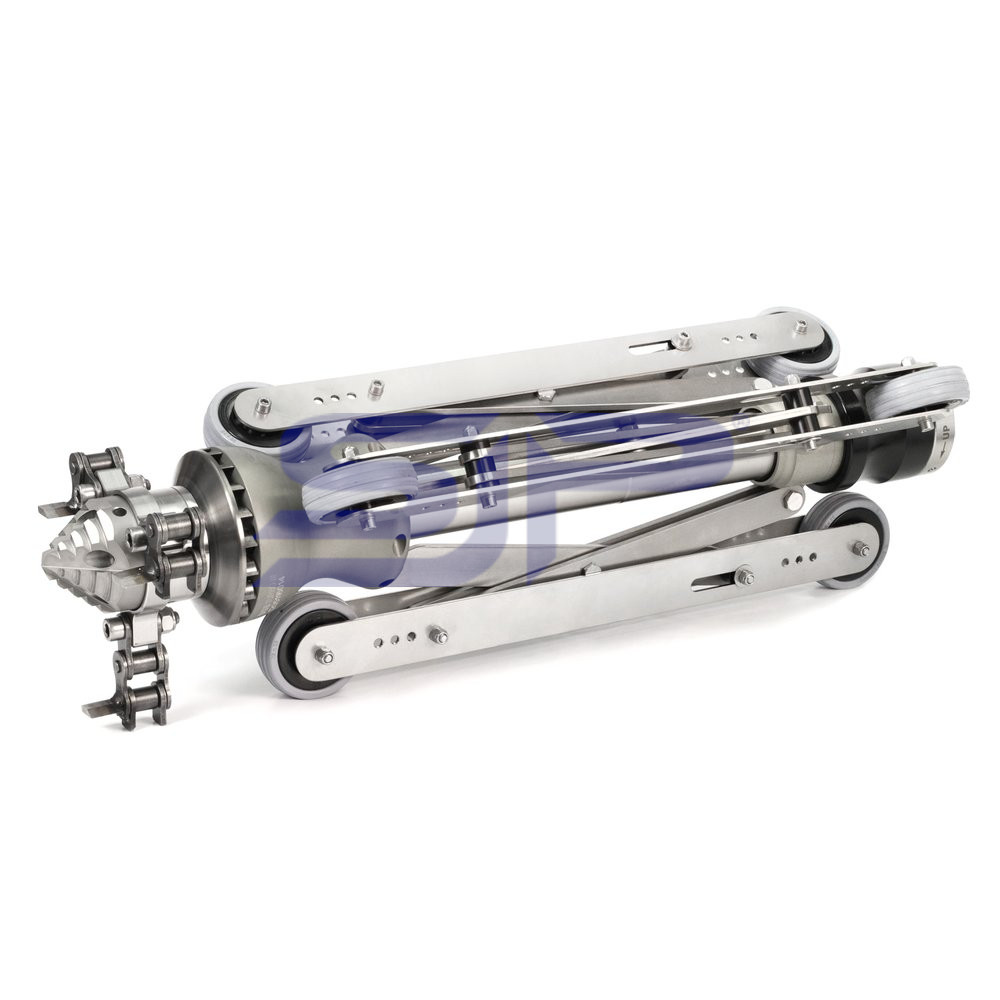

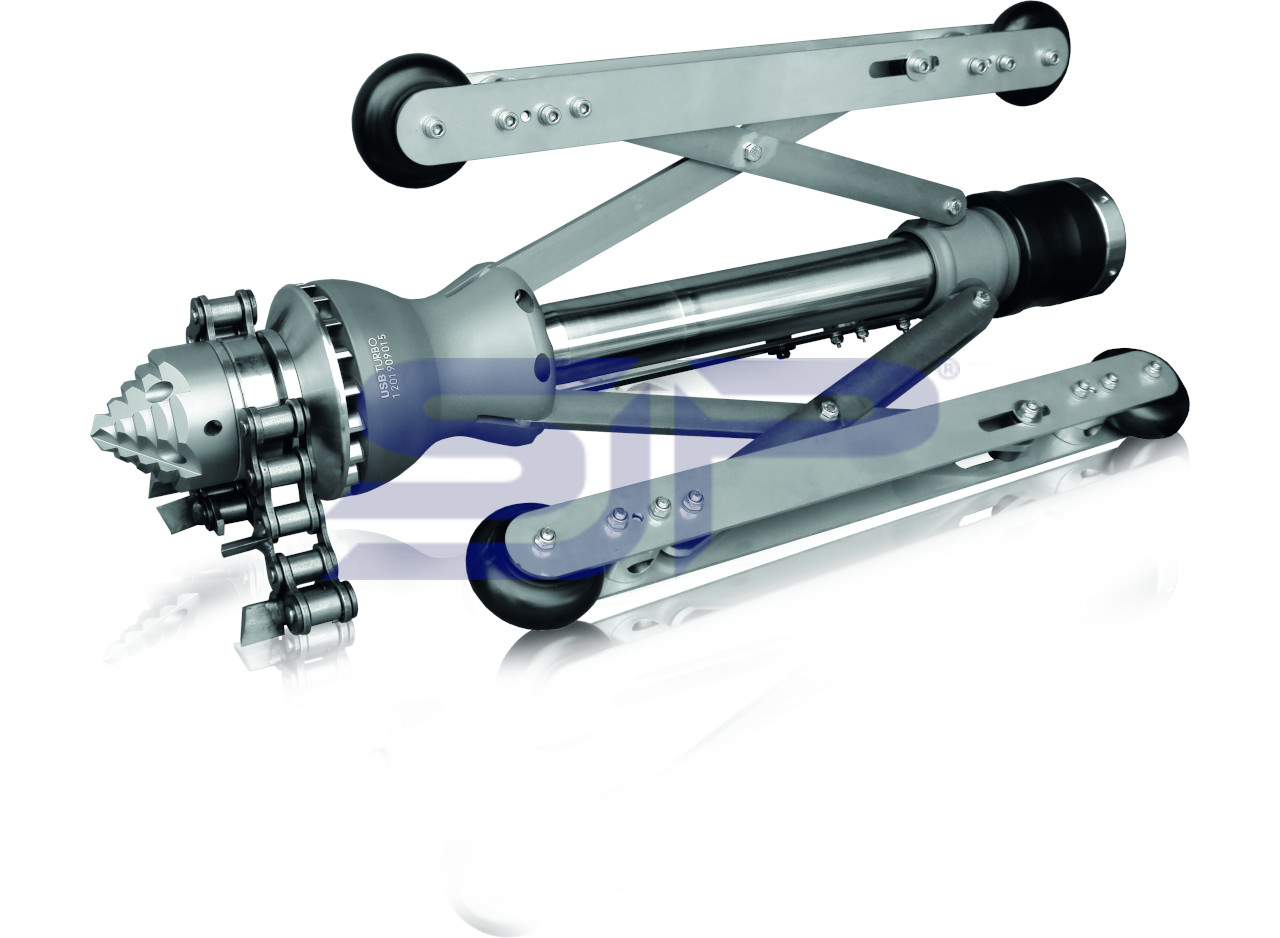

Turbo III Flexible Chain Cutter

This innovative, highly reliable and efficient product offers superior drive and thrust.

The chain retainer is driven by a high performance turbine thus achieving unsurpassed results in the removal of roots, grease and mineral deposits from ø 250 mm. up to ø 500 mm. pipelines. An extension kit paired with a chain retainer wheel allows the cutter to expand up to 1 mtr.

Advantages:

  • Infinitely adjustable skid from ø 250 tot ø 500 mm. ( 10"-29") and can be adjusted in 1/16" increments if necessary
  • Different cutting attachments for different applications makes the Turbo III Flexible versatile
  • Can be used in difficult pipe that has drop joints and offsets etc.
  • Low maintenance (lubrication is not necessary)
  • Easy and fast changeable chain retainers
  • Capable of being used with recycled water
  • Reduced water consumption
  • Reduced operating costs


Applications:

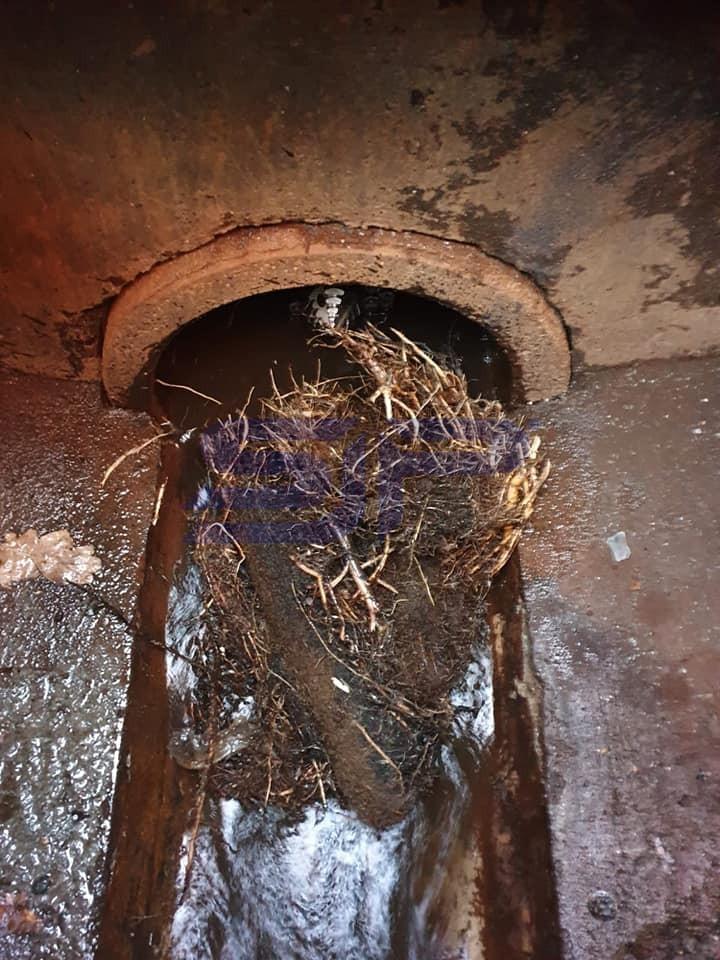

  • For removing extensive root growth and total blockages. Also, for removing obstructions such as calcium, grease, scale and crust.


Technical Specs:

  • Capacity : min. 300 l/min, (67 gpm) at ca. 100 bar (1400 PSI)
  • Material: Aluminum / st. steel
  • Connection : 1¼ ”BSPF - 1"BSPF (with adapter)
  • Medium : Recycling – fresh water
  • Dimensions : ø 235 x 720 mm. (without centralizer)
  • Cleaning area ø 250 (10°) - ø 500 mm. (20") (With extension frame up too ø 1000 mm.)
  • Weight  20 Kg.
  • Complete with chain / centralizer ø 250 mm. P/N : 2300


  • Please click here for further accessories and spare parts
  • Complete set also available in suitcase P/N : 2305


  • Also suitable in egg profiles, please use the special egg profile frame 2606 (that also can be used as a normal extension frame for bigger drains than 500 mm.


On attached picture (PDF file) Turbo III attached for removing concrete in concrete sewer of ø 800 mm. (31”) 1”BSPF 270 ltr./min. (60 gpm) – 200 bar (3Kpsi).
