Universal Fixed Centralizer
350 Bar
Product description
This universal centralizer can be used anywhere for any nozzle or chain flail head.
With this frame the nozzle is positioned as far as possible towards the center of the pipe in order to obtain a better cleaning result all around.
Especially for root cutting and prepairing for relining it is important the pipe is cleaned all around.
Construction is a open frame with round bars, so the frame has little resistnace and the dirt can be easily passed the frame
Frame is made of steel, after welding galvanized.
Technical details :
DN 80
- Dimensions : ø 60 x 70 mm.
- Connection ; ½"BSP
- Weight : 0,4 kg.
- Part number : 22510.01
DN 100
- Dimensions : ø 70 x 80 mm.
- Connection ; ½"BSP
- Weight : 0,5 kg.
- Part number : 22510.02
DN 120
- Dimensions : ø 90 x 100 mm.
- Connection ; ½"BSP
- Weight : 0,9 kg.
- Artikelnummer : 22510.03
DN150 - 200
- Dimensions : ø 135 x 190 mm.
- Connection ; ¾" - 1" - 1¼"BSP
- Weight : 1,7 kg.
- Part number : 22500.02
DN250 - 300
- Dimesnions : ø 225 x 310 mm.
- Connection ; ¾" - 1" - 1¼"BSP
- Weight : 3 kg.
- Part number : 22500.03
DN350 - 400
- Dimensions : ø 315 x 490 mm.
- Connection ; ¾" - 1" - 1¼"BSP
- Weight : 5 kg.
- Part number : 22500.04

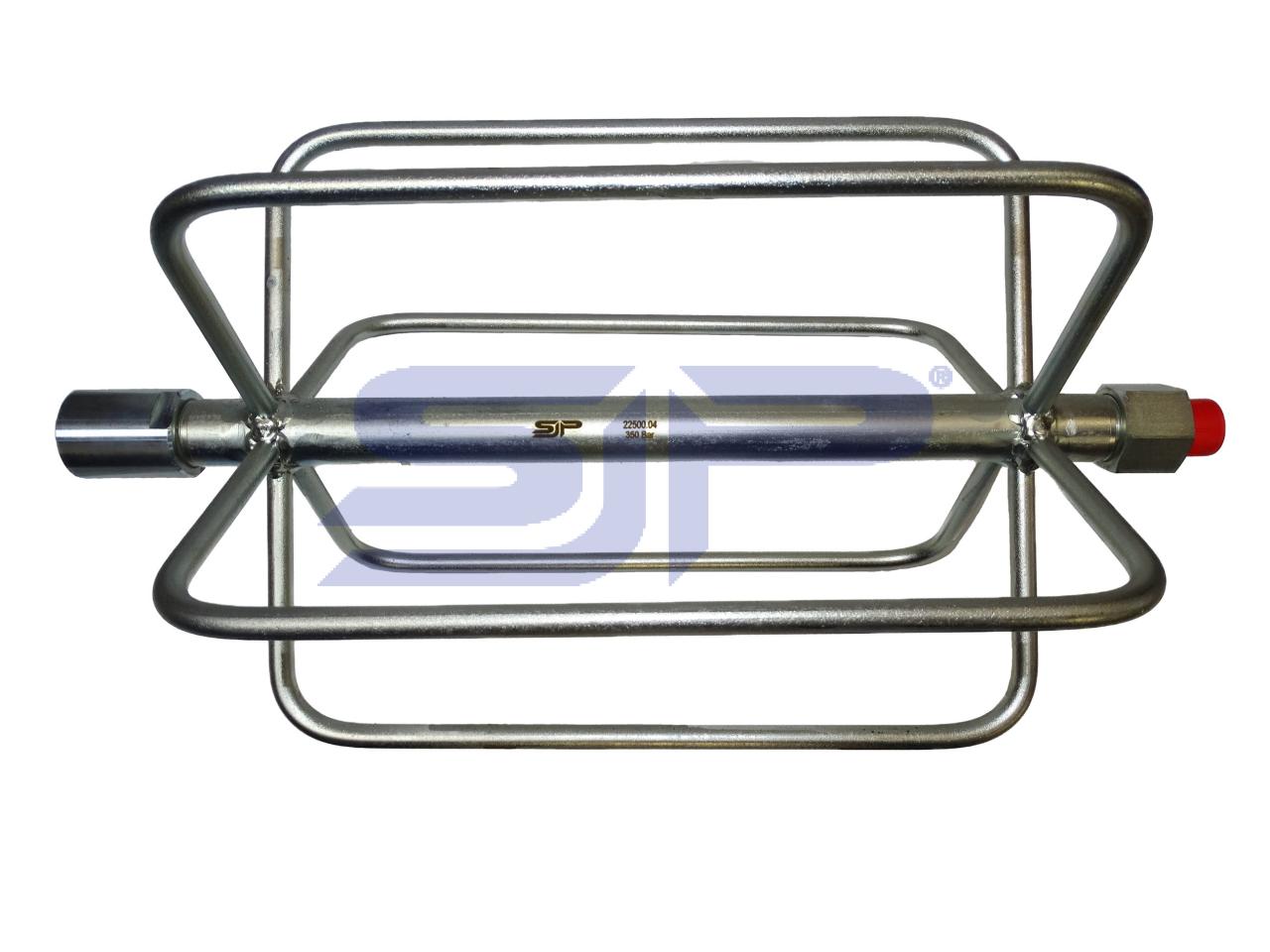

On the picture : 22500.04 ¾"BSPM/F
