Captive Seals

Product description

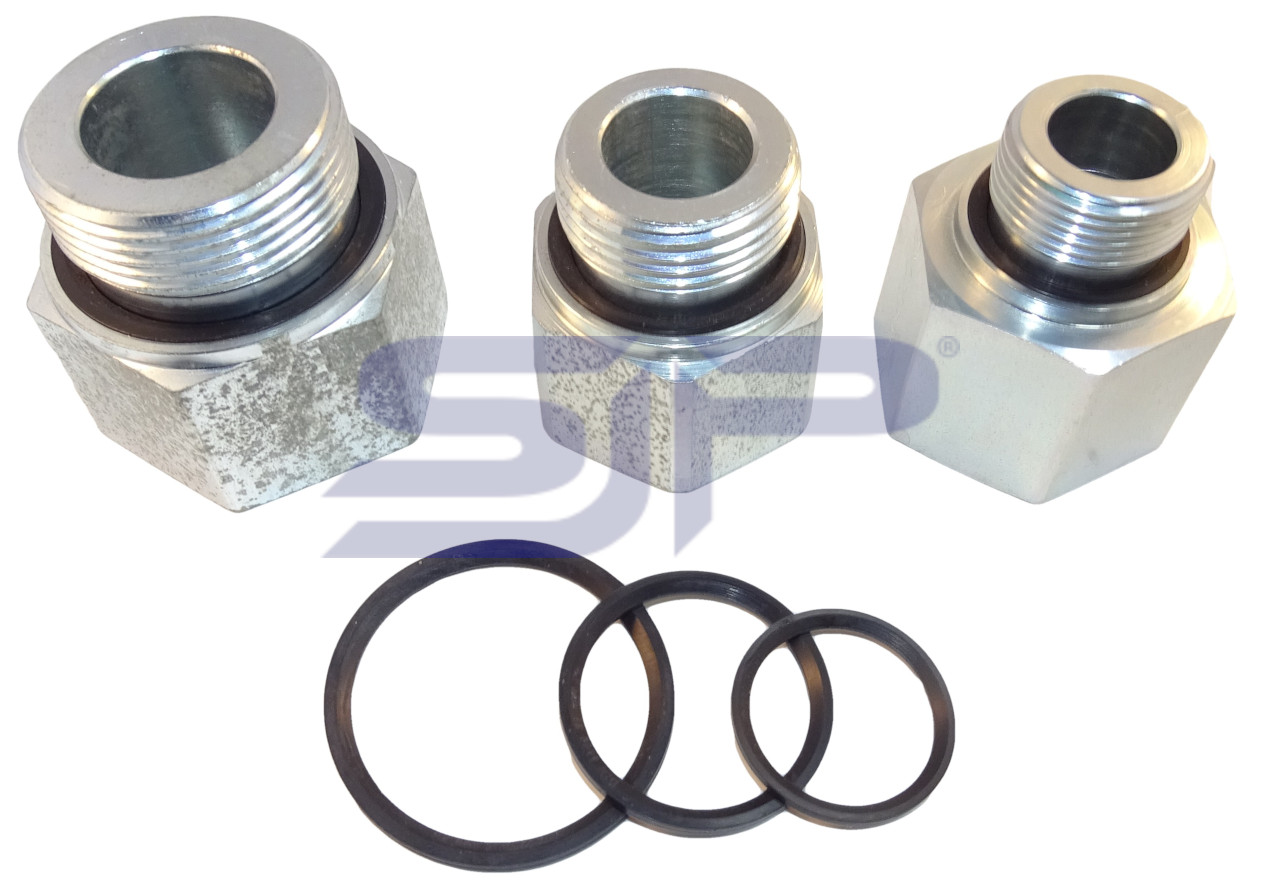

Captive Seals, also called ED Seals, according to DIN 3869. These elastomer seals are used as axial static seals for threaded ports and stud ends. The cross-section remains practically constant even under high pressure.

Material : NBR 85

Temperature : -30°C - + 105°C

  • ½"BSP ø 23,9 x ø 18,5 x 1,5 mm. P/N : DIN3869.21
  • ¾"BSP ø 29,2 x ø 23,9 x 1,5 mm. P/N : DIN3869.27
  • 1"BSP ø 35,7 x ø 29,7 x 2 mm. P/N : DIN3869.33
  • 1¼"BSP ø 45,8 x ø 38,8 x 2 mm. P/N : DIN3869.21
