Burst disc holder

1400 Bar

Product description

A Rupture (Burst) Disc is an essential component in any system which contains a positive displacement pump.

It provides protection against excessive pressure building up in the water blasting equipment connected to a pump.

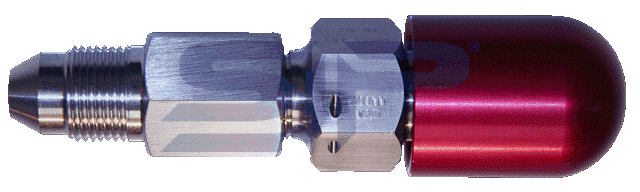

The APS holder is a rugged, compact Rupture (Burst) Disc Holder, which offers safety features to prevent the use of coins or other disc substitutes, which may prove dangerous to operators or cause damage to the blasting equipment.

The domed deflector minimizes spray in the event of a disc rupturing and the disc holder body is simple to remove for replacing a disc with the concave side facing pressure side

  • Connection: 9/16"MP male
  • Part Number: 35-008-010

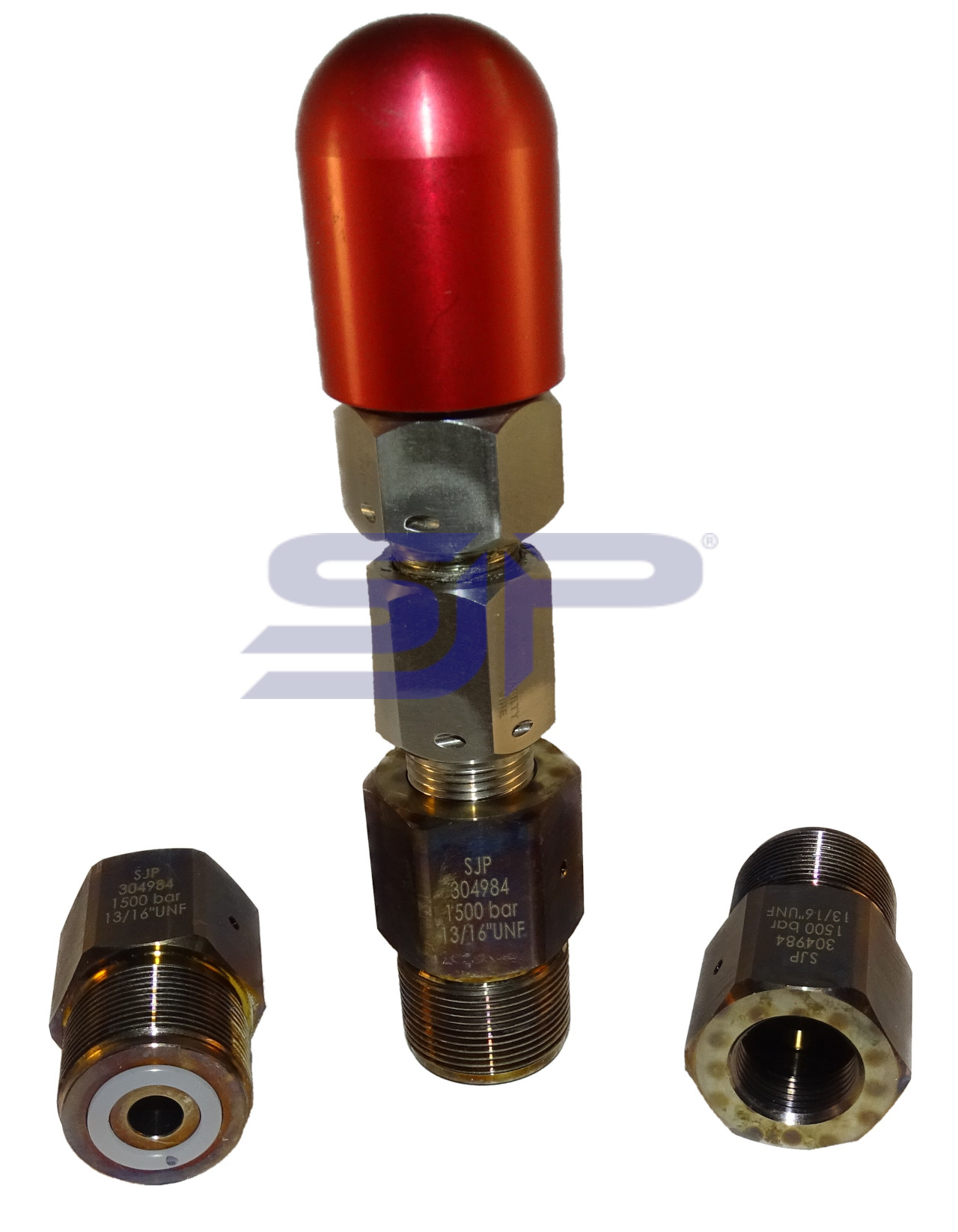

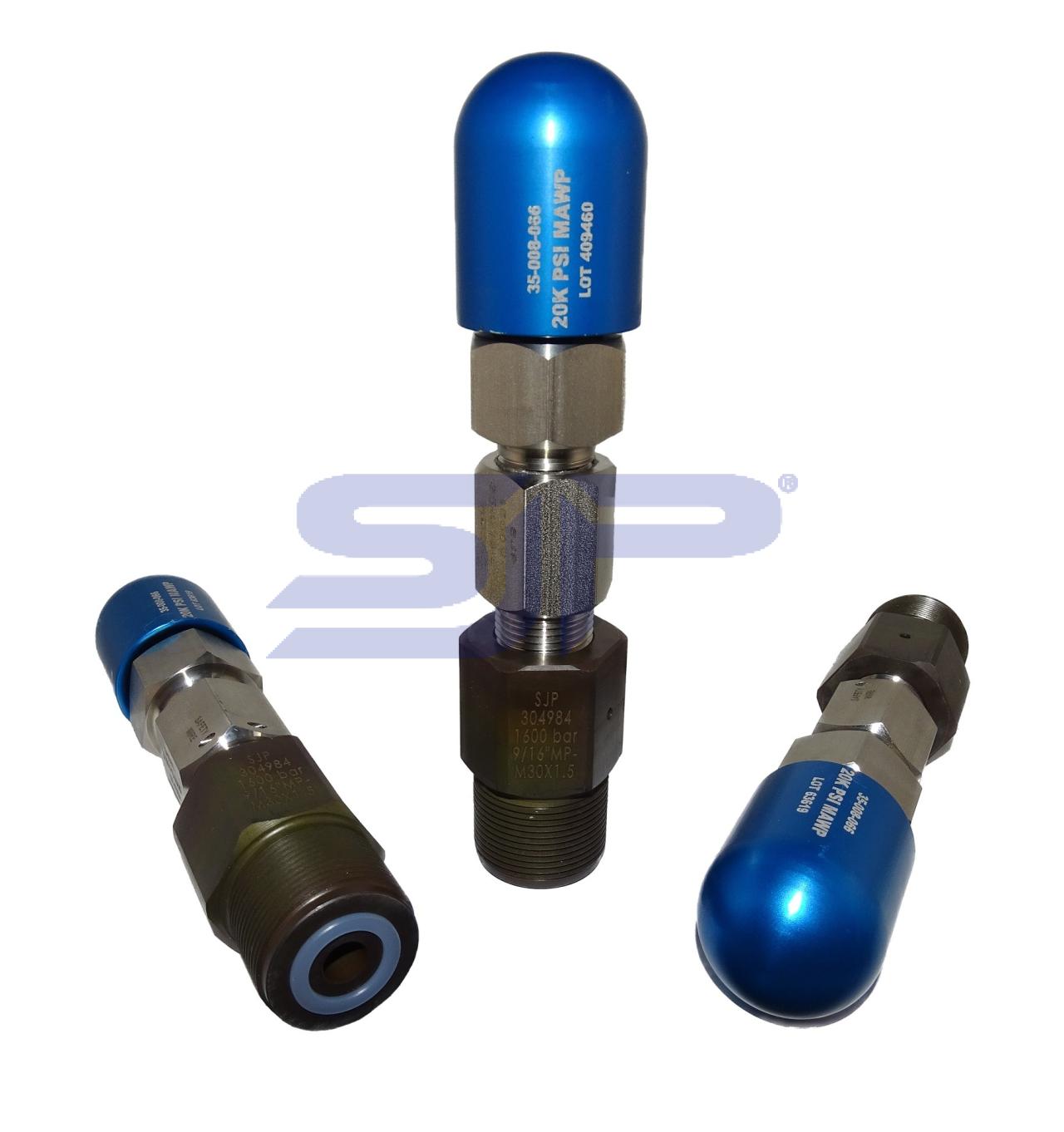

  • To mount Rupture disc holder on your Hammelmann© pump (M30x1,5) , please use adapter 304984
  • To mount Rupture disc holder on your Kamat© or Woma© pump (M22x1,5) , please use adapter 304130
