SW060

200 Bar

Product description

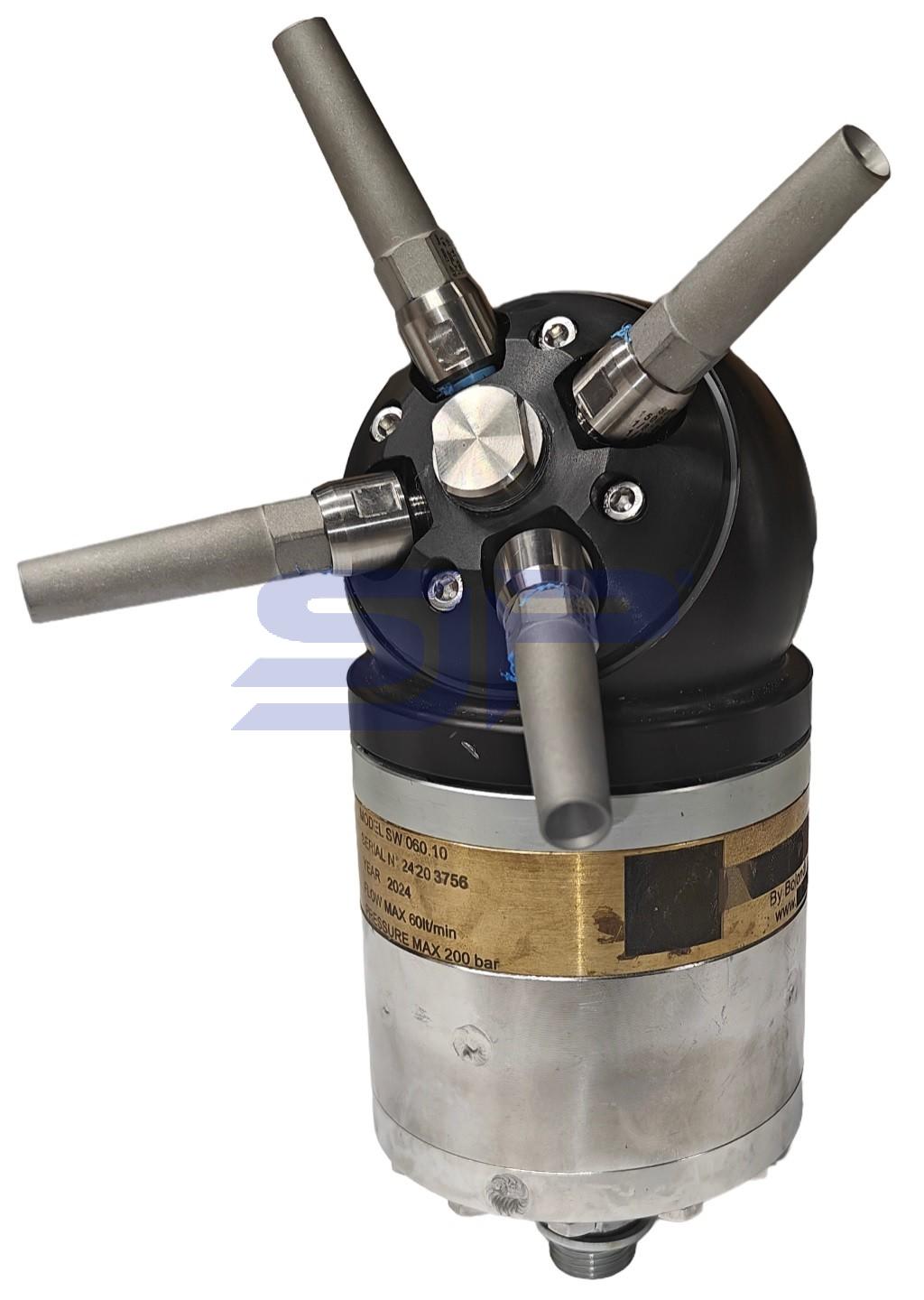

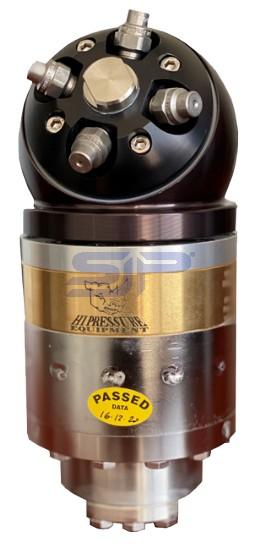

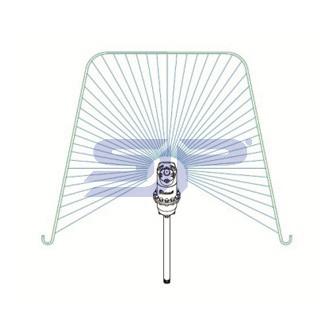

The SW060 special design for 240° cleaning of standard bins

Water driven tank cleaning head

No oil in the head, so suitable for food and chemical industry.

  • Flow capacity : 15 - 60 ltr./min.
  • Max. watertemp. : 90°C
  • Min. tank opening : ø 100 mm.
  • Dimensions : ø 100 x 218 mm.
  • Inlet connection : ½"BSPF
  • Outlet connection : 4 x ⅛"NPTF
  • Cleaning cyclus 15 - 30 seconds
  • Material : st. st. 316 - brass
  • Weight : 5,5 kg.
  • Part number : SW060A-CF

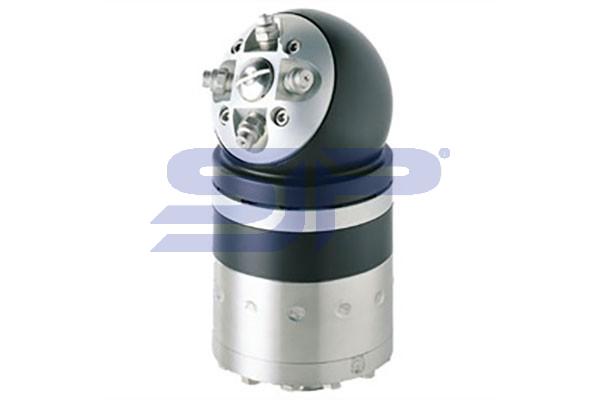

  • Dimensions : ø 100 x 196 m.
  • Material : st. st. 316 - aluminum
  • Weight : 5,5 kg.
  • Part number : SW060A-SF


  • Dimensions : ø 100 x 196 m.
  • Material : aluminum
  • Weight : 3,75 kg.
  • Part number : SW060A-LC


Nozzles : type 800RJ
