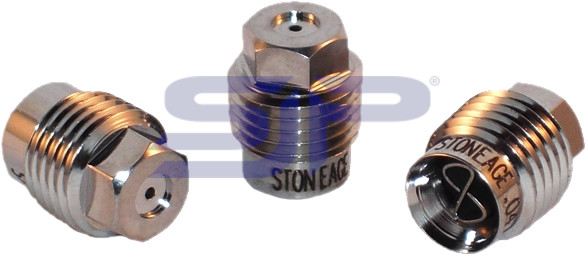

APF4 Attack nozzles

1000 Bar
APF4 Attack nozzles

Product description

Attack® Tips are one of the best quality, long lasting tips, this type is special for flush (F) mounting

The flow straightener (installed in the most Attack nozzles) corrects power-robbing turbulence, ensuring excellent jetting results

  • ø .018" (ø 0,46 mm.) P/N : APF4.018
  • ø .020" (ø 0,51 mm.) P/N : APF4.020
  • ø .022" (ø 0,56 mm.) P/N : APF4.022
  • ø .024" (ø 0,61 mm.) P/N : APF4.024
  • ø .026" (ø 0,65 mm.) P/N : APF4.026
  • ø .029" (ø 0,74 mm.) P/N : APF4.029
  • ø .032" (ø 0,81 mm.) P/N : APF4.032
  • ø .035" (ø 0,89 mm.) P/N : APF4.035
  • ø .038" (ø 0,97 mm.) P/N : APF4.038
  • ø .042" (ø 1,07 mm.) P/N : APF4.042
  • ø .047" (ø 1,19 mm.) P/N : APF4.047
  • ø .052" (ø 1,32 mm.) P/N : APF4.052
  • ø .057" (ø 1,45 mm.) P/N : APF4.057
  • ø .063" (ø 1,60 mm.) P/N : APF4.063
  • ø .069" (ø 1,78 mm.) P/N : APF4.069
  • ø .075" (ø 1,91 mm.) P/N : APF4.075
  • ø .082" (ø 2,08 mm.) P/N : APF4.082
  • ø .090" (ø 2,29 mm.) P/N : APF4.090
  • ø .098" (ø 2,48 mm.) P/N : APF4.098
  • ø .106" (ø 2,69 mm.) P/N : APF4.106
  • ø .115" (ø 2,92 mm.) P/N : APF4.115
  • ø .125" (ø 3,18 mm.) P/N : APF4.125
  • ø .135" (ø 3,43 mm.) P/N : APF4.135
  • ø .145" (ø 3,68 mm.) P/N : APF4.145
  • ø .155" (ø 3,94 mm.) P/N : APF4.155
  • ø .165" (ø 4,19 mm.) P/N : APF4.165


To calculate the correct nozzle you can use attached Nozzle chart, for example : 1100 bar - 18,5 ltr. nozzle P/N APF4.038

Please note, this chart is approximate, so it can be a little different in practice
