MMS Nozzles
1000 Bar
Product description
The stainless steel Male Machine Screw (MMS) nozzles come in pressure ratings to match your flex or rigid lances with female machine screw threads (UNF - UNC) and swivelnut hose threads BSP - M24x1,5.
The compact 1000 + 1500 bar - MMS has a special slimline design that assures that the outside diameter matches the OD of the lance, and have wrench flats for easy installation. All offer many options for 3 or 4 rows of precision drilled orifices.
Please specify drilling pattern, pressure and flow when ordering.
- 12-28 UNFM ø 6,35 x 27 mm. P/N : 15-008-001
- ¼"-28UNFM ø 7,9 x 31,8 P/N : 15-008-002
- M7x1M ø 9,5 x 37 mm. P/N : 15-208-003
- 5/16"-24 UNFM ø 10,3 x 36,5 mm. P/N : 15-008-003
- 5/16"-24 UNFM + sealeind ø 10,3 x 36,5 mm. P/N : 15-108-003
- ⅜“-16UNCM ø 14,3 x 44,5 mm. P/N : 15-008-005
- ½"-20UNFM ø 17,5 x 47,6 mm. P/N : 15-008-006
- M14x1,5M ø 17 x 39 mm. P/N : 15-008-107
- M18x1,5M ø 27 x 51 mm. P/N : 306001 (1100 Bar)
- ½"BSPM ø 22,2 x 50,8 mm. P/N : 15-008-106
- M22x1,5M ø 22,2 x 50,8 mm. P/N: 15-008-008
- M24x1,5M ø 25,4 x 51 mm. P/N : 15-008-007 (1500 Bar)
By opening "document" you will find nozzle drill pattern, so if you order M24x1,5M nozzle with 1 x front nozzle and 6 x 45° pulling ,you order : 15-008-007 1@A(0°)/6@D(135°) + flow (ltr./min.) and pressure (bar)

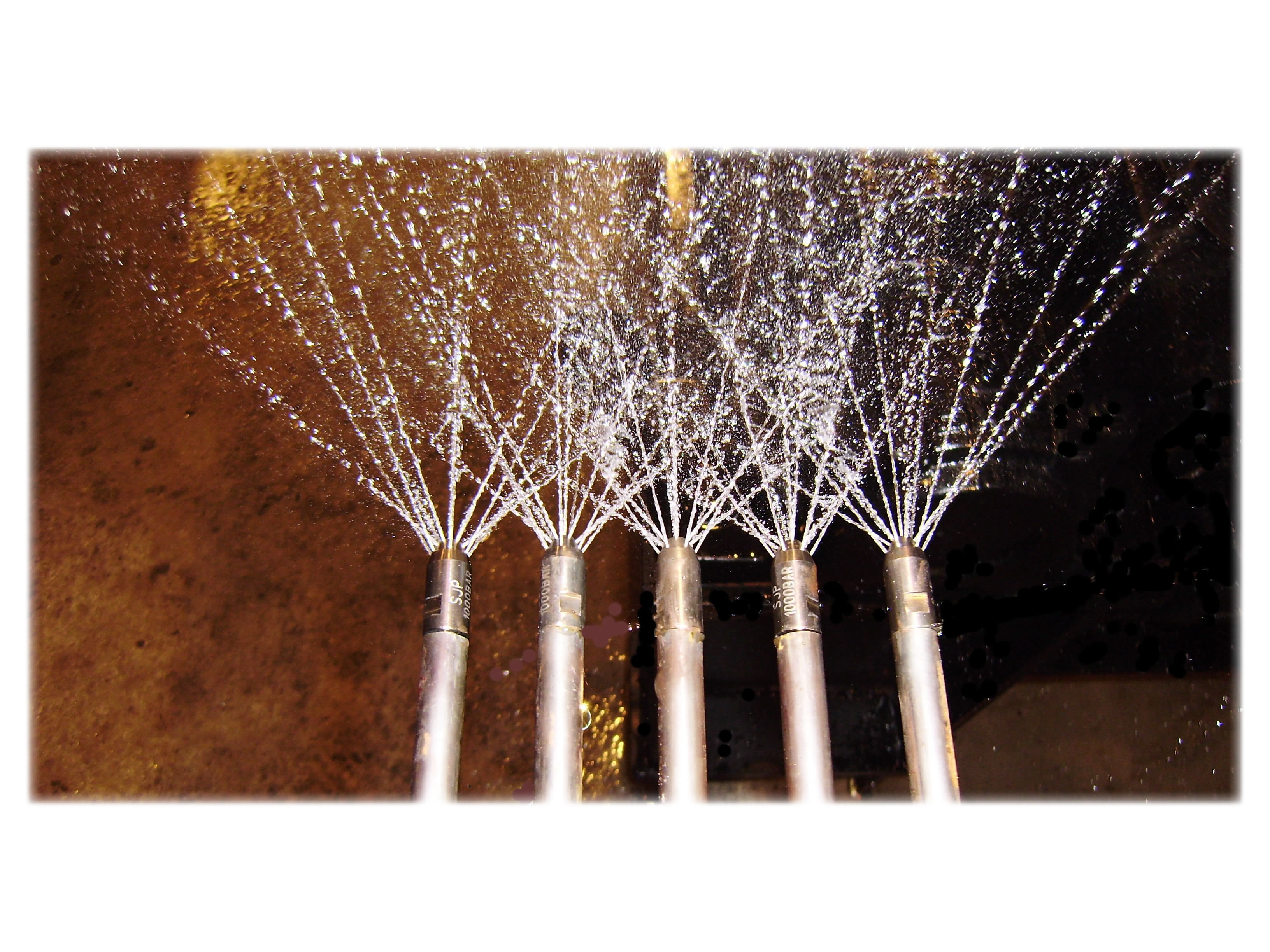

On attached PDF file you find more technical details and also for the IBC lance machine we put an extra picture for you to see the nozzle patern very clear.
