MP Standard Nozzles
1500 Bar
Product description
The economical stainless steel MP Standard style nozzles come in pressure ratings to match your flex or rigid lances.

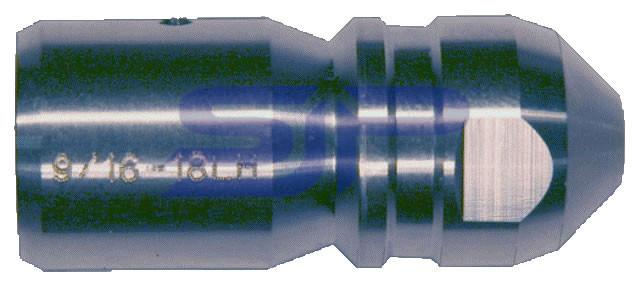

The 1500 Bar-MP Standard Nozzle is designed to go with lances with either right or left hand Autoclave-type medium pressure threads, a special seating design that eliminates the requirement for gland nuts and collars, wrench flats for easy installation, and offer a wide range of options for precision drilled orifices.
Left hand MP Thread :
- ¼"-28 UNF LHF ø 9,5 x 31,8 P/N : 16-020-004
- ⅜"-24 UNF LHF ø 12,7 x 38,1 mm. P/N : 16-020-005
- 9/16"-18 UNF LHF ø 15,9 x 41,3 mm. P/N : 16-020-006
Right hand MP Thread :
- ¼"-28 UNFF ø 9,5 x 31,8 P/N : 16-020-001
- ⅜"-24 UNFF ø 12,7 x 38,1 mm. P/N : 16-020-002
- 9/16"-18 UNFF ø 15,9 x 41,3 mm. P/N : 16-020-003
By opening "document" you will find nozzle drill pattern, so if you order ¼"UNF LH nozzle with 1 x front nozzle and 6 x 45° pulling ,you order : 16-020-004 1@A(0°)/6@D(135°) + flow (ltr./min.) and pressure (bar)
