SJP Style nozzles

1600 Bar

Product description

Very high quality compact tube cleaning nozzle.

With M4 high performance inserts, the nozzle configuration is the best you can get. Available, M24x1,5male (hose) and ¼"BSP female connection.

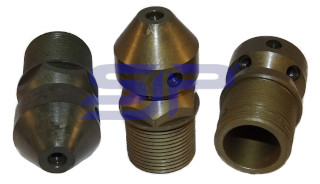

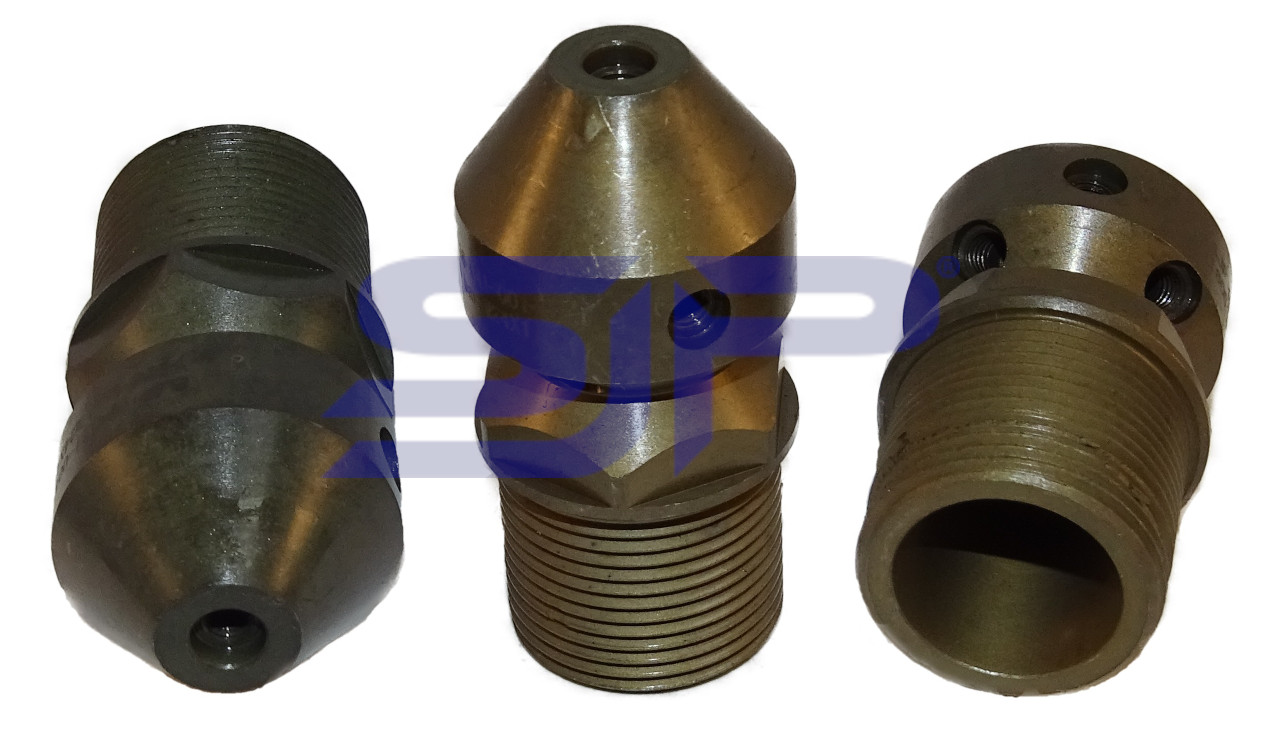

  • M24x1,5M ø 27 x 47,5 mm, M4 Pattern : 1@A(0°)/2@C(90°)/4@D(135°) P/N : 16-041-001
  • M24x1,5M ø 27 x 61 mm, M4 Pattern : 2@A(15°)/4@B(45°)/8@C(90°)/8@D(135°) P/N : 16-041-002-S

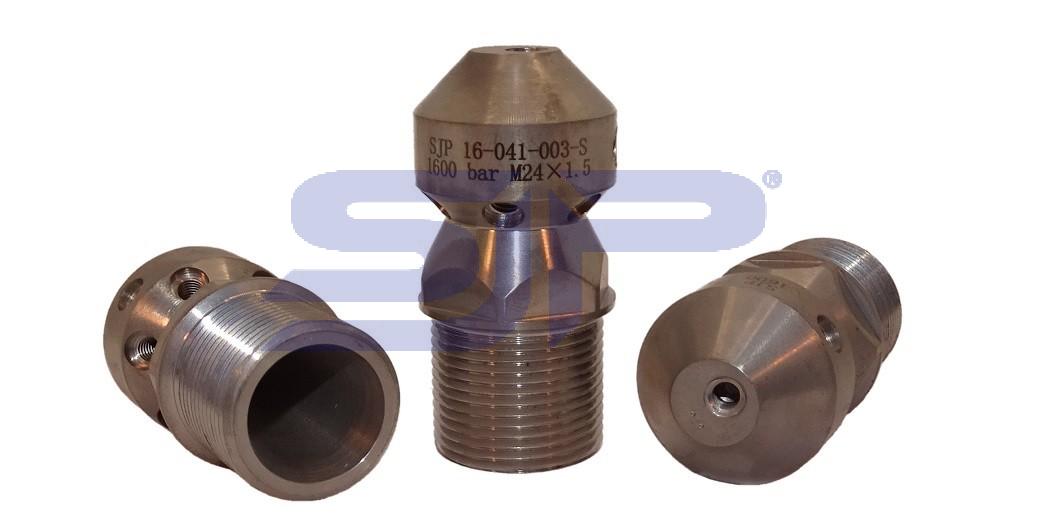

  • M24x1,5M ø 27 x 55 mm, M4 Pattern : 1@A(15°)/2@C(90°)/6@D(135°) P/N : 16-041-003
  • M24x1,5M ø 27 x 54 mm, M4 Pattern : 10@C(90°) P/N : 16-041-004


Check attached PDF file for M4 Pattern
