Pump unit ⅛"-¼"BSP-M24

1000 Bar

Product description

SPJ-1-SK-1000

Nozzle kits are value priced assortments of nozzles which save 15 - 20% compared to purchasing items individually.

Like all of our nozzles, the kits are custom made (drilled) to match your jetting equipment’s flow and pressure specifications.

The result is optimized and fast cleaning performance from your jetting unit.

Each kit is package in a convenient and rugged cut out storage case, with the right tools for the right job, so for mounting the nozzles on the hose, ore mounting hoses together, for each application the right tool in the kit.

This kit is special design for standard HP unit who is equiped with own tools so not needed in this nozzle kit, with 1/8”BSP - 1/4"BSP & M24x1,5 connection.

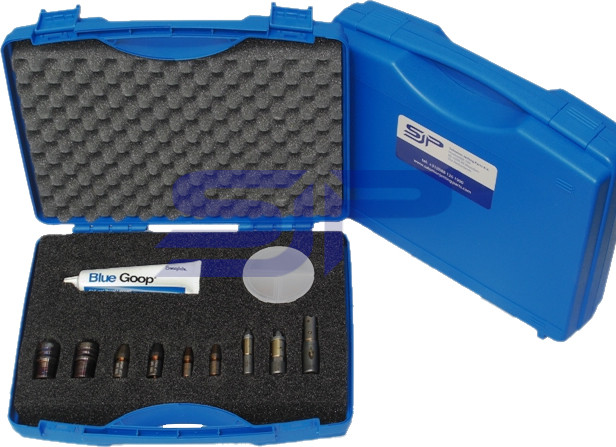

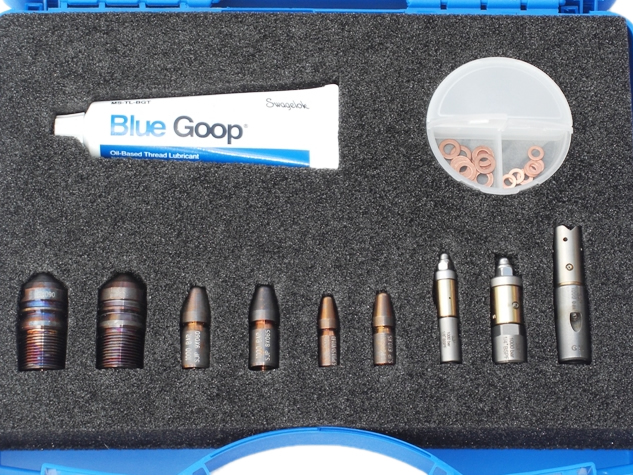

Kit consist:

  • Blue plastic suitcase 340 x 260 x 85 mm.
  • 1 x Blue Gloop 2fl oz. tube resist galling
  • 1 x ⅛”BSP Penetrator nozzle only 45° pulling
  • 1 x ⅛”BSP Penetrator nozzle 6 x 45° pulling 1 x front
  • 1 x ¼"BSP Penetrator nozzle only 45° pulling
  • 1 x ¼"BSP Penetrator nozzle 45° pulling 1 x front
  • 1 x M24x1,5 Male MMS nozzle only 45° pulling
  • 1 x M24x1,5 Male MMS nozzle 45° pulling 1 x front
  • 1 x Front Radial spin jet nozzle FR18V with 2 x build in pulling nozzles for unblocking tubes
  • 10 x copper seal ring⅛"BSP Female
  • 10 x copper seal ring ¼”BSP Female
  • 1 x little box for copper rings
