Sewer drill nozzles

350 Bar

Product description

Sewer drill nozzle (made of st.st. 303 + heat treatment and burnished) is a front rotating nozzle with ceramic insert, special design for removing blockage in the drain.

The rotating frontjet produced a multiple impact energy. This nozzle consume 25% less water than standard nozzles.

Sewer drill also called : Aquadrill - Pathfinder - Rotodrill - Tornado - Twister.

½" standard version :

  • Dimensions : ø 40 x 58 mm.
  • Connection : ½"BSPF
  • Weight : 0,35 kg.
  • Nozzles 6 x M4 ceramic 20° 1 x ø 1,2 spinning front 18°
  • Min. flow. 40 ltr./min
  • cleaning area ø 50 - ø 200 mm.
  • Part number ; 3-617011.120

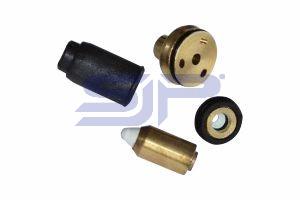

  • Part number repair kit : 0624-J012



  • Dimensions : ø 40 x 58 mm.
  • Connection : ½"BSPF
  • Weight : 0,35 kg.
  • Nozzles 6 x M4 ceramic 20° 1 x ø 1,4 mm spinning front 18°
  • Min. flow. 60 ltr./min
  • cleaning area ø 50 - ø 200 mm.
  • Part number ; 3-617011.140
  • Part number repair kit : 0624-J014

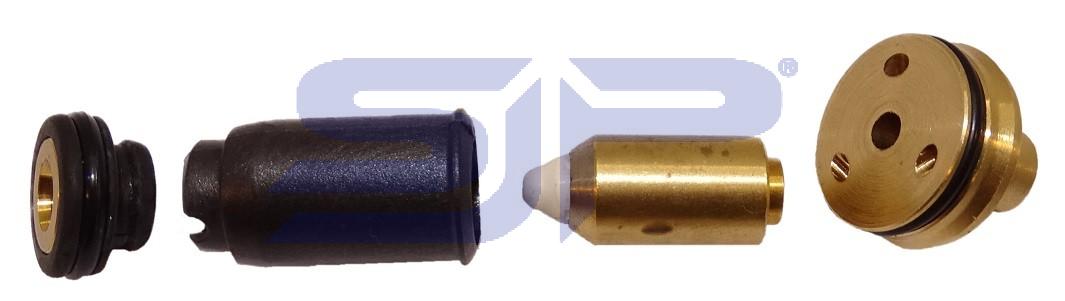

Tool disassemble repair kit, part number 0624-01 click here for more information

Ceramic nozzle inserts M4 click here

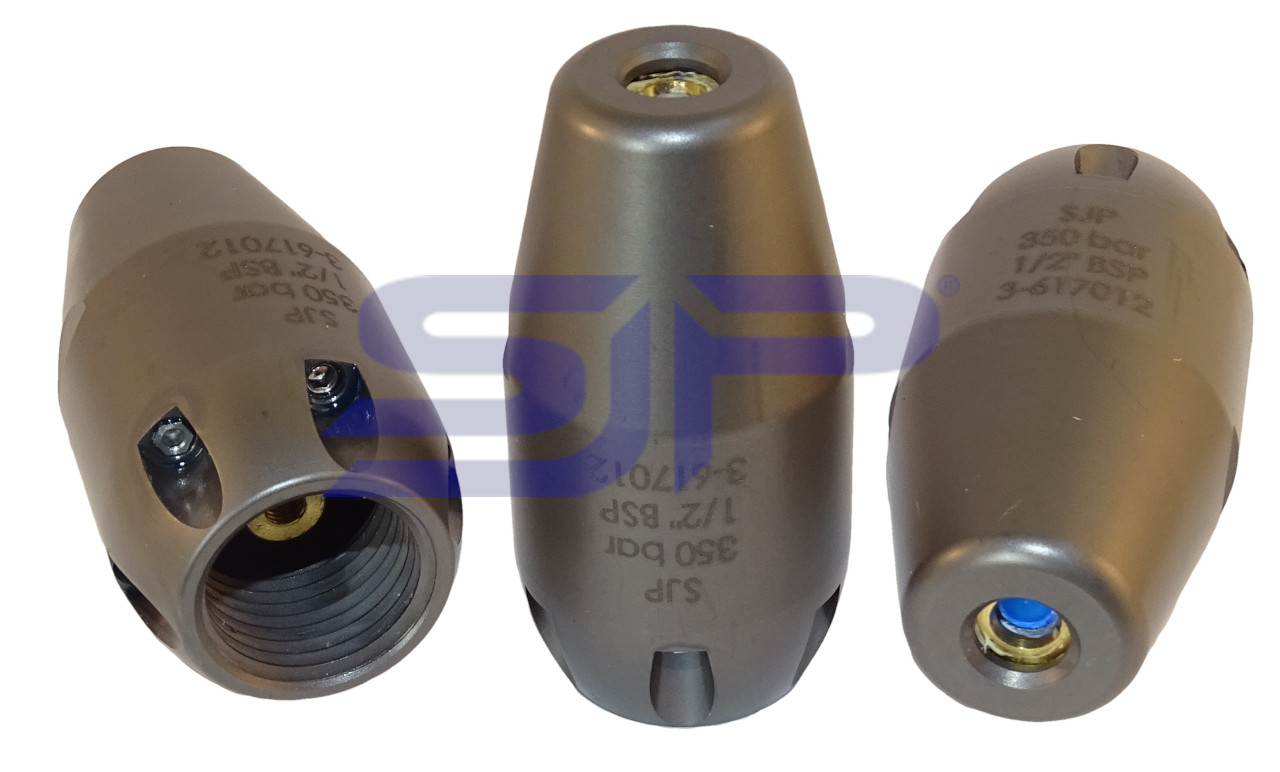

½" compact version :

  • Dimensions : ø 32 x 63 mm.
  • Connection : ½"BSPF
  • Weight : 0,25 kg.
  • Nozzles 6 x M4 ceramic 7° 1 x ø 1,2 spinning front 18°
  • Min. flow. 25 ltr./min
  • cleaning area ø 50 - ø 150 mm.
  • Part number ; 3-617012.120
  • Part number repair kit : 0624-J012



  • Dimensions : ø 32 x 63 mm.
  • Connection : ½"BSPF
  • Weight : 0,25 kg.
  • Nozzles 6 x M4 ceramic 7° 1 x ø 1,4 mm spinning front 18°
  • Min. flow. 30 ltr./min
  • cleaning area ø 50 - ø 150 mm.
  • Part number ; 3-617012.140
  • Part number repair kit : 0624-J014

Tool disassemble repair kit, part number 0624-01 click here for more information

Ceramic nozzle inserts M4 click here

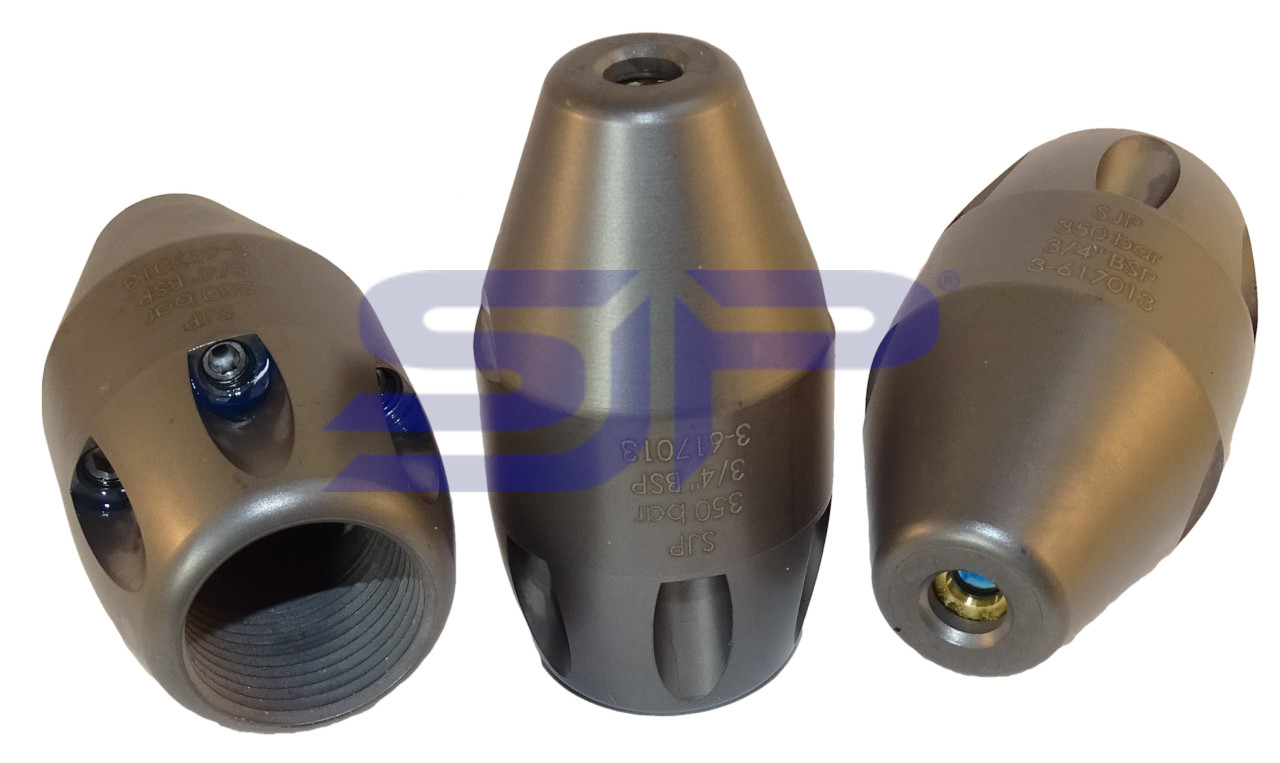

¾" version :

  • Dimensions : ø 40 x 75 mm.
  • Connection : ¾"BSPF
  • Weight : 0,56 kg.
  • Nozzles 6 x M6 ceramic 12° 1 x ø 1,2 spinning front 18°
  • Min. flow. 75 ltr./min
  • cleaning area ø 70 - ø 200 mm.
  • Part number ; 3-617013.040
  • Part number repair kit : 0624-J012



  • Dimensions : ø 40 x 75 mm.
  • Connection : ¾"BSPF
  • Weight : 0,56 kg.
  • Nozzles 6 x M6 ceramic 12° 1 x ø 1,4 mm spinning front 18°
  • Min. flow. 90 ltr./min
  • cleaning area ø 70 - ø 200 mm.
  • Part number ; 3-617013.060
  • Part number repair kit : 0624-J014

Tool disassemble repair kit, part number 0624-01 click here for more information

Ceramic nozzle inserts M6 click here

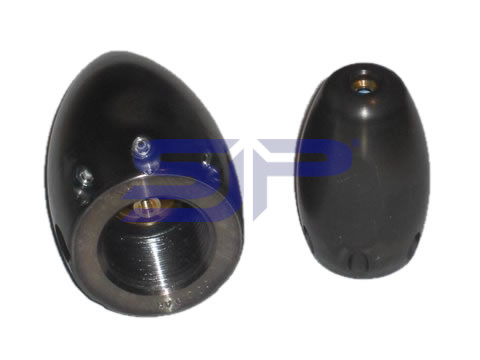

1"version :

  • Dimensions : ø 50 x 95 mm.
  • Connection : 1"BSPF
  • Weight : 0,90 kg.
  • Nozzles 8 x M6 ceramic 20° 1 x ø 2,1mm spinning front 18°
  • Min. flow. 120 ltr./min
  • Cleaning area : ø 100 - ø 250 mm.
  • Part number ; 0625-0021
  • Part number repair kit : 0625-J021



  • Dimensions : ø 50 x 95 mm.
  • Connection : 1"BSPF
  • Weight : 0,90 kg.
  • Nozzles 8 x M6 ceramic 20° 1 x ø 2,6 spinning front 18°
  • Min. flow. 140 ltr./min
  • Cleaning area : ø 100 - ø 250 mm.
  • Part number ; 0625-0000
  • Part number repair kit : 0625-J026

Ceramic nozzle inserts click here
