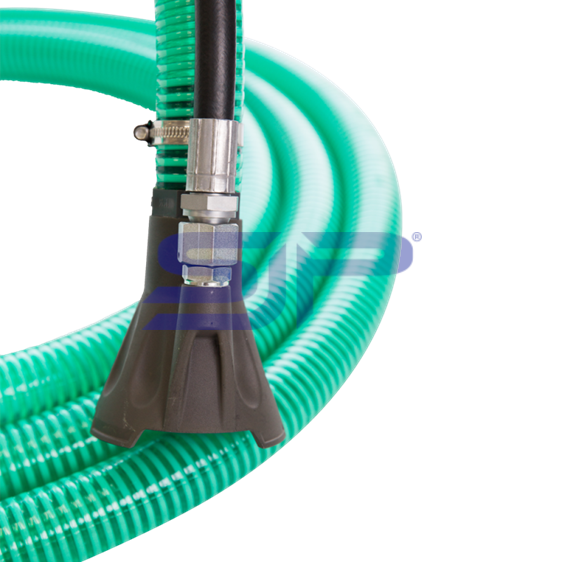

Suction Venturi M18x1,5 male hose connection
200 Bar
Product description

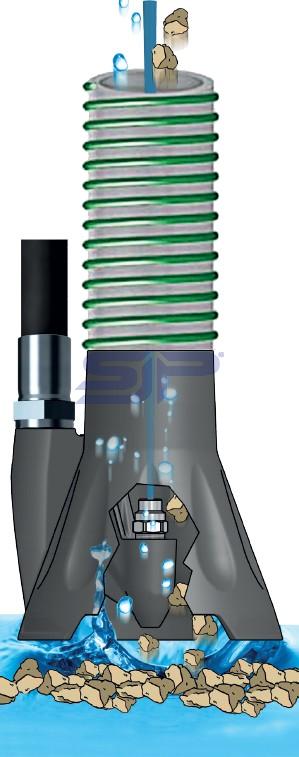

Extracts stones (up to 20 mm), mud, dirt, sand, algae & sediment. Operating pressure min. 80 bar at 7 l/min. Suction power of approx. 8,000 to 18,000 l/h. Spiral hose: DN 38 mm, length 5 mtr.
Sample : 150 bar - 12 ltr./min., capacity ± 220 ltr./min. = ± 13.000 ltr./h.
Nozzle Size :
- 040 Part number : 5455340
- 045 Part number : 5455345
- 050 Part number : 5455350
- 055 Part number : 5455355
- 060 Part number : 5455360
- 065 Part number : 5455365
- 070 Part number : 5455370
- 080 Part number : 5455380

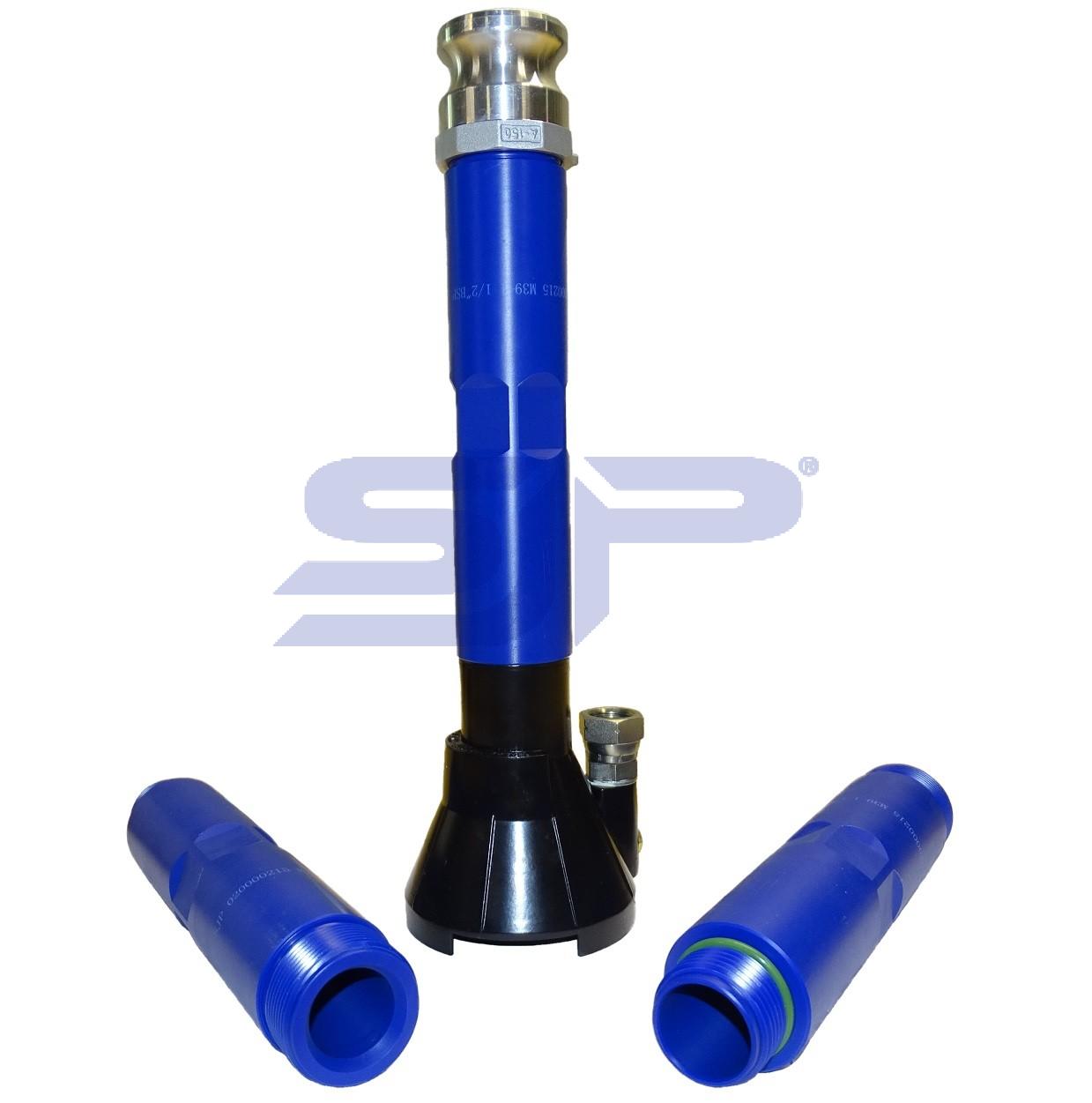

If you use a Camlock system on the vacuum hose, you can use the 250 mm. long reducing tube 020000215

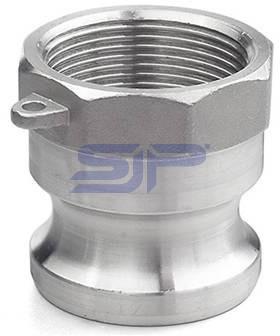

- Coupling 1½"BSPF Aluminium Camlock Type A male : Part number : 4620004
- Coupling 1½"BSPF Aluminium Stainless Steel Type A male : Part number : 4620308
