The BlastBag®

The BlastBag®

Product description

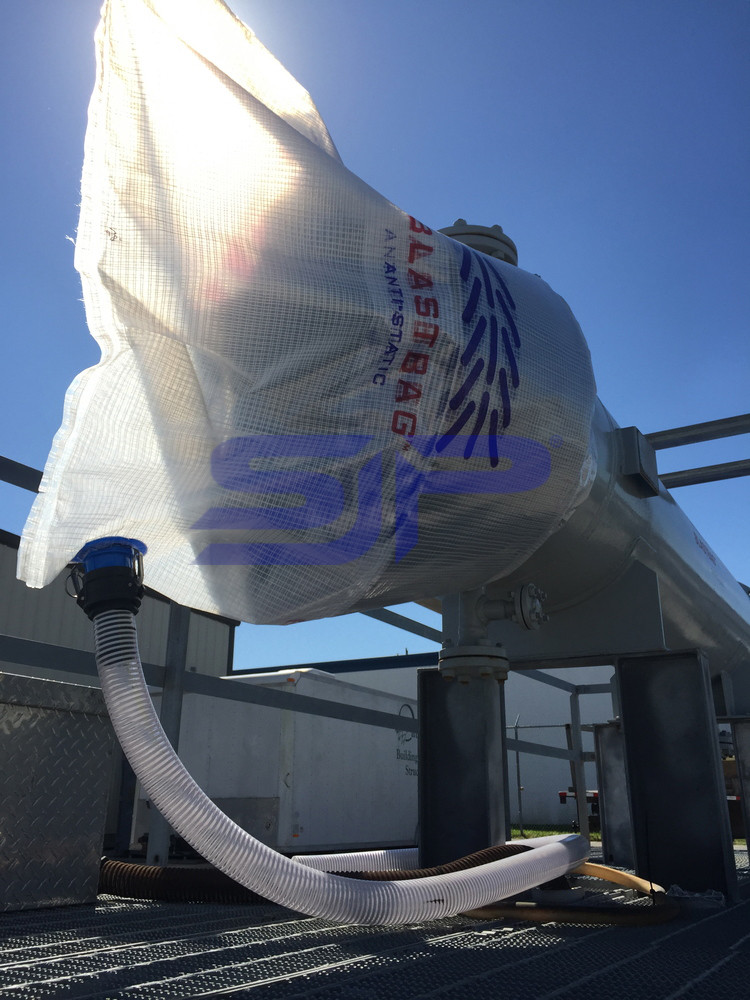

The BlastBag® is a patented containment device designed to contain the effluent from the cleaning of heat exchangers and piping.

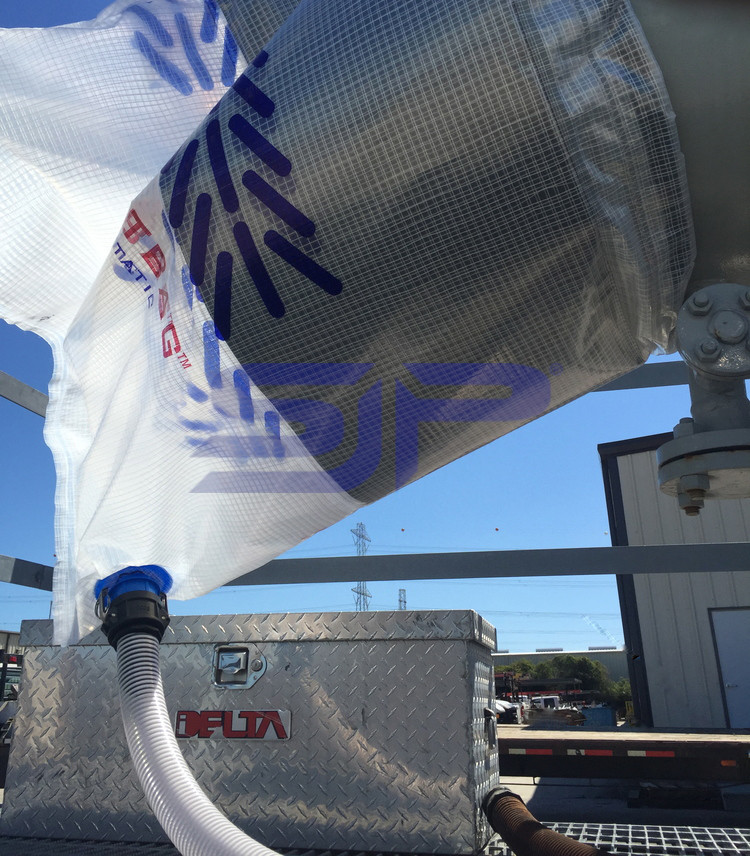

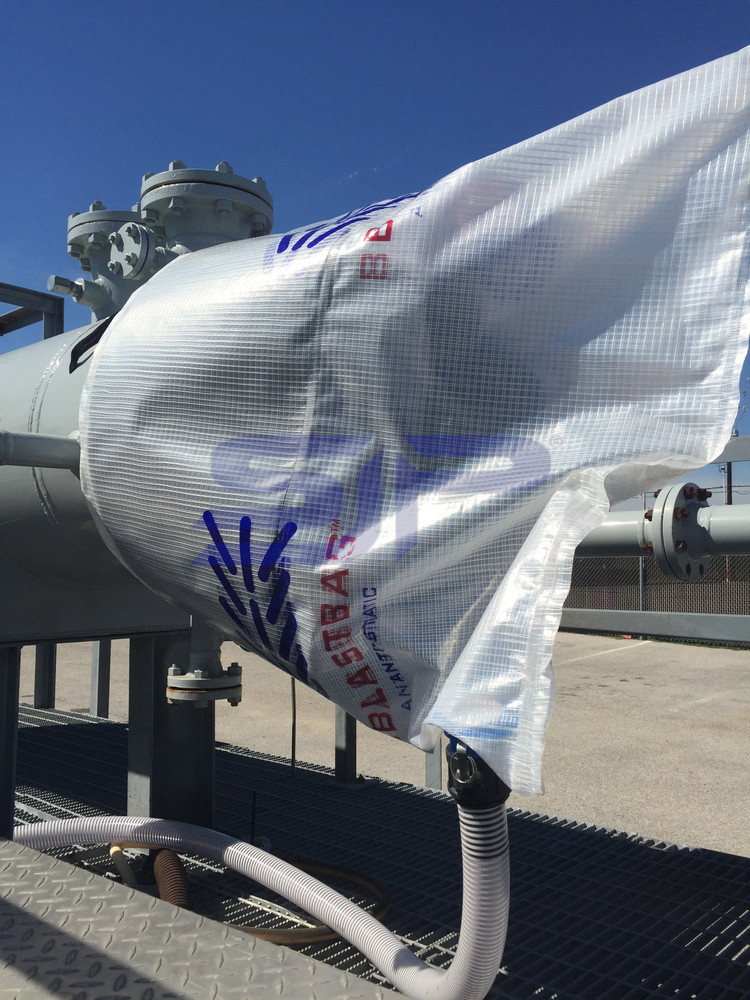

The bag easily slips over the end of the flange and can then be tightened to close around the exchanger shell or piping.

The bag is designed to handle up to 40k Hydroblasting pressure.

If you are using a shotgun tip, 2D, or 3D, you will need to use a BlastPlate to reduce the blasting pressure.

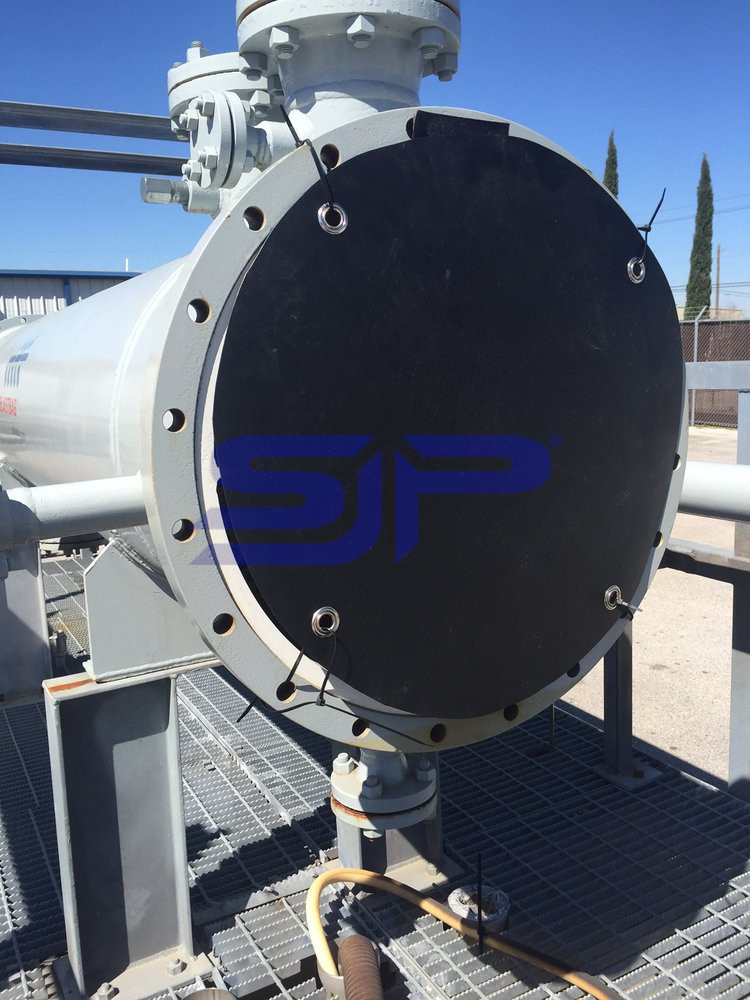

The BlastPlate is made out of a High Density Polyethylene (HDPE) that provides additional protection and gives the bag a longer lifespan, comes standard with 1 - 2"Poly Camlock

To place an order for BlastBags®, we need to know the outside diameter of the exchanger shell flange (the widest point it must cover).

Standard Sizes: 12" 18" 24" 30" 36" 42" 48" 54" 60" 72" 84" 96" 110"

Part number : 12"- BB12P12B / 18"- BB18P12B e.s.o.

If you like to use Storz coupler with 81 mm. between lugs (and keep the Camlock) you can easely mount below adapters together :

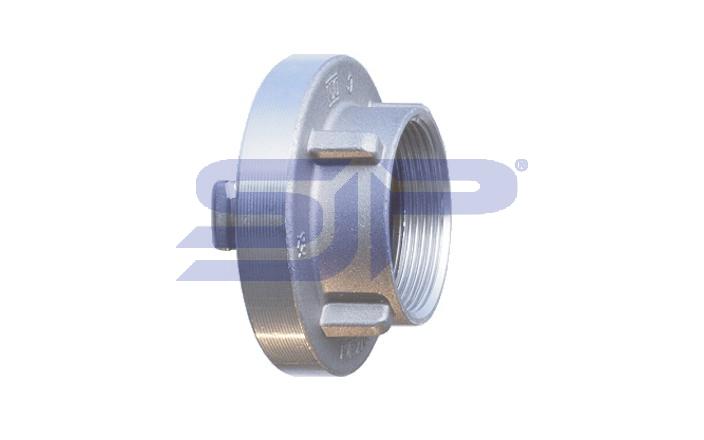

  • Storz coupler with 2"BSP female , P/N ; 4610014

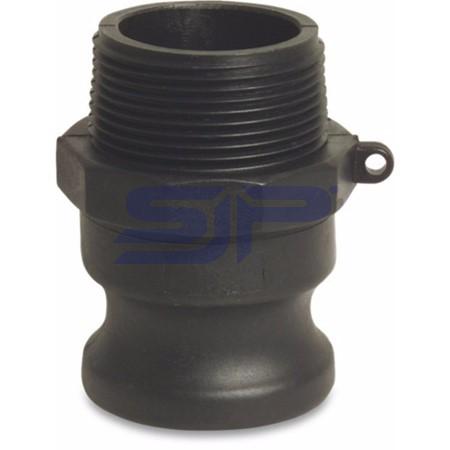

  • 2"Camlock (male) 2"male connection , P/N : 4620609


If you like to use Storz coupler with 81 mm. between lugs only you can easely mount below adapter in the 2"BSP female connection in the bag ;

  • Storz coupler with 2"BSP male , P/N ; 4610111
