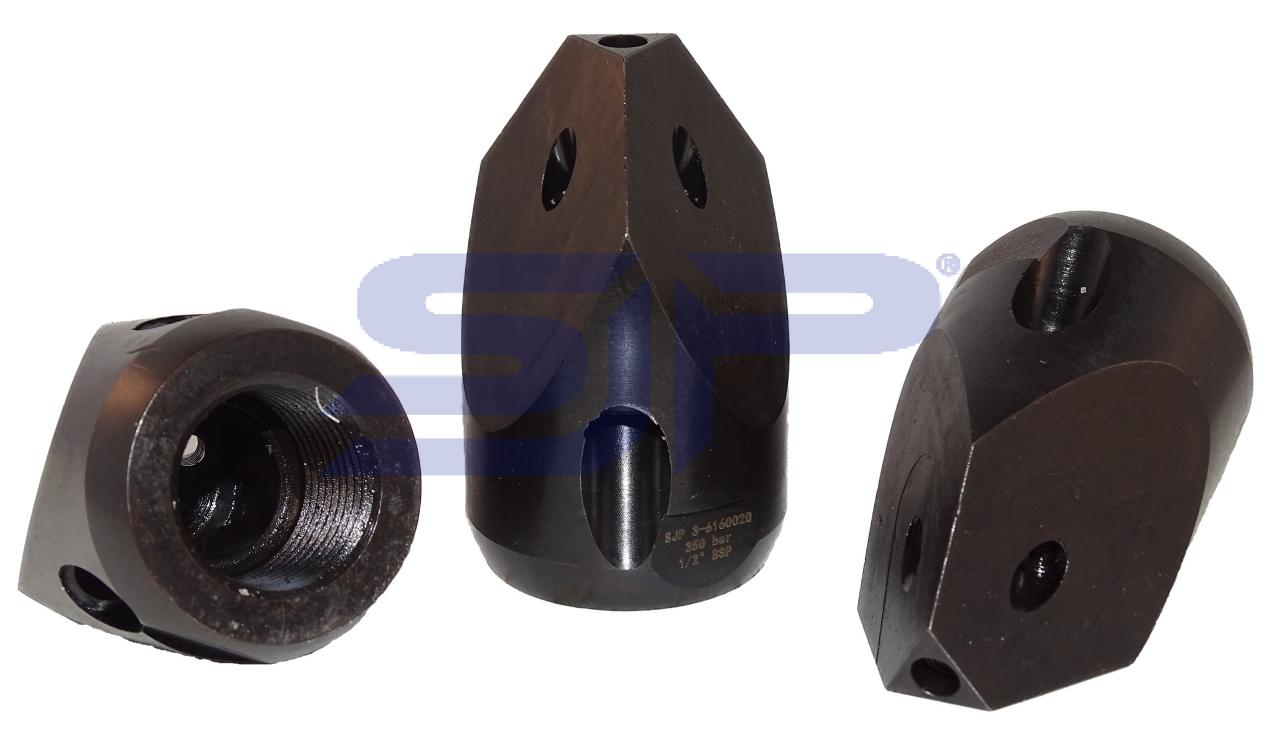

Pointed Nozzle
350 Bar
Product description
Nozzle (ice nozzles) suitable for water recycling units (comes with ceramic inserts).
Nozzles made out high quality hardend (HRC 55) st.steel.
Pointed nozzles are long life and suitable to open blocked tubes filled with mud - grease
To make retraction more easy, the entire rear end is provided with a radius so that the nozzle cannot get stuck anywere
- Dimensions : ø 30 x 53 mm.
- Nozzle patern : 1 x M4 0° front /3 x M4 15° front /3 x M6 35° pulling
- Connection : ½"BSPF
- Part number : 3-6160020-0 (excluded nozzle inserts)
With ceramic nozzle inserts (using recycling water) :
With st.steel inserts (using fresh water) :
Open attached drawing for more details
- Rioned® Quatro (chisel) jet ½" Part number : 2625200000
