Bagger Max 3D

300 Bar

Product description

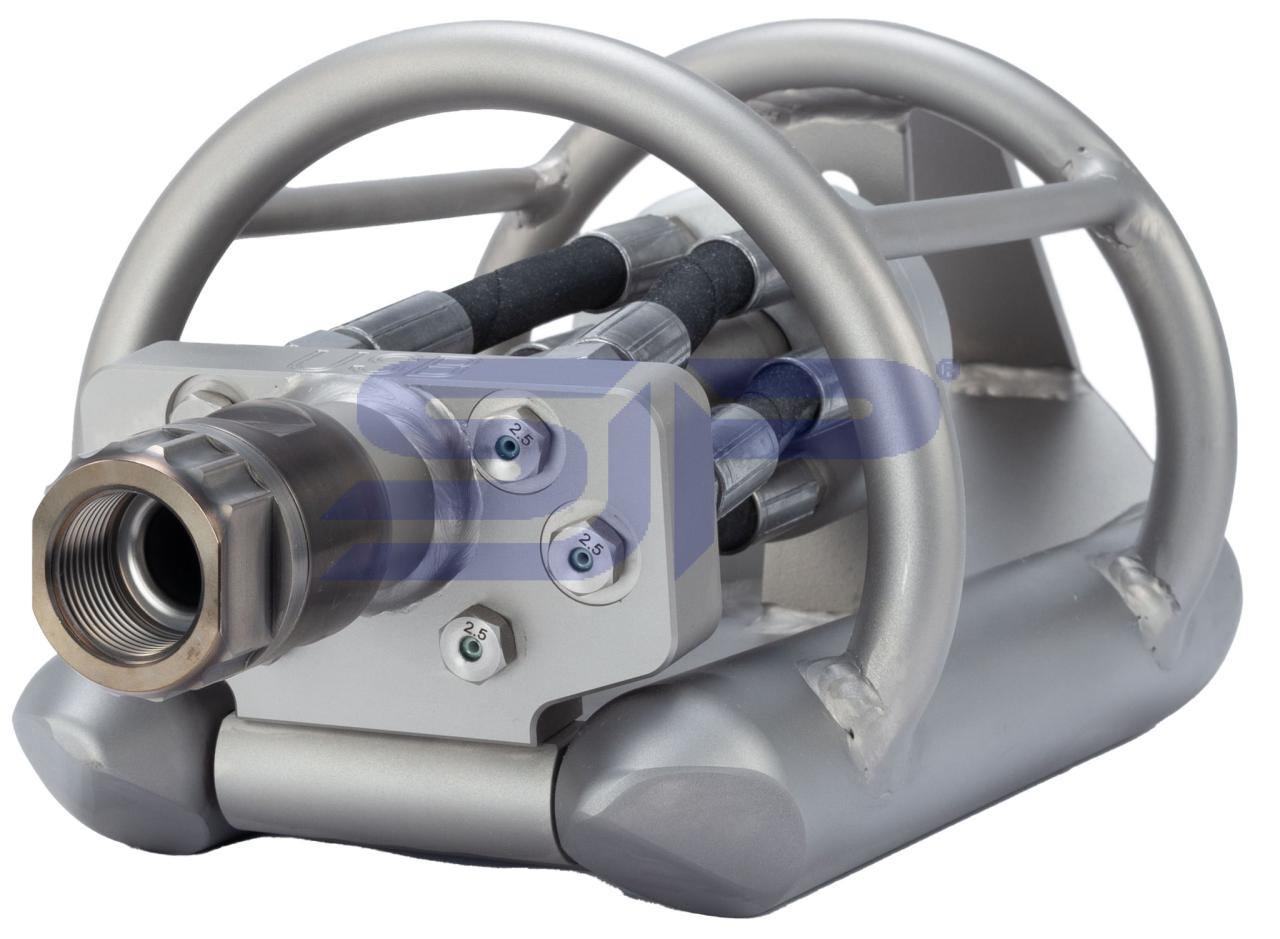

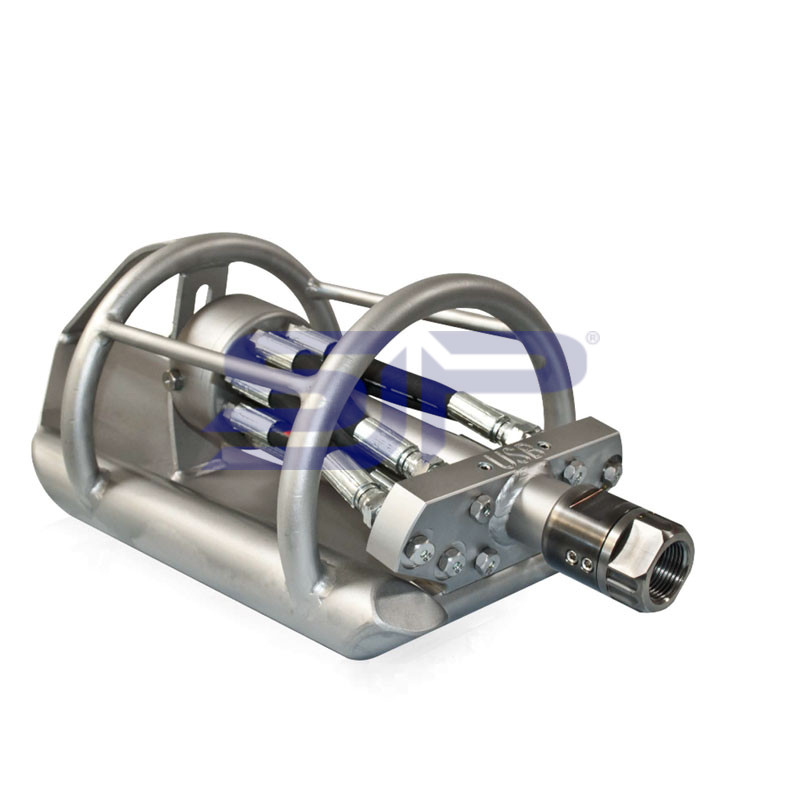

A high-efficiency floor/bottom cleaner made of hardened stainless steel, this nozzle includes an adjustable nozzle block that can be positioned between 0° - 30° depending on your application.

The power manifold has built-in 3D fluid mechanics which produce an intense and forceful jet pattern resulting in outstanding excavation, traction, and transportation of material even under water!

Roll over bars enable this nozzle to return to is correct position every time, material and nozzles are Recycling Water Approved.

Bagger Max will be standard deliverd with swivel and ceramic nozzle inserts.

Technical details light version :

  • Min. flow : 200 ltr./min.
  • Nozzle patern : 6 x ¼"BSP 0° - 30° pulling
  • Dimensions : 200 x 400 mm.
  • Cleaning area : ø 250 - ø 800 mm.
  • Mat.: st. st.
  • Weight : 21 kg.
  • Part number : 1017


Technical details heavy version :

  • Min. flow : 300 ltr./min.
  • Nozzle patern : 8 x ¼"BSP 0° - 30° pulling
  • Dimensions : 220 x 500 mm.
  • Cleaning area : ø 500 - ø 1500 mm.
  • Mat.: st. st.
  • Weight : 24 kg.
  • Part number : 1015


Replacement / spare nozzles please click here

Video
