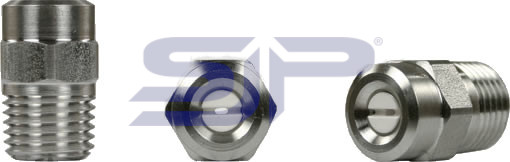

Ceramic Fan Jets ¼"NPTM 15°
300 Bar
Product description
¼"NPT Fan Jet 15°
If you want a better life time out of your steel fan jets, you can use the Ceramic Fanjet, the ceramic is protected in a stainless steel body.
Those nozzles can also be used for surface cleaning but also for sewer cleaning on recycling trucks by mounting the nozzles in bombs and granates.
Technical details :
- Dimensions : Hex. 14 mm. length : 22,5 mm. length thread : 11 mm.
- Material body : st. st. 304, material insert : ceramic
- Max. temp. : 125°C
- Nozzle number : 15020 P/N : 613056
- Nozzle number : 15025 P/N : 613076
- Nozzle number : 15030 P/N : 613106
- Nozzle number : 15035 P/N : 613206
- Nozzle number : 15040 P/N : 613306
- Nozzle number : 15045 P/N : 613406
- Nozzle number : 15050 P/N : 613506
- Nozzle number : 15055 P/N : 613606
- Nozzle number : 15060 P/N : 613706
- Nozzle number : 15070 P/N : 613906
- Nozzle number : 15075 P/N : 614006
- Nozzle number : 15100 P/N : 614406
- Nozzle number : 15110 P/N : 614506
- Nozzle number : 15150 P/N : 614806
To calculate the correct nozzle you can use attached Nozzle chart, for example : 150 bar - 16 ltr. nozzle number 15060, please note, this chart is approximate, so it can be a little different in practice.
- Blindplug : inside hex.¼" , length 11,1 mm. P/N : GP 025-P4
