Ceramic Fan Jets ¼"NPTM 40°
300 Bar
Product description

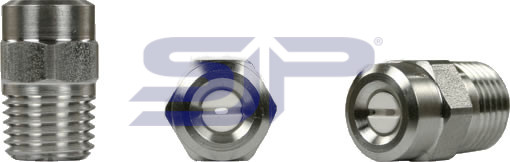

¼"NPT Fan Jet 40°
If you want a better life time out of your steel fan jets, you can use the Ceramic Fanjet, the ceramic is protected in a stainless steel body.
Those nozzles can also be used for surface cleaning but also for sewer cleaning on recycling trucks by mounting the nozzles in bombs and granates.
Technical details :
- Dimensions : Hex. 14 mm. length : 22,5 mm. length thread : 11 mm.
- Material body : st. st. 304, material insert : ceramic
- Max. temp. : 125°C
- Nozzle number : 40020 P/N : 620306
- Nozzle number : 40025 P/N : 620356
- Nozzle number : 40030 P/N : 621006
- Nozzle number : 40035 P/N : 621206
- Nozzle number : 40040 P/N : 621306
- Nozzle number : 40045 P/N : 621406
- Nozzle number : 40050 P/N : 621506
- Nozzle number : 40055 P/N : 621606
- Nozzle number : 40060 P/N : 621706
- Nozzle number : 40065 P/N : 621806
- Nozzle number : 40075 P/N : 622006
- Nozzle number : 40080 P/N : 622106
- Nozzle number : 40090 P/N : 622306
- Nozzle number : 40100 P/N : 1530.190
- Nozzle number : 40120 P/N : 622606
To calculate the correct nozzle you can use attached Nozzle chart, for example : 150 bar - 16 ltr. nozzle number 40060, please note, this chart is approximate, so it can be a little different in practice.
- Blindplug : inside hex.¼" , length 11,1 mm. P/N : GP 025-P4
