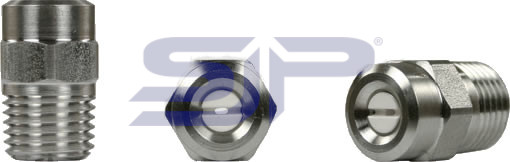

Ceramic Fan Jets ¼"NPTM 90°

300 Bar

Product description

¼"NPT Fan Jet 90°

If you want a better life time out of your steel fan jets, you can use the Ceramic Fanjet, the ceramic is protected in a stainless steel body.

Those nozzles can also be used for surface cleaning but also for sewer cleaning on recycling trucks by mounting the nozzles in bombs and granates.

Technical details :

  • Dimensions : Hex. 14 mm. length : 22,5 mm. length thread : 11 mm.
  • Material body : st. st. 304, material insert : ceramic
  • Max. temp. : 125°C
  • Nozzle number : 90040 P/N : 1532.120
  • Nozzle number : 90075 P/N : 1532.160
  • Nozzle number : 90100 P/N : 1532.190
  • Nozzle number : 90110 P/N : 1532.200
  • Nozzle number : 90160 P/N : 1532.240
  • Nozzle number : 90200 P/N : 1532.280


To calculate the correct nozzle you can use attached Nozzle chart, for example : 150 bar - 30 ltr. nozzle number 90110, please note, this chart is approximate, so it can be a little different in practice.

  • Blindplug : inside hex. ¼" , length 11,1 mm. P/N : GP 025-P4
