Gun Safety Shroud
3000 Bar
Product description

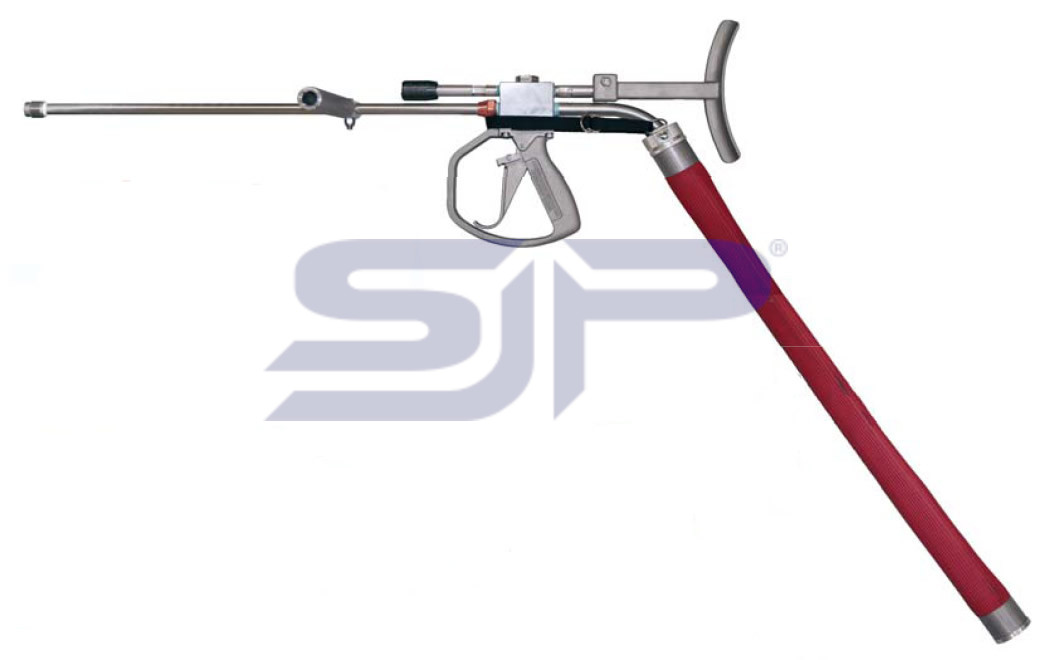

Safe operation of hand held control guns requires the use of a Safety Shroud to guard the operator from failure of the hose fitting at the point where it is connected to the gun.
This safety shroud is safe over the complete length and fit virtually any gun of 10K to 40K of any brand.

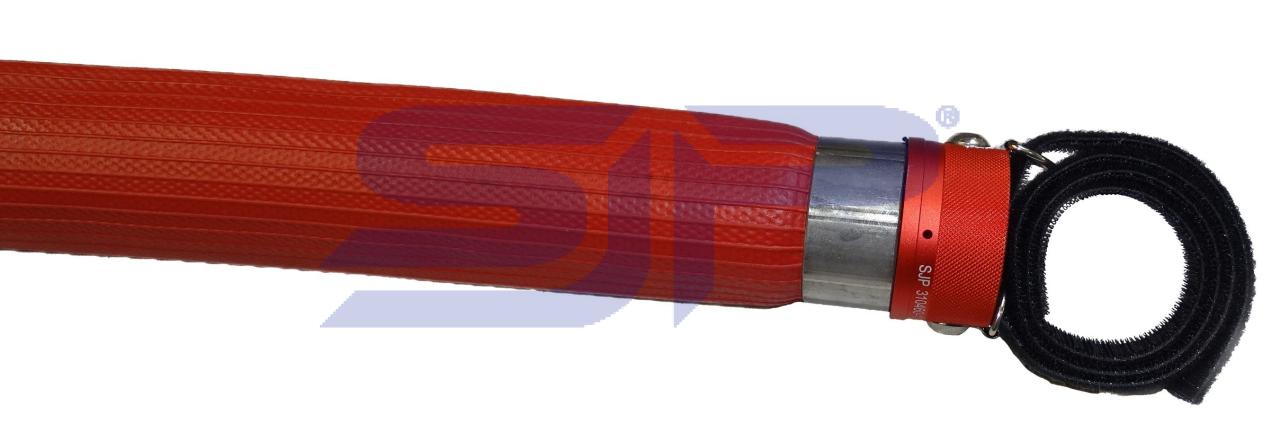

It’s simply held in place by an adjustable strong hook-and loop fastener strap, it’s light in weight – easy to clean – doesn’t absorb water (don’t get heavy) – heat resistant – one size fits all and with universal application it is a popular alternative to the Standard Screw Type Shroud.OD 2", XL version OD 2½".

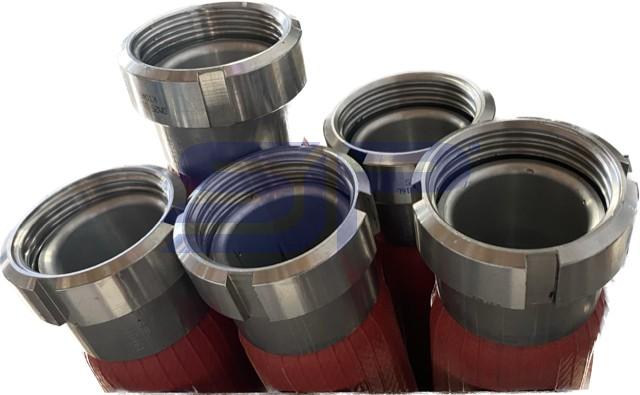

The Shrouds have a nitrile outer cover, which resists oil, water and many solvents, and an inner layer of braided stainless steel which prevent steel parts through the hose.
Safety Shrouds are essential equipment, and should be used in conjunction with a whip hose, which allows for connection to different high pressure sources, without the need to make frequent connections to the gun.
NEVER USE A CONTROL GUN WITHOUT A SAFETY SHROUD.
On attached PDF files you will find more information about the certification, check video for our test at 4000 bar ( 57K).

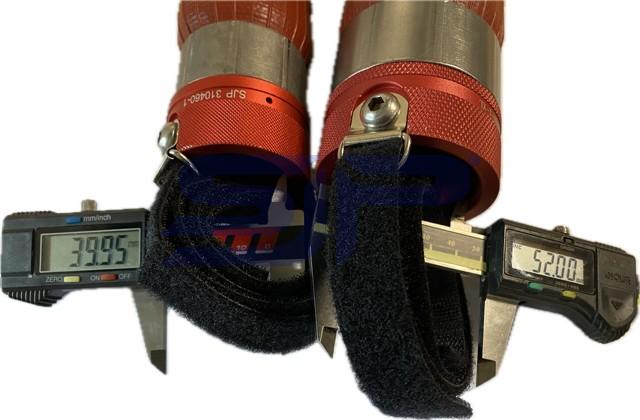

- ID : ø 40 mm.
- OD : ø 57 mm.
- Total length : 1,4 mtr.
- Weight : 1,85 kg.
- Part number : 310462
- Total length : 3 mtr.
- Weight : 3,3 kg.
- Part number : 310463

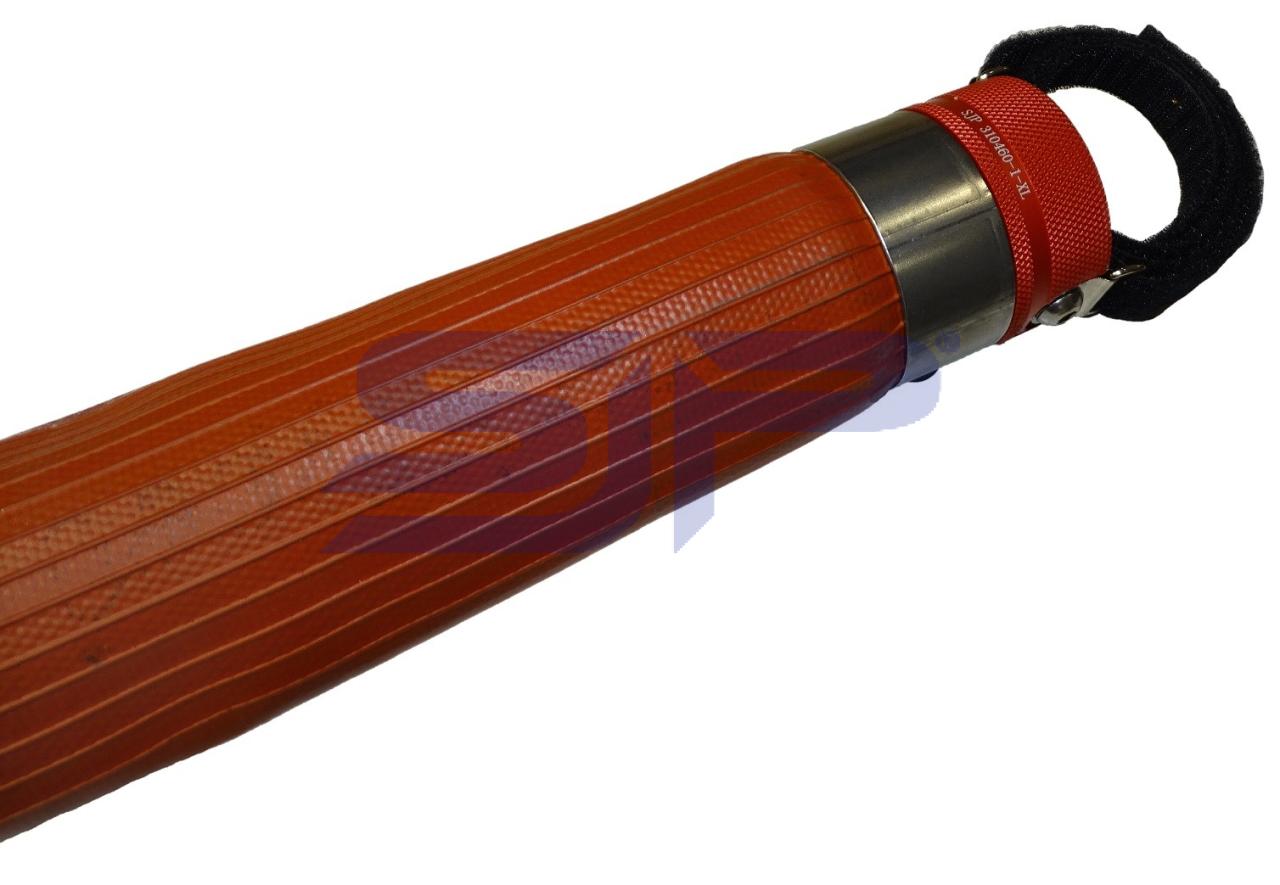

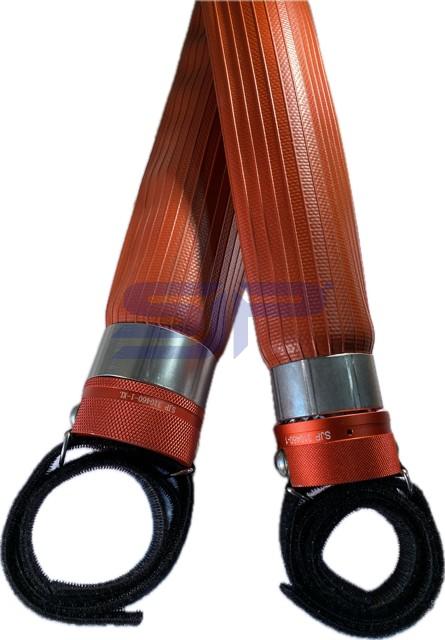

- ID : ø 52 mm.
- OD : ø 68 mm.
- Total length : 1,4 mtr.
- Weight : 2,25 kg.
- Part number : 310462-XL
- Total length : 3 mtr.
- Weight : 4,2 kg.
- Part number : 310463-XL
XL version available November 2023
Spare parts:
- Hook-and-loop fastener strap (± 70 cm.) , part number 304125
- D-ring with clip (need 2 pieces for 1 shroud). part number 304126
- Bolt for mounting clip (need 2 pieces for 1 shroud). part number 304127
