45° Block M24x1,5 M/F

1500 Bar

Product description

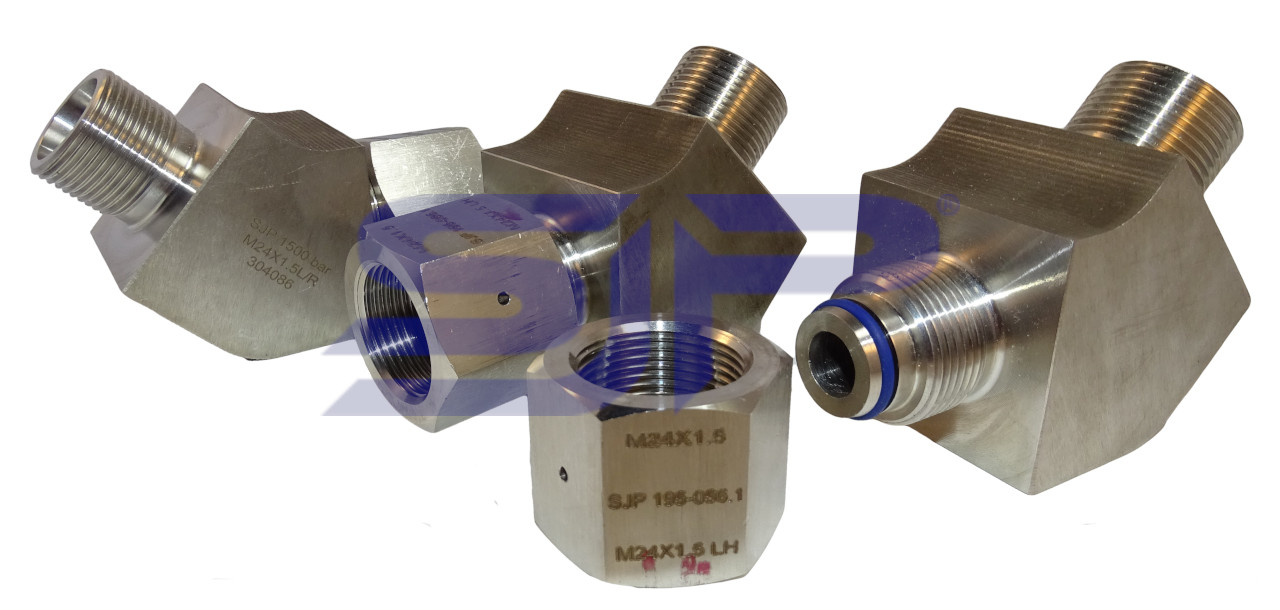

45° Blok M24x1,5 male (24°cone) - M24x1,5LH male (24°cone + o-ring) , now with radius inside to avoid cavitation at the corner,

  • Outside dimensions block: 76,5 x 48 x 40 mm. (LxWxT)
  • ID ø 10 mm. with radius 5 at the corner.

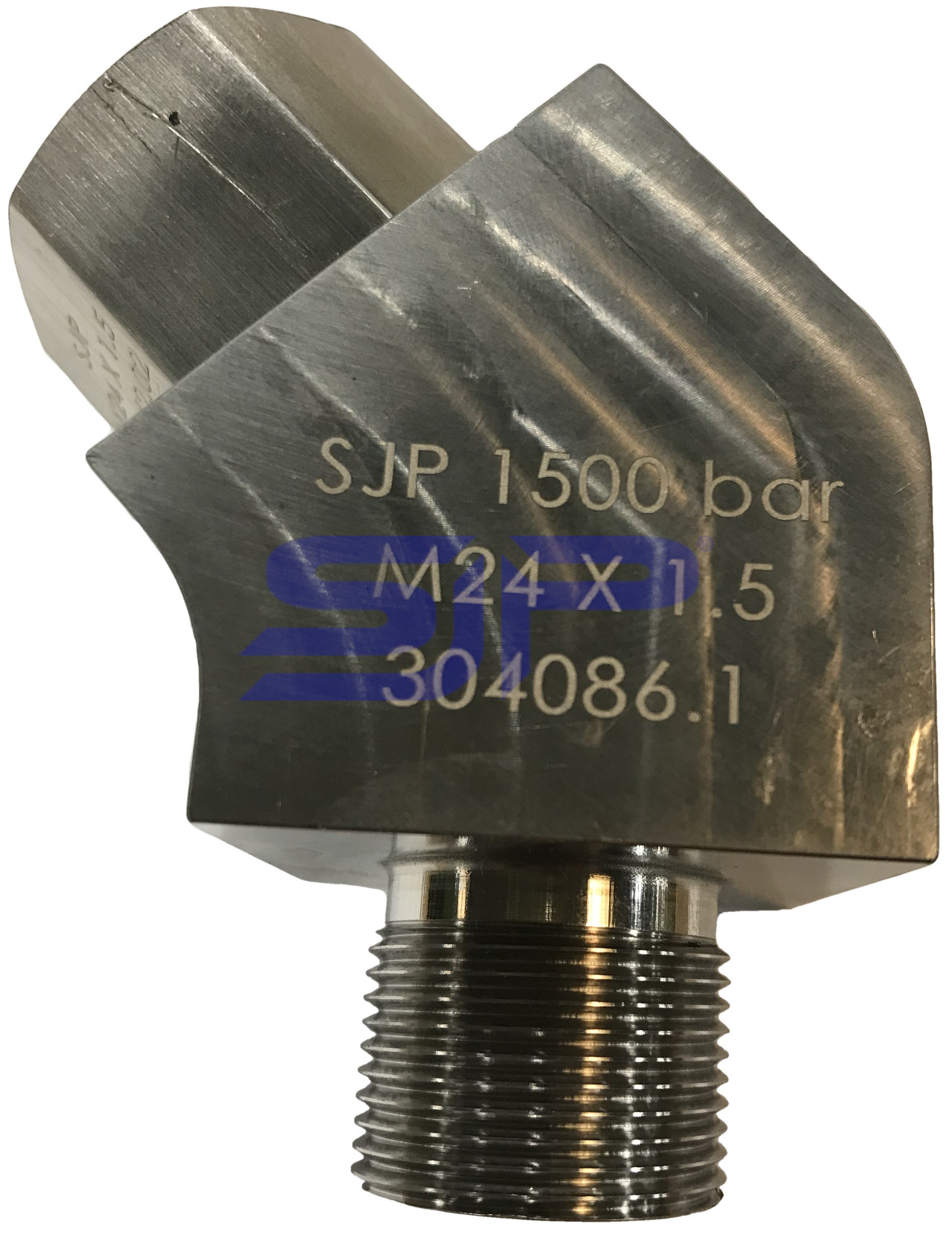

  • Block Part number : 304086 (without M24x1,5L/R swivelnut)

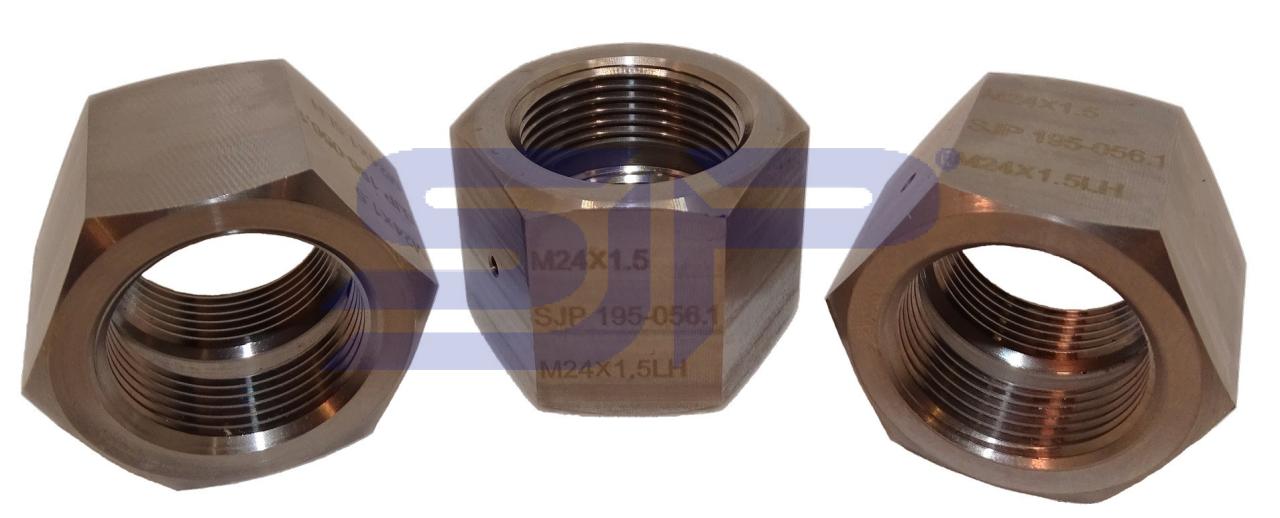

  • Swivelnut Part number : 195-056.1 (M24x1,5L/R female)
  • Part number O-ring : 98000719-blue (comes with the block)

Open attached drawing for more details

  • (Compatible Hammelmann® 00.05991.0006 )
