T-piece M26x1,5
4200 Bar
Product description
Compact 90° Elbow complete with 2 ø 6 mm. mounting holes
Technical details :
- Dimensions : 50 x 50 x 34 mm.
- ID : ø 5 mm,
- Connections : 3 x M26x1,5F
- Material : st. st. 316 + heat treatment
- Part number : 804915
- (Compatible Falch® P/N : e1300166)
- Gland nuts 195-105 click here
- Collar M14x1,5LH (195-108) or 9/16"-18UNFLH (195-109) click here
- Adapter choice M26x1,5M click here

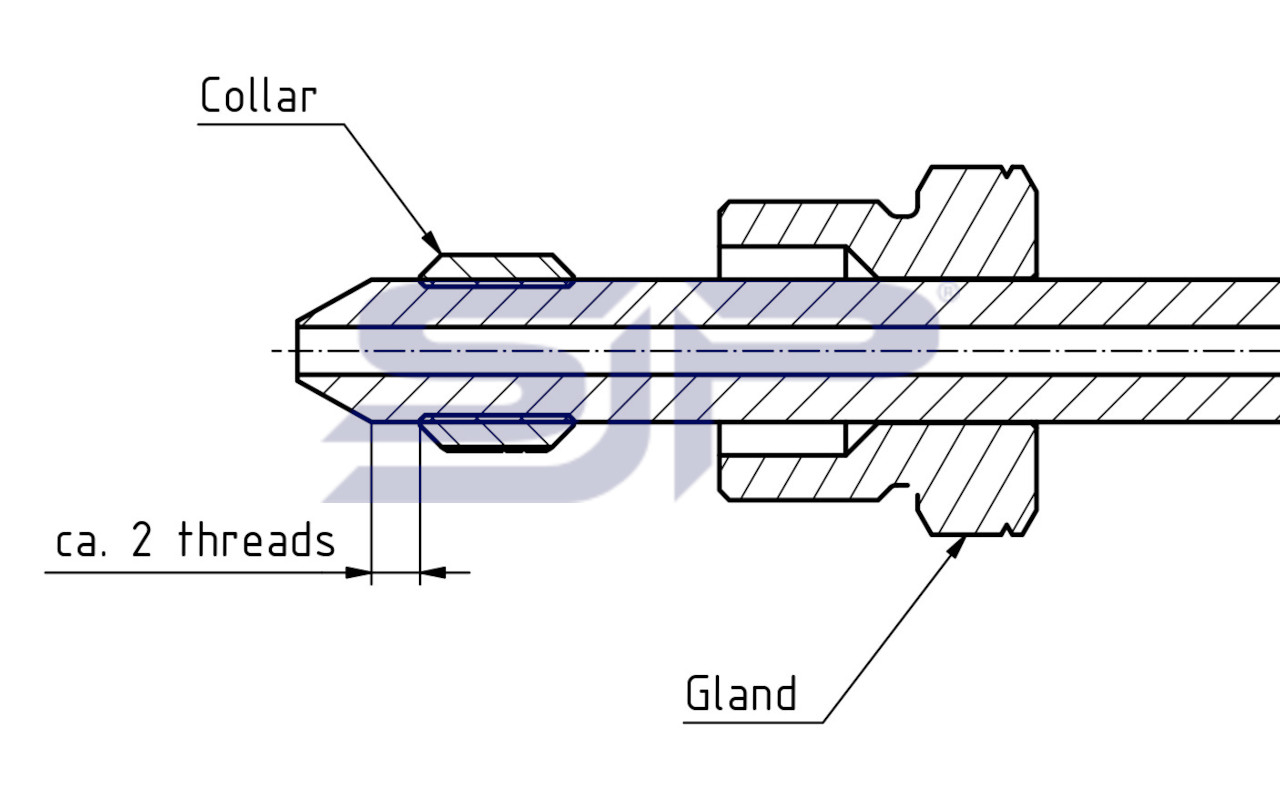

Open attached drawing for more details.
