¼"MPLH - ¼"MPRH

1400 Bar
¼"MPLH - ¼"MPRH

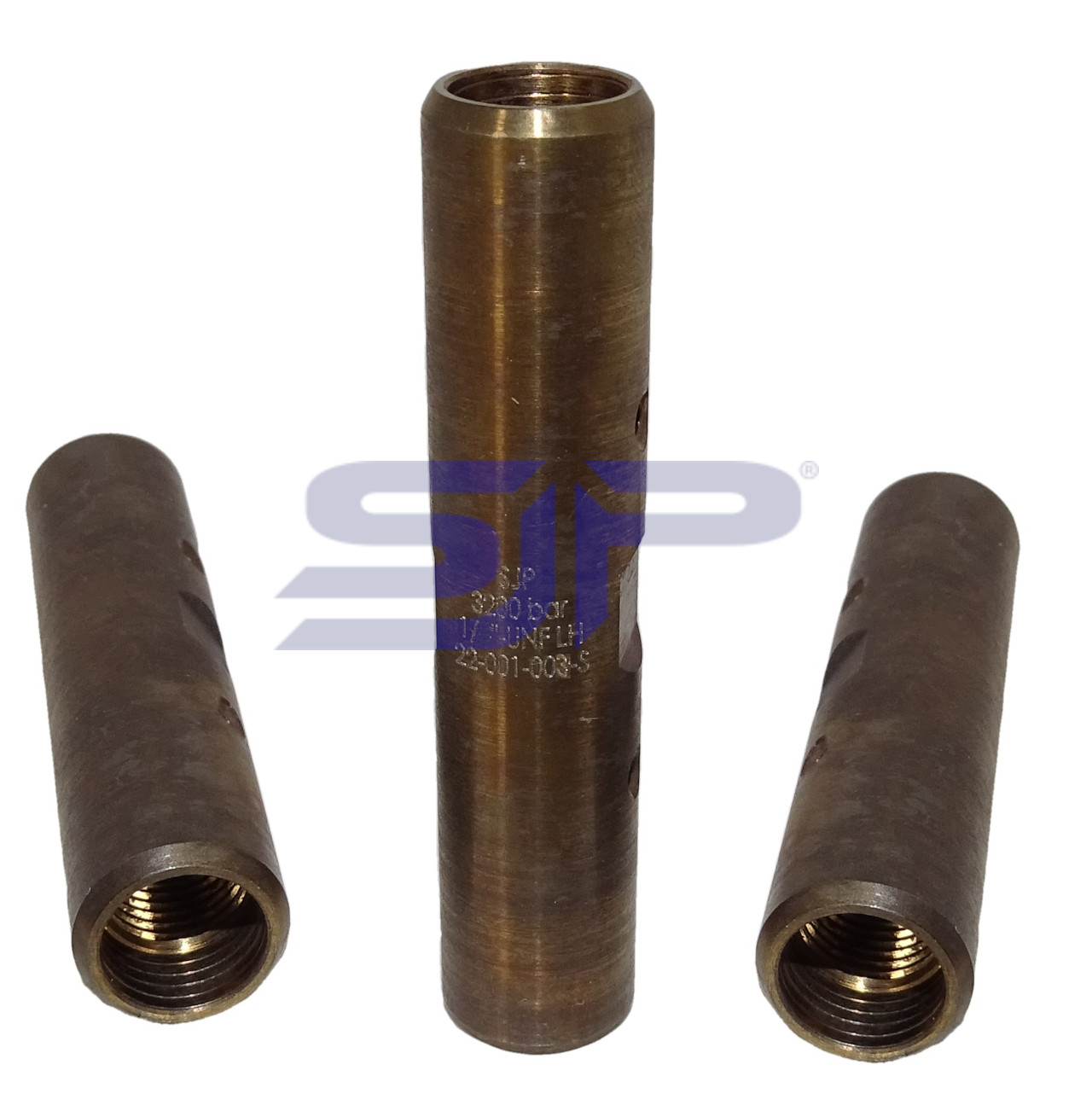

Product description

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

  • Dimensions : ø 9,6 x 55 mm.
  • Connection : ¼"-28UNF LH - ¼"-28UNF RH
  • Material : exotic st. st. incl. heat treatment
  • Part number : 21-014-001
