¼”MPLH - ⅜”MPLH

Product description

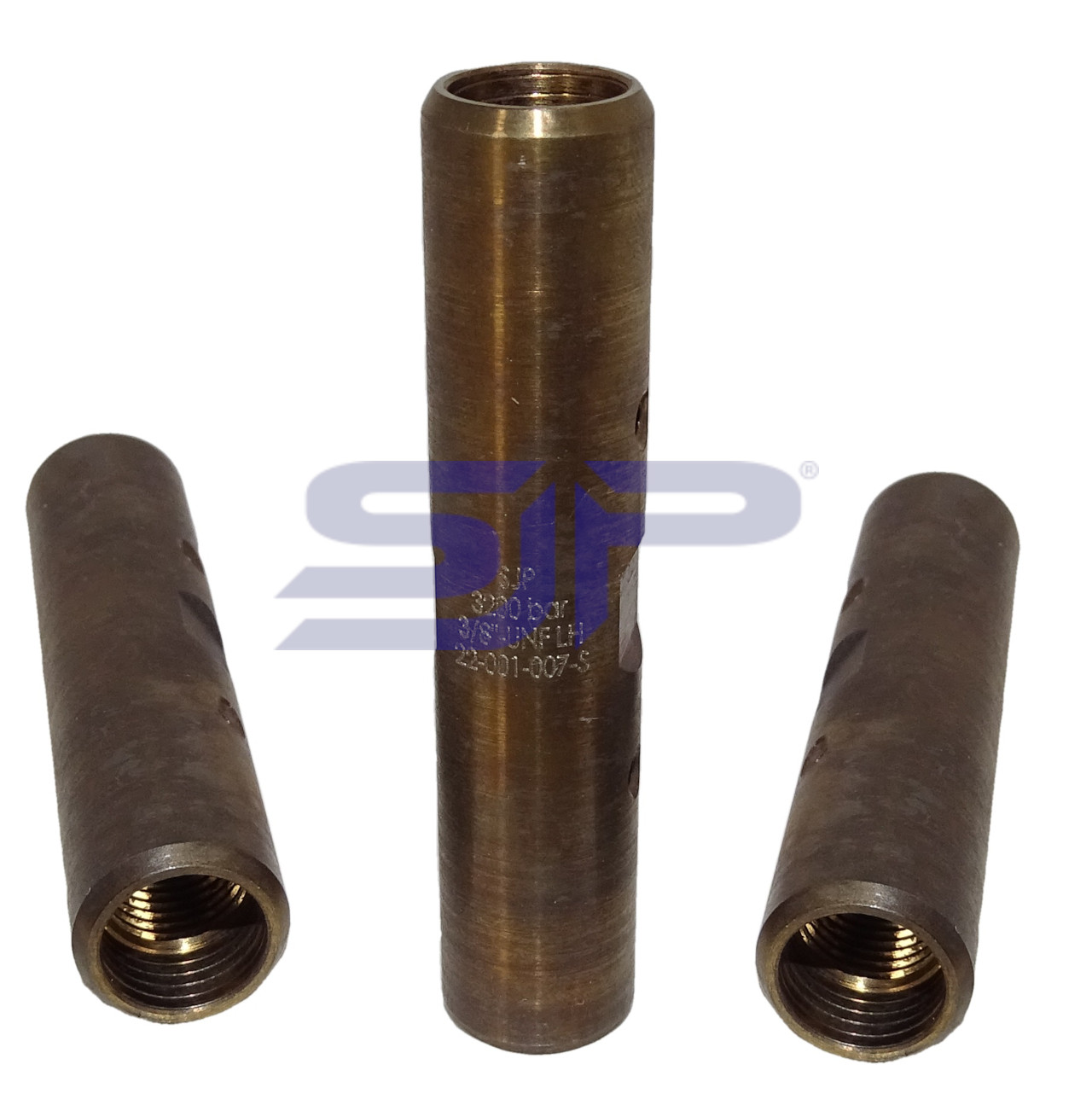

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

• Dimensions : ø 12,6 x 57 mm.
• Connection : ¼"-28 UNF LH - 3/8"-24UNF LH
• Material : exotic st. st. incl. heat treatment
• Part number : 21-013-006
