⅜"HPLH - ¼"HPLH

Product description

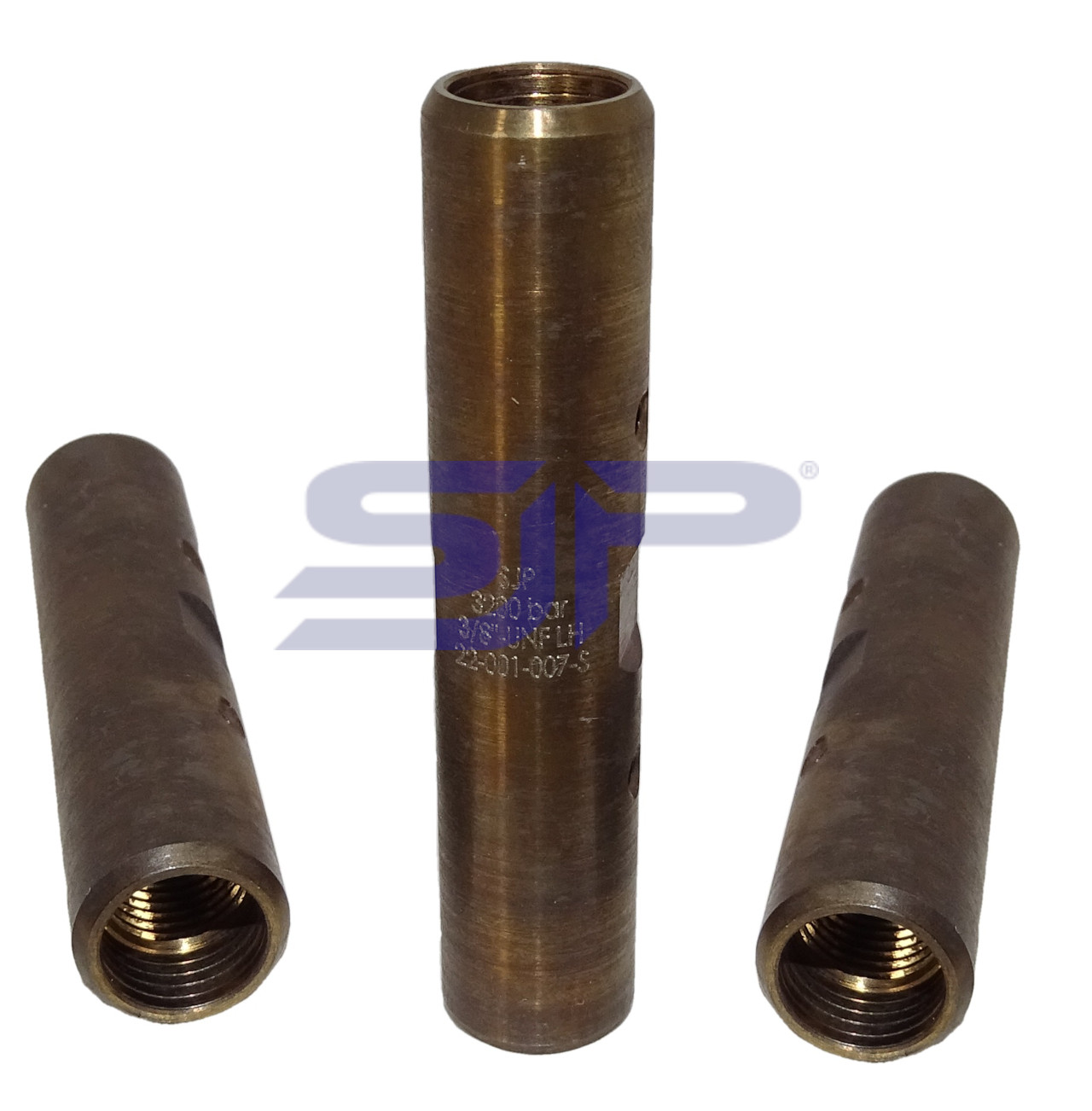

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

• Dimensions : ø 17,5 x 57 mm.
• Connection : ⅜"-24UNF LH female - ¼"-28UNF LH female
• Material : exotic st. st. including heat treatment
• Part number : 22-001-036
