⅜"NPT - ⅜"NPT

Product description

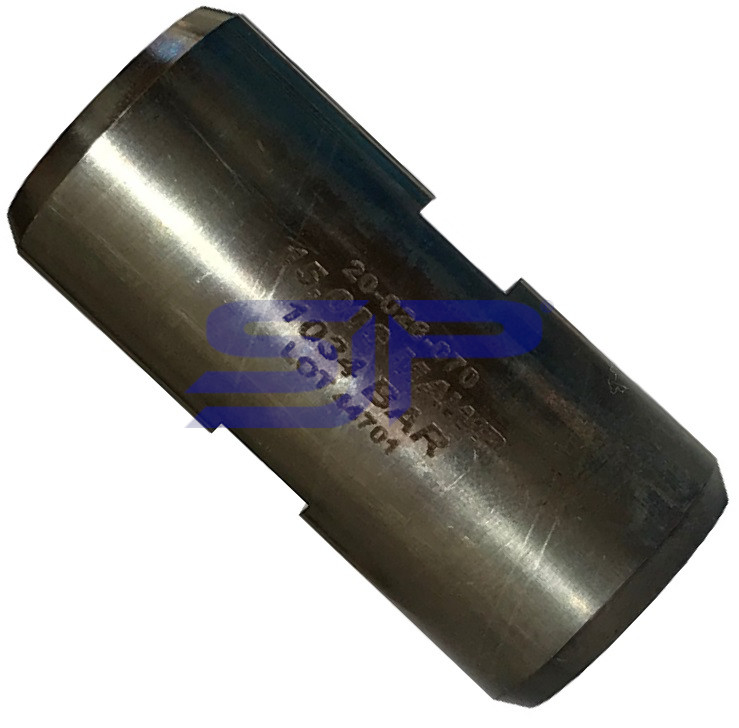

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

• Dimensions : ø 20,7 x 36,5 mm.
• Connection : 2 x ⅜"NPT
• Material : exotic st. st. incl. heat treatment
• Max. WP : 700 Bar
• Part number : 20-001-012

• Dimensions : ø 22,2 x 36,5 mm.
• Max. WP : 1000 Bar
• Part number : 20-001-005

• Dimensions : ø 28,5 x 42,8 mm. (heavy duty)
• Max. WP : 1000 Bar
• Part number : 20-026-041
