¼"HP - ¼"BSP

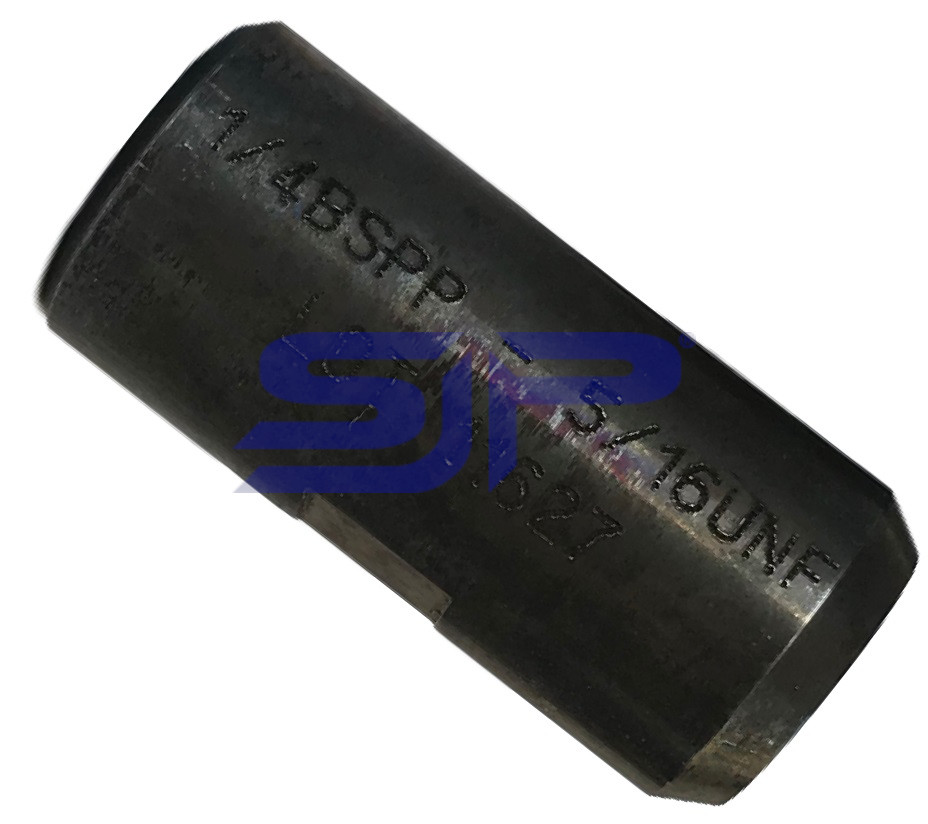

Product description

Slimline couplers mostly use to connect lances (stingers) ,by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

• Dimensions : ø 17,5 x 36 mm.
• Connection : ¼"HP - ¼"BSP
• Material : st. st. 316
• Part number 1000 bar version : 20-026-064
• Part number 1750 Bar version : 20-026-069

BSP female thread is flat bottom, to get the perfect sealing between the hose / stinger / lance , you need a perfect fit copper washer.

• Copper washer ¼"BSP Part number : 584.14
