5/16"UNF - ¼"BSP
1000 Bar

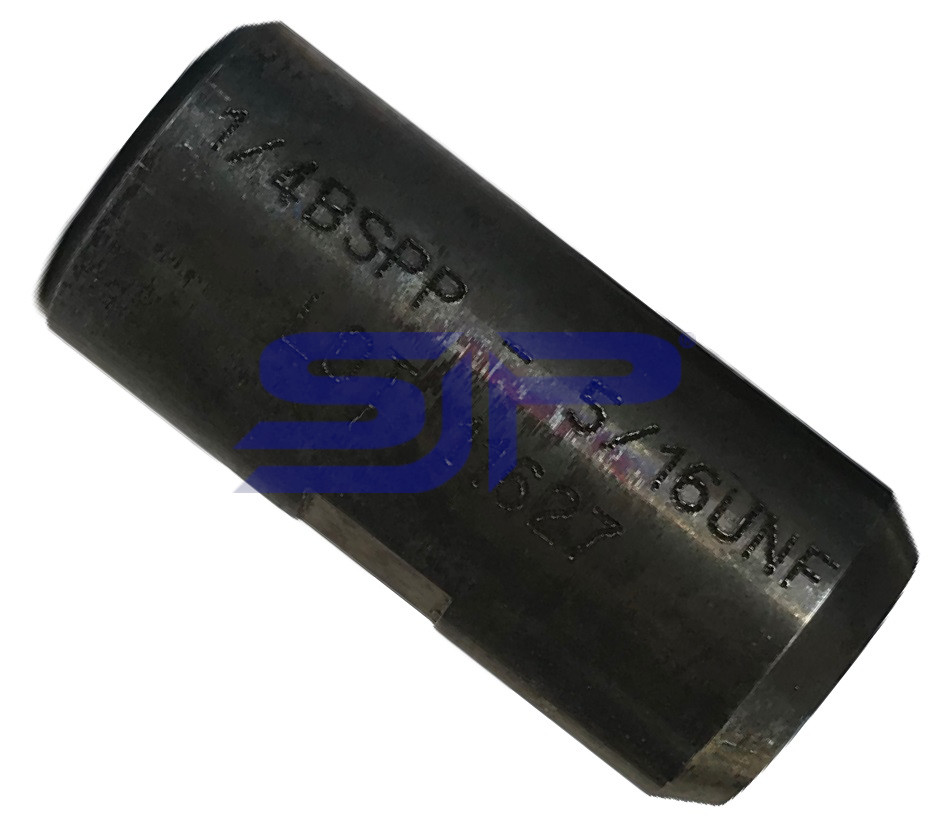

Product description
Slimline couplers mostly use to connect lances (stingers) ,by using slimline couplers the OD of the connection is the smallest.
For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.
To get more support on both ends there is a small chamber for the connection for supporting the lance.
- Dimensions : ø 17 x 36 mm.
- ID : ø 4 mm.
- Connection : 5/16"UNF- ¼"BSP
- Material : exotic st. st. incl. heat treatment
- Part number : 20-026-095
BSP female thread is flat bottom, to get the perfect sealing between the hose / stinger / lance , you need a perfect fit copper washer.
- Copper washer ¼"BSP Part number : 584.14
All our adapters are unselective tested,
When we receive adapters at least two of them will be tested at least 1.3 x working pressure , for the ultra higher pressures we work with test pressure = max. working pressure , on attached pdf file (click on document) you will find test certificate of this adapter who is tested at 1350 Bar
