½"NPT - ½"NPT

1000 Bar
½"NPT - ½"NPT

Product description

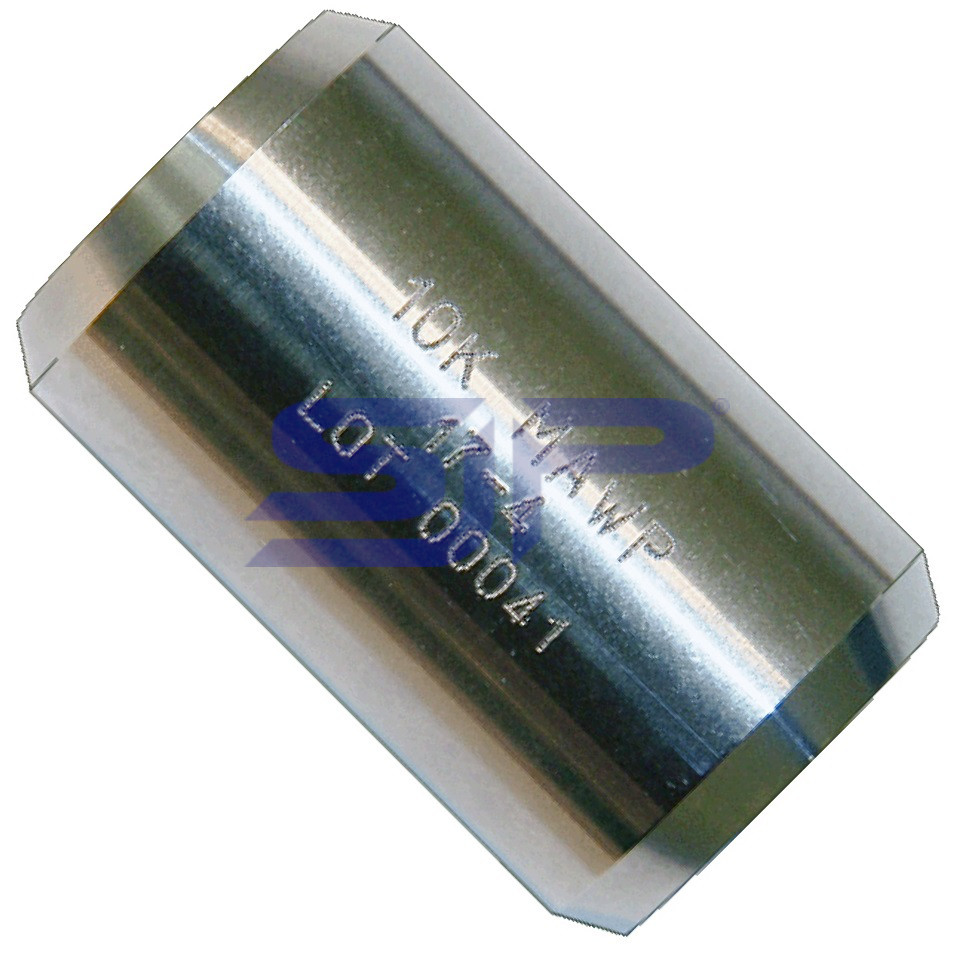

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

  • Dimensions : ø 28,5 x 42,8 mm.
  • Connection : 2 x ½"NPT
  • Material : exotic st. st.
  • Max. wp 700 Bar
  • Part number : 20-001-006


  • Dimensions : ø 30,1 x 42,8 mm. (heavy duty)
  • Max. wp 1000 Bar
  • Part number : 20-001-106
