M36x2
1600 Bar
Product description

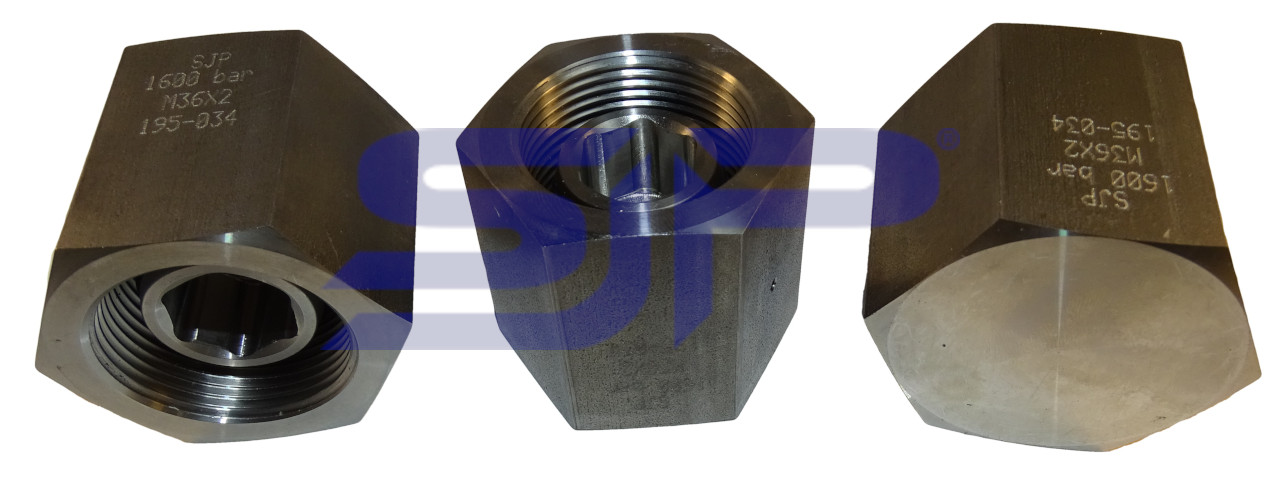

Blind caps with cone are mostly used to blind of outlet connection of the high pressure unit that not being used.
- Dimensions : Hex. 46 x 44 mm.
- Material : st. st. 316
- Complete with 24° coned plug and o-ring
- Part number complete : 195-034
More information click on "drawing"
All our adapters are unselective tested,
When we receive adapters at least two of them will be tested at least 1.3 x working pressure on attached pdf file (click on certifcate) you will find test certificate of this adapter who is tested at 2150 Bar
Spare parts :
- Hex blind nut (body) M36x2 Part number : 195-034.2

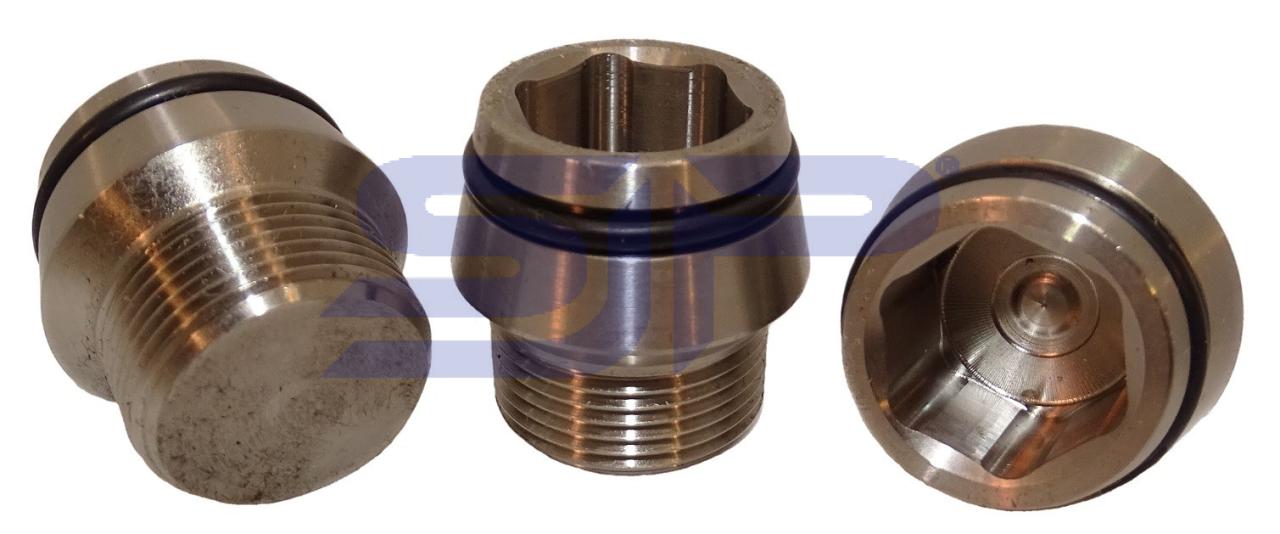

- M36x2 Cone plug M24x1,5M excl. O-ring Part number : 195-038.03
- O-ring (NBR) M36 cone : 98000722
- Copper ring between M24 cone and body < 1000 Bar : 584.24
- Ampco ring between M24 cone and body > 1000 Bar : 584.25.ALB
- Cone 195-038.03 mounting with Alan Key 17 mm. and Loctite 270
- (Compatible Hammelmann® 00.01898.0002 )
