M7F - M7F

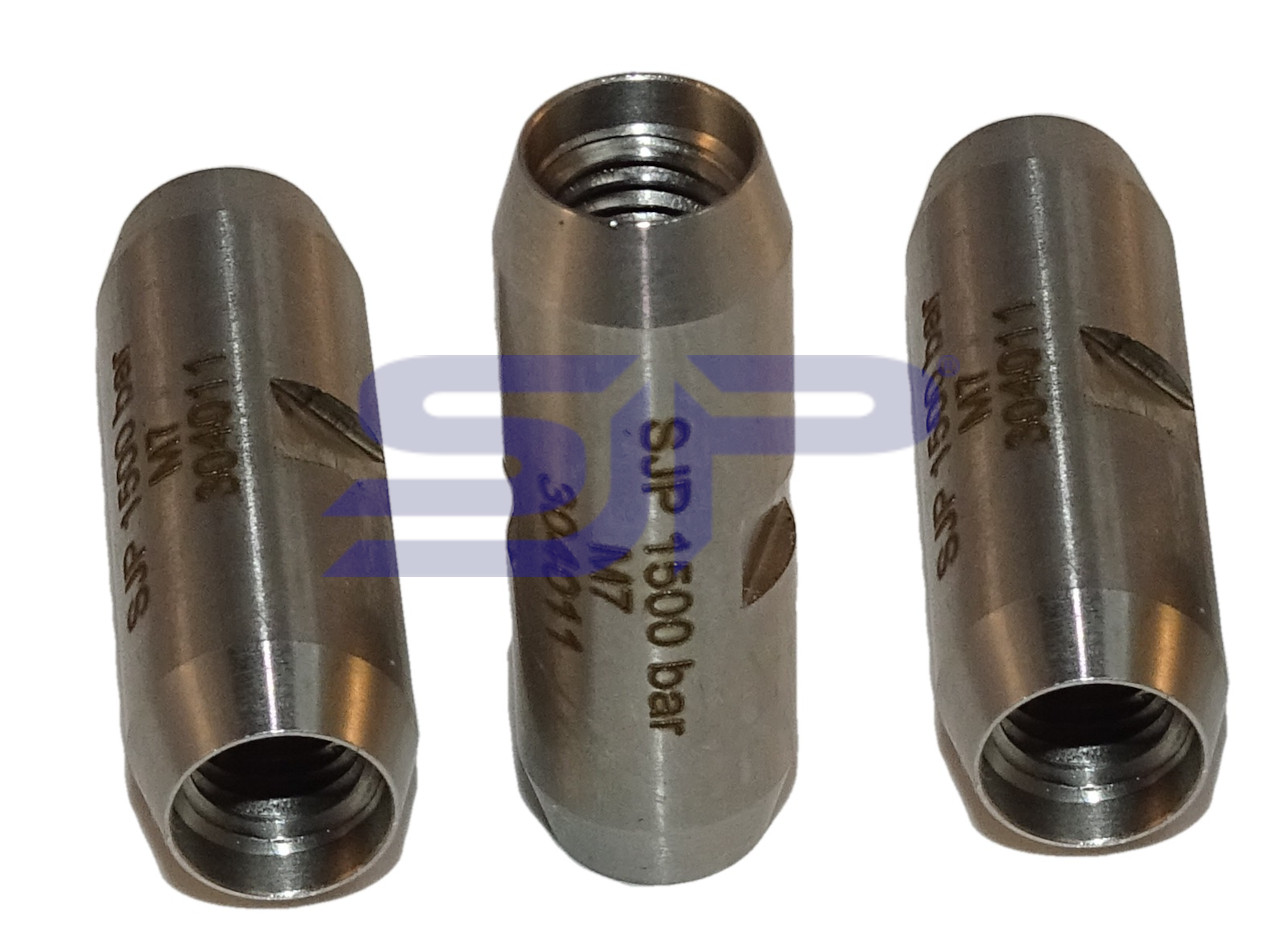

Product description

Slimline couplers mostly use to connect lances (stingers) ,by using slimline couplers the OD of the connection is the smallest.

For easy connection there are 2 flat sides 8 mm.

To get more support on both ends there is a small chamber for the connection for supporting the lance.

• Dimensions : ø 10 x 30 mm.
• ID : ø 3 mm.
• Connection : 2 x M7x1F
• Material : st. st. 316
• Part number : 304011

M7x1 female thread is flat bottom, to get the perfect sealing between the hose / stinger / lance , you need a perfect fit copper washer.

• Copper washer M7x1 Part number : 584.07
