M26x1,5
Product description

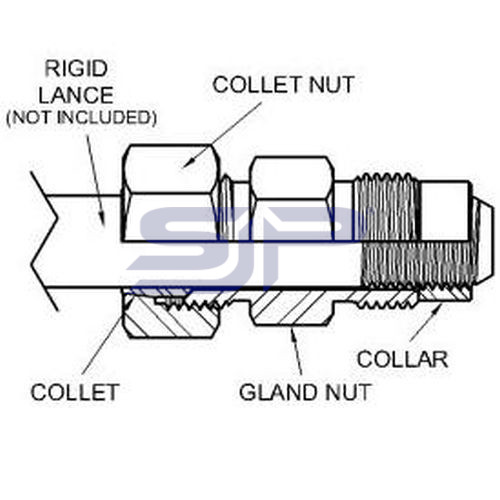

A coned and threaded tube, when subjected to unusual or excessive vibration, may fail prematurely and break at the last thread. The Anti-Vibration Gland Assembly acts to move the fulcrum of vibration away from the threaded portion of the tube and onto the strong, solid wall of the tubing.
This set is special designed to use on a ultra-high pressure set that will be used only up to 1500 bar.

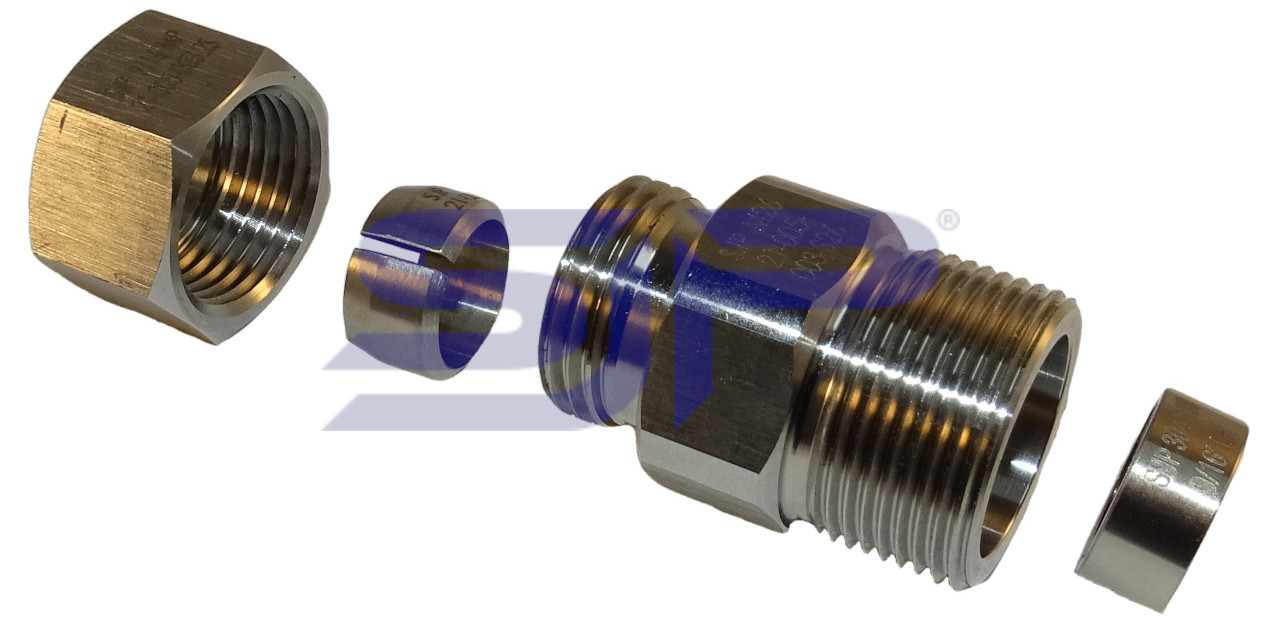

- Complete Assy M26x1,5 / 9/16"-18LH : 21-005-003-SM26.916

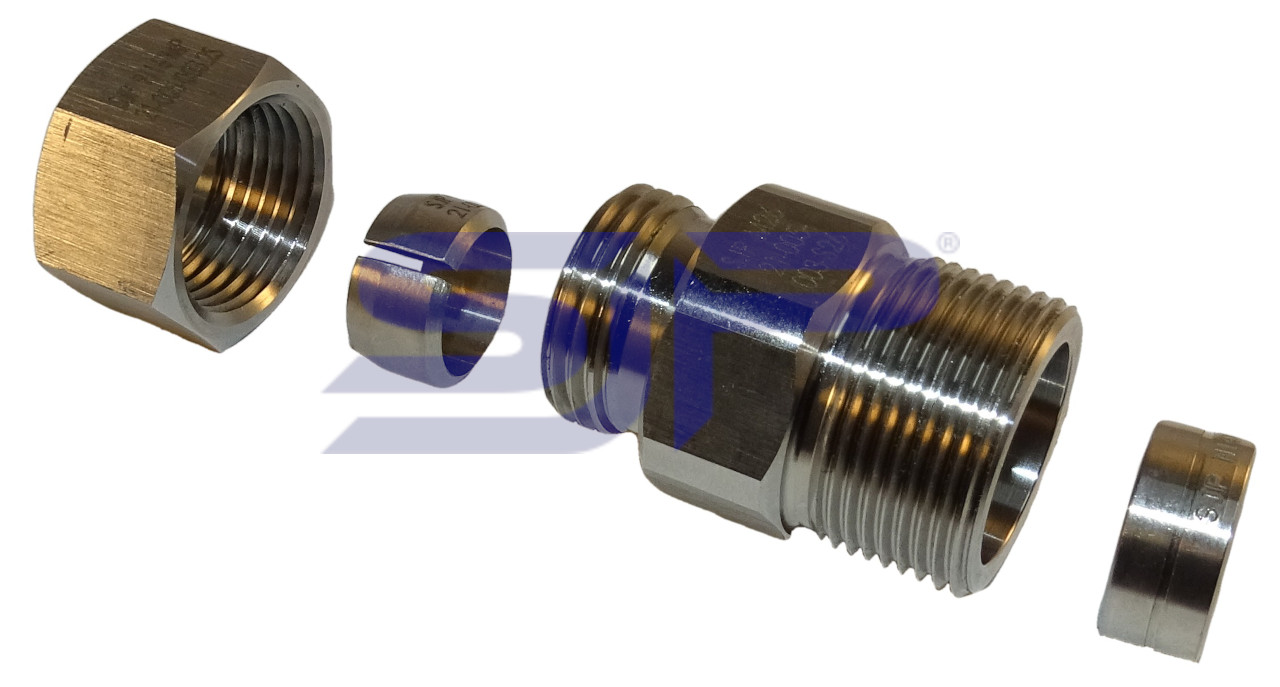

- Complete Assy M26x1,5 / M14x1,5LH : 21-005-003-SM26.M14

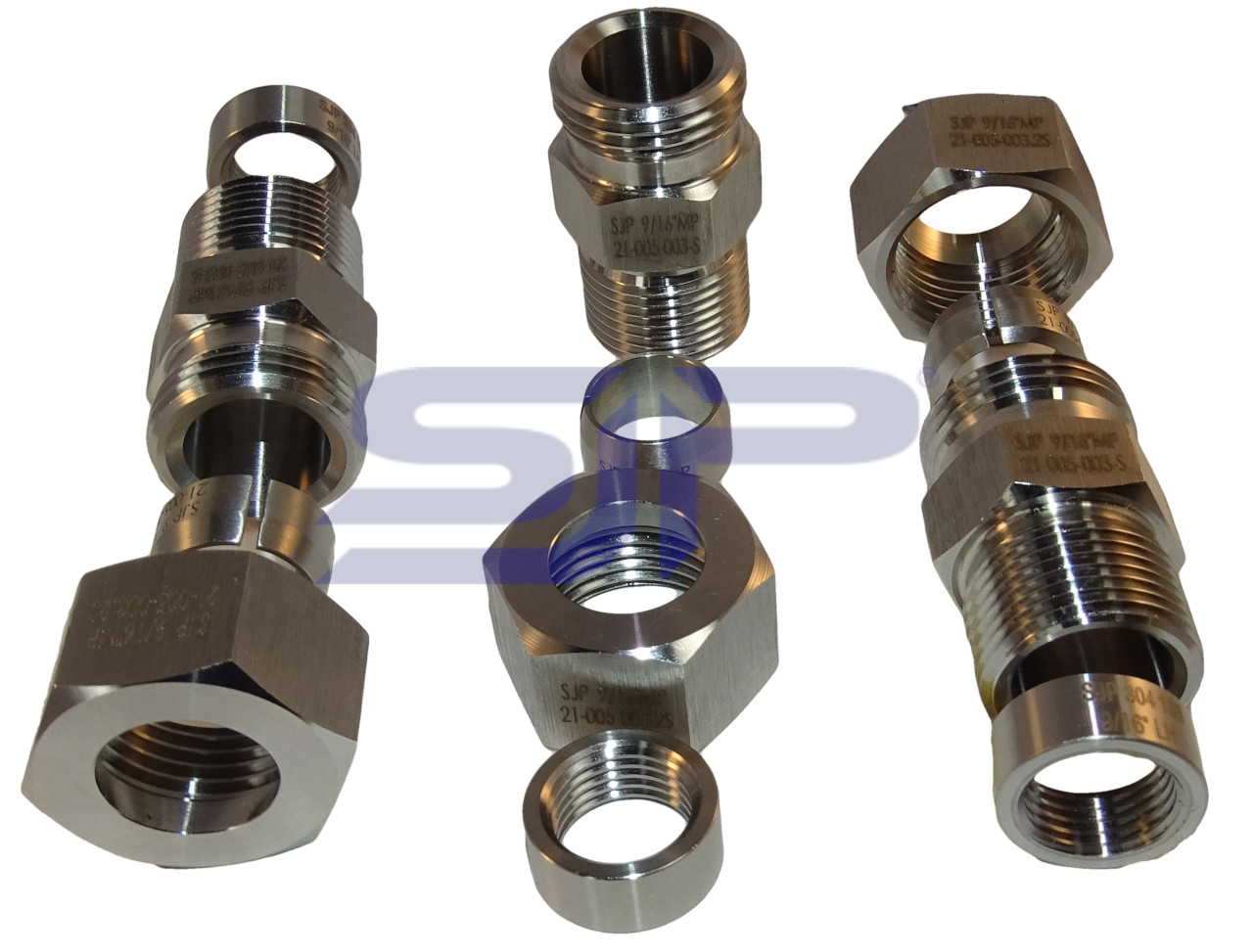

Spare parts :
- Body Anti-Vibe 9/16"MP (13/16"-16UNF) : 21-005-003.1S26
- Nut slotted collet : 21-005-003.2S
- Slotted collet : 21-005-003.3S
- Collar 9/16"-18UNFLH : 304108
- Collar M14x1,5LH : 195-111
Open attached drawings for more details.
