1-5/16"UNF

1500 Bar
1-5/16"UNF

Product description

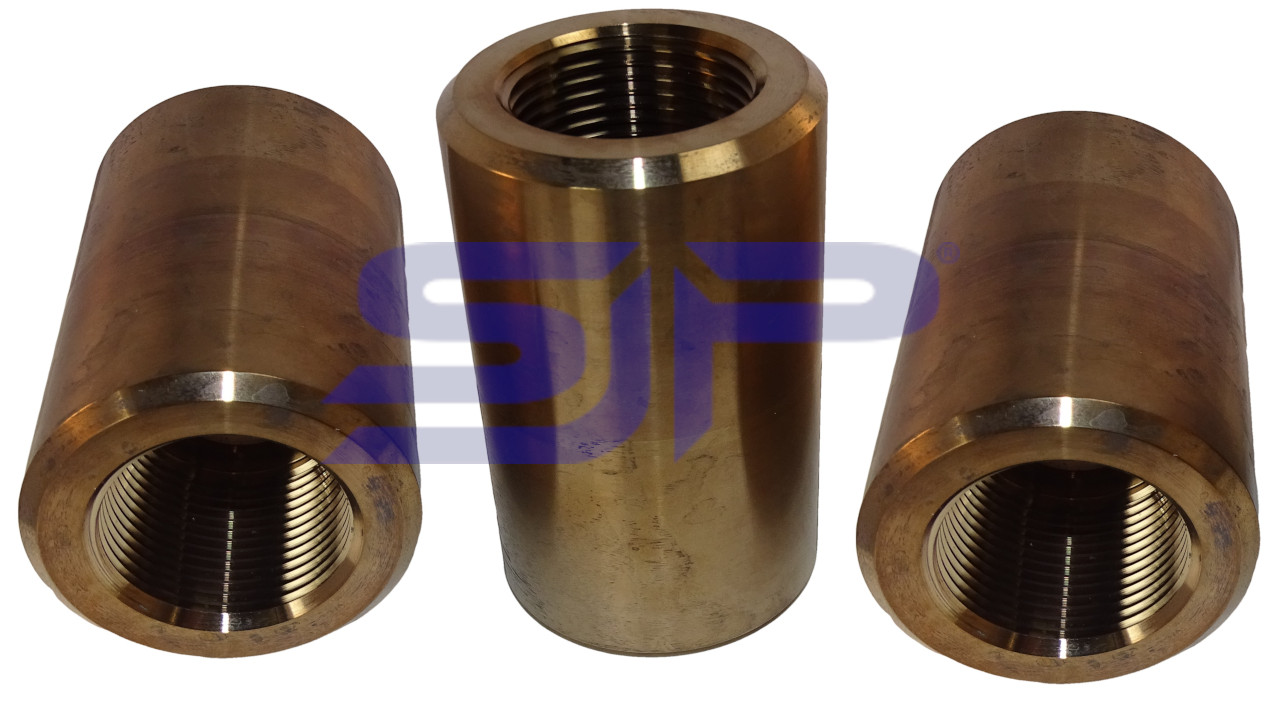

Slimline couplers mostly use to connect lances (stingers) ,by using slimline couplers the OD of the connection is the smallest.

Those heavy duty type is bigger than the standard slimline coupler.

For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.

This coupler mostly use for lance extension of the SCS-MP16-75 Tank cleaner of StoneAge®

  • Dimensions : ø 50 x 85 mm.
  • ID : ø 23 mm.
  • Flat sides : 44 mm.
  • Connections ; 1-5/16"-12UNF F both ends
  • Material : st.s.t incl. heat treatment
  • Part number : SA052-S21S21-S
