9/16"HPM - M24x1,5F (cone)

1600 Bar

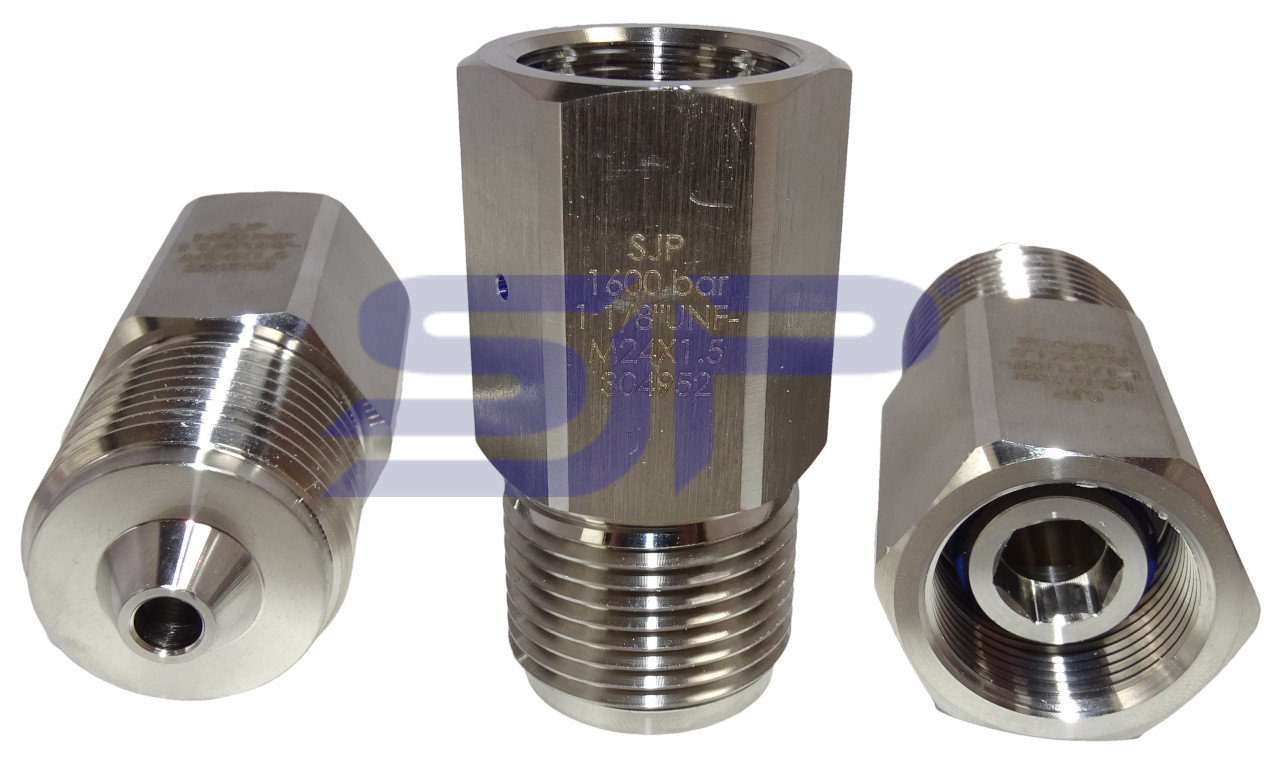

Product description

Adapter various applications ( mostly (Itensify®) testunit)

  • Connections : 1⅛"-12UNFM - M24x1,5F (with 24° inside cone + o-ring)
  • Dimensions : Hex. 30 x 66 mm.
  • ID ø 5,5 mm.
  • Material : st. steel 316
  • Part number : 304952

Spare parts :

  • M24x1,5 Cone ID ø 10 mm. M16x1M excl. O-ring Part number : 304055.1 (see attached drawing)
  • O-ring (Viton blue) M24 cone (need 2 x for 1 complete coupler) : 98000719blue
  • Copper ring between M16 cone and body < 1000 Bar : 584.10
  • Ampco ring between M16 cone and body > 1000 Bar : 584.17.ALB
  • Cone 304055.1 mounting with Alan Key 10 mm. and Loctite 270


More details you can find on attached drawings
