GrüloKan 250

250 Bar
GrüloKan 250

Product description

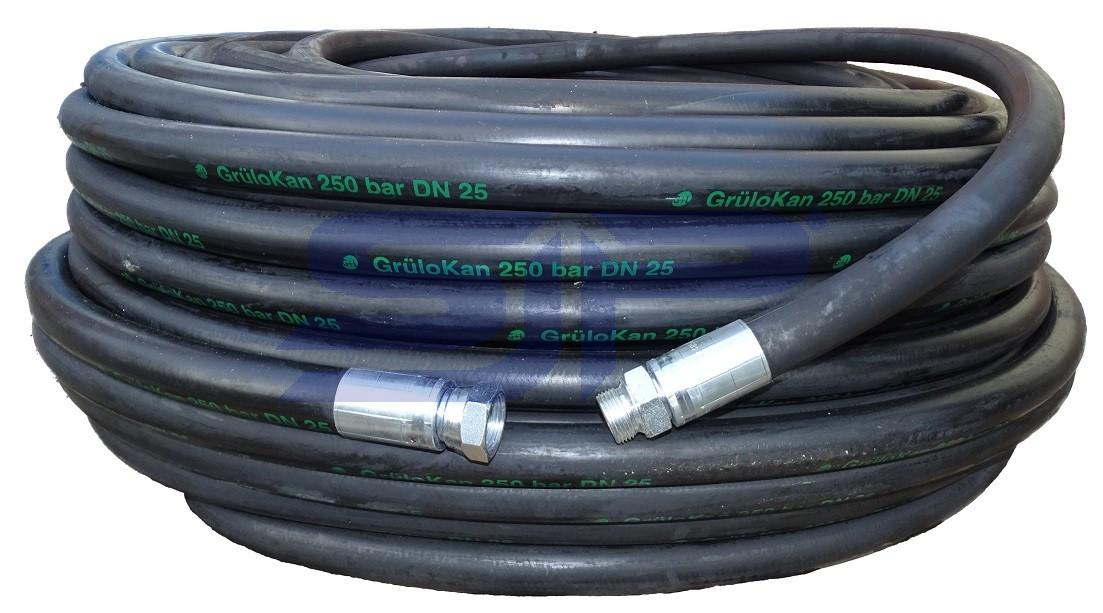

GrüloKan 250 offers you all benefits of a professional rubber sewer cleaning hose.

The specially developed rubber compound guarantees a long operating life, high abrasion resistance and an extreme flexibilty. GrüloKan 250 is characterized by its easy handling, light weight and excellent pressure resistance.

In addition GrüloKan 250 has a very small bending radius.

The hose cover is resistant to abrasion and cut exposure, aging and water resistant.

All hoses are assembled with BSP female/male and ferrules. Delivery takes place with test certificate on each assembled hose

General Construction :

  • Material in - and outside wall : NR/SBR Synthetic rubber
  • Lining : 2-ply braided synthetic fibres
  • Temperature range : -40°C to + 70°C
  • EN – Norm                           : 10204 3,1 B
  • DIN – Norm                         : 53516
  • ISO                                        : 1307
  • Colour in - outside  : black


NW13 (½')

  • Dimensions : ø 13 mm. x ø 25 mm.
  • Weigth : 0,45 kg. /mtr.
  • Bendradius : 70 mm.
  • Connections (standard) : ½"BSPM (60°conus) - ½"BSP swivelnut
  • Standard Length : 60 - 80 - 100 - 120 - 240 mtr.
  • Part number : 10066-013-... (last = length, so 120 mtr. : 10066-013-120)


NW19 (¾")

  • Dimensions : ø 19 mm. x ø 31 mm.
  • Weight : 0,53 kg. /mtr.
  • Bendradius : 80 mm.
  • Connections (standard) : ¾"BSPM (60°conus) - ¾"BSP swivel nut
  • Standard Length : 60 - 80 - 100 - 120 - 150 - 160 - 180 -200 - 220 - 240 mtr.
  • Part number : 10066-019 -... (last = length, so 120 mtr. : 10066-019-120)


NW25 (1")

  • Dimensions : ø 25 mm. x ø 39 mm.
  • Weight : 0,81 kg. /mtr.
  • Bendradius : 100 mm.
  • Connections (standard) : 1"BSPM (60°conus) - 1"BSP swivel nut
  • Standard Length : 60 - 80 - 100 - 120 - 160 - 180 - 200 -220 - 240 mtr.
  • Part number : 10066-025 -... (last = length, so 120 mtr : 10066-025-120)



NW32 (1¼")

  • Dimensions : ø 32 mm. x ø 47 mm.
  • Weight : 1,08 kg. /mtr.
  • Bendradius : 140 mm.
  • Connections (standard) : 1¼"BSPM (60°conus) - 1¼"BSP swivel nut
  • Standard Length : 60 - 80 - 100 - 120 - 160 - 180 - 200 -220 mtr.
  • Part number : 10066-032 -... (last = length, so 120 mtr. : 10066-032-120)


NW38 (1½")

  • Dimensions : ø 38 mm. x ø 54 mm.
  • Weight : 1,25 kg. /mtr.
  • Bendradius : 160 mm.
  • Connections (standard) : 1½"BSPM (60°conus) - 1½"BSP swivel nut
  • Standard Length : 60 - 80 - 100 - 120 - 150 mtr.
  • Part number : 10066-038 -... (last = length, so 120 mtr. : 10066-032-120)


Please note by changing the hose on your hose reel :

It's always advisable to put pressure on the hose before you wind it up the first time.

So completely unroll the new hose and connect it to the hose reel, mount the nozzle on the hose and put pressure on the hose (pressure you always use to work with)

All the windings are out of the hose and the hose expanded a bit, now you can take the pressure of and wind the hose nice and neatly with a towel over the hose, the towle will clean the hose and the dirt won't press in the outside of the hose what can give little demage on the hose.

When you start working with the hose, the hose inside that you don't use do have enough room to expand, if you didn't put pressure on the hose at the beginning the hose stay small and don't have enough room to expand, the hose can get demage like cracks and not usable anymore
