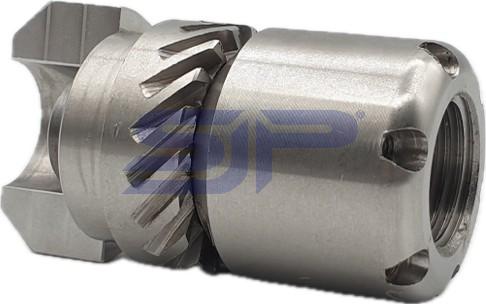

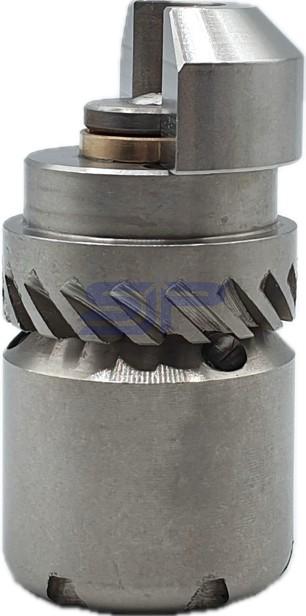

Vibrating Nozzle Light ½"

250 Bar

Product description

An unbalanced rotor section causes this nozzle to generate vibration/impact in the pipe.

Once this forceful action breaks deposits and other hard materials up they are ready to be flushed out.

Less aggressive options for the top cap section are also available.

ATTENTION: This nozzle intended for use in plastic (HDPE, PVC etc..) and cast iron pipes only.

Never use it in clay and concrete pipes!!!

Advantages:

  • Removal of solid material on the bottom without damaging the pipe
  • Can be used in confined pipe areas where chain cutters won't fit
  • Low maintenance, no lubrication required
  • Also use in verticale tubes
  • Doesn''t require bushings or bearings


Applications:

Landfills and also removal of concrete and deposits such as calcium.

Technical details :

  • Dimensions : ø 35 x 70 mm.
  • Connection : ½"BSPF
  • Weight : 0,33 kg.
  • Nozzle patern : in body 6 x 25° M4 in body, 2 x M4 to drive turbine
  • Minimum flow40 ltr./min.
  • Effective cleaning area ø 70 - ø 110 mm.
  • Part number : VN12
