SJP-A80R1

SJP-A80R1

Product description

To properly protect the A80R tank cleaner, we can supply a excellent case.

This case is suitable for 2 x hot water units, 1 x 18ltr-160 bar & 1 x 30ltr. - 160 bar, only 2 nozzles are used so the nozzle head i permanently fitted with 2 blind nozzles.

Even the pump provide more pressure, they are the nozzles have been adjusted so that the pump at full rpm will not exceed the maximum working pressure of the A80R

In this case both pumps have the same (M24) connection so the inlet is permanently provided with the desired adapter.

When changing the pump, a set of driving nozzles and 2 round jets are available can easily be replaced in the field using the associated tools

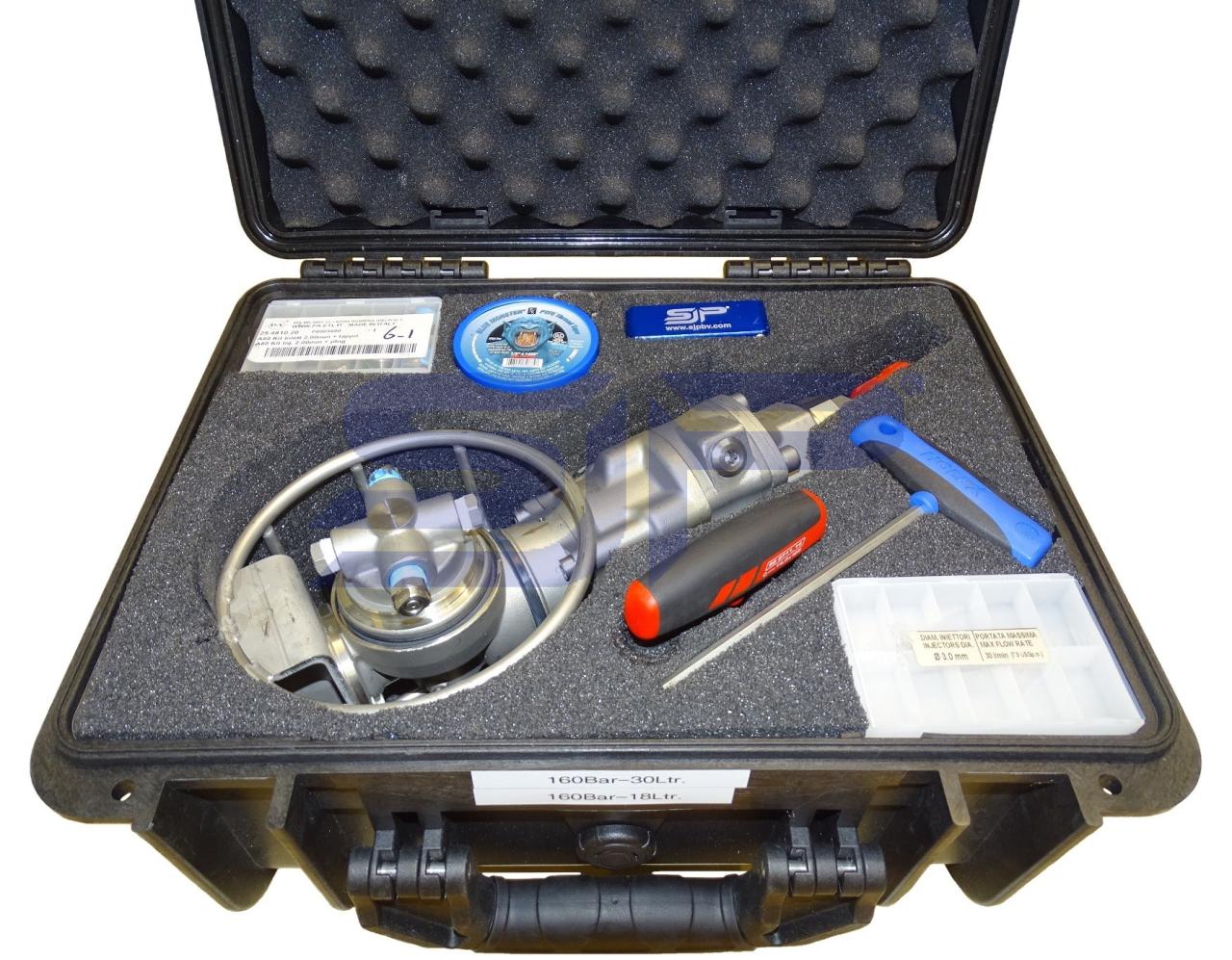

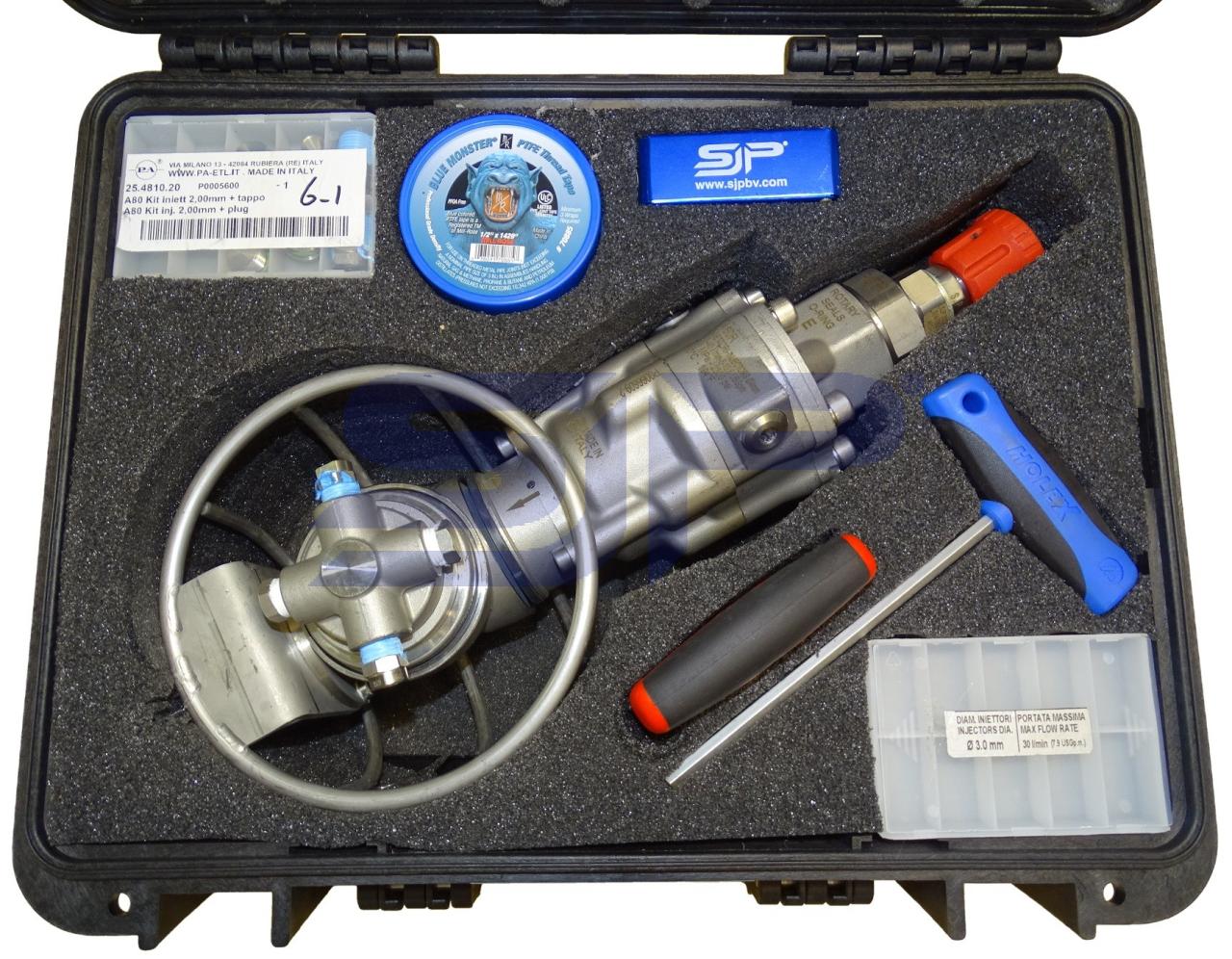

The suitcase consists of :

  • 1 x Tank cleaner A80R : 890500 (18 ltr.)
  • 1 x Mounted protecting cage :P25482200
  • 1 x Heavy Duty adapter ¾"BSPM - ½"BSPF for inlet : 4109-S
  • 1 x Inlet hose adapter M24 swivel nut : 150420
  • 1 x multiseal ½" : 221206
  • 2 x Rond jet nozzle mounted in head :4000035 (18 ltr)
  • 1 x Extra nozzle driver set in box : P25481030 (30 ltr.)
  • 2 x Rond jet nozzle in box : 4000055 (30 ltr.)
  • 1 x nozzle cleaner : 15-099-125
  • 1 x Blue Monster Tape for mounting nozzles on nozzle head : 24-001-006
  • 1 x Socket Wrench 14 de -mounting & mounting nozzles : 8025
  • 1 x Allen Key 6 de - mounting & mounting drive nozzles : 8015
  • 1 x O-ring lifter set for pulling out drive nozzles : 15-099-126
  • 1 x Suite case : 382718
  • 4 x layer Ethafoam 30 mm. glued and nice cut out.
  • Part number complete set : SJP-A80R1

For more details , please click on above blue part numbers
