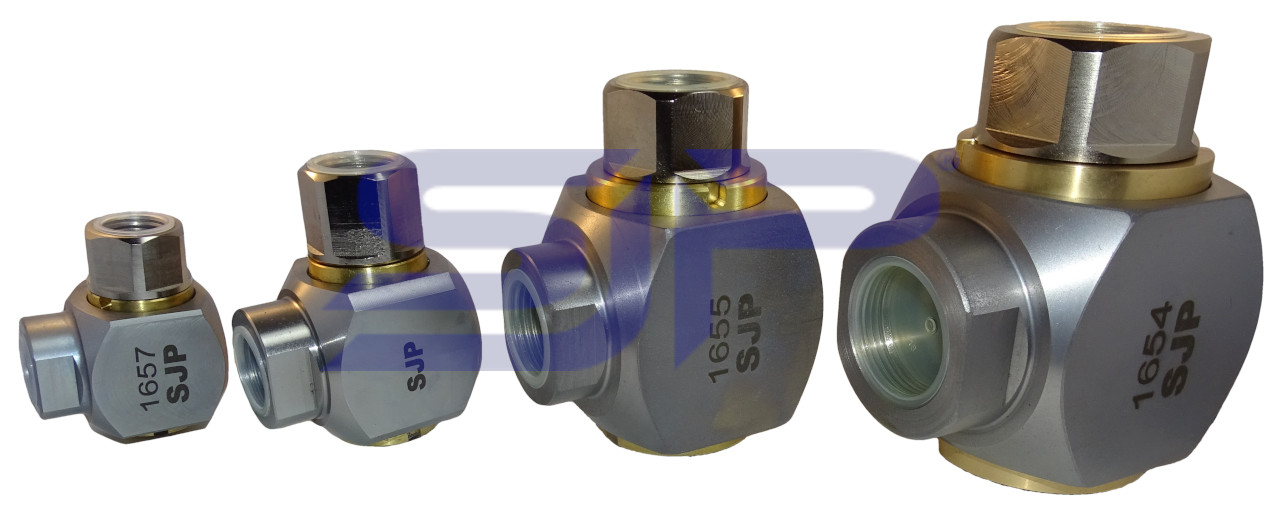

WDG Swivel 90°

350 Bar

Product description

WDG Swivel 90° used to mount on the hose reel for long life and maintenance free, stainless steel

  • Max. Rotating speed : 40 - 50 rpm
  • Temp, : - 10°C / + 100°C


  •  ½”BSPF/F
  • Dimensions : ID ø 12 mm. / 70 x 53 x 40 mm.
  • Weight : 531 gr.
  • Part number : 1657

Compatible with Rom® KO102265

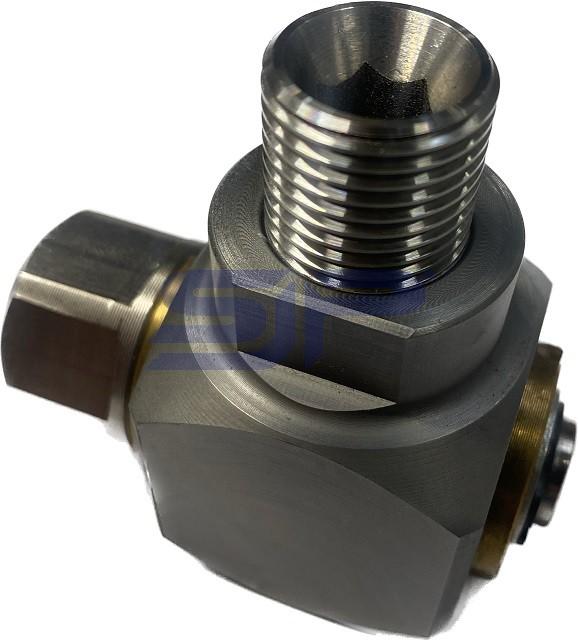

By using adapter 4108 (with seal ring 584.12) you can make it easy ½"BSP male (hose) connection.

  • ¾”BSPF/F
  • Dimensions : ID ø 16 mm. / 92 x 65 x 50 mm.
  • Weight : 984 gr.
  • Part number : 1656

Compatible with Rom® KO100235

  • 1"BSPF/F
  • Dimensions : ID ø 26 mm. / 116 x 86 x 70 mm.
  • Weight : 2,54 kg.
  • Part number : 1655


  • 1¼"BSPF/F
  • Dimensions : ID ø 30 mm. / 132 x 100 x 80 mm.
  • Weight: 3,86 kg.
  • Part number : 1654
