ST-230
700 Bar
Product description

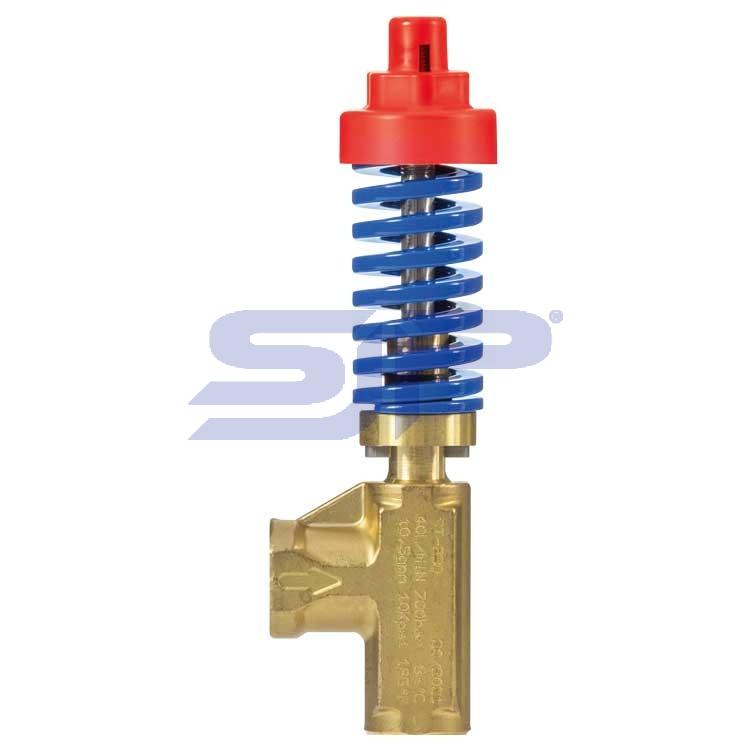

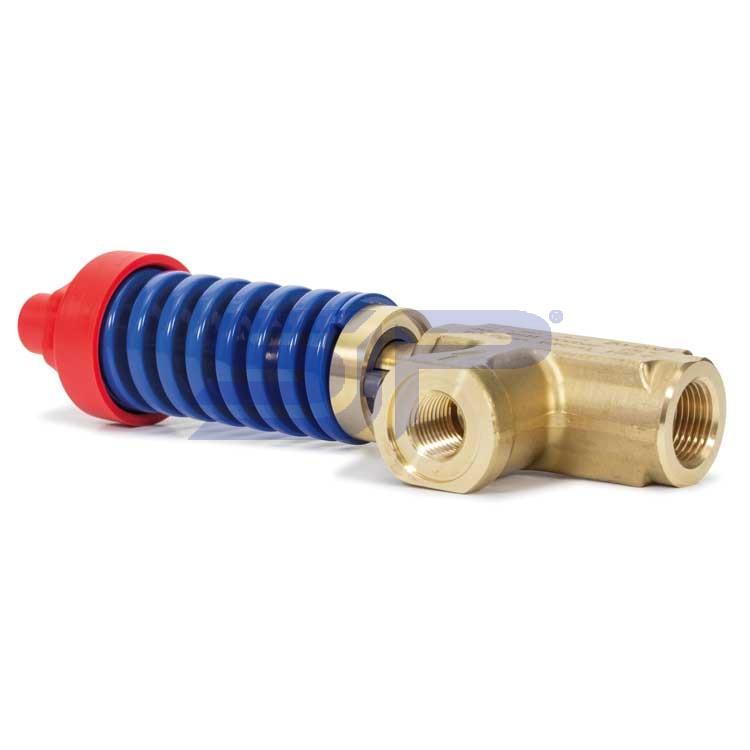

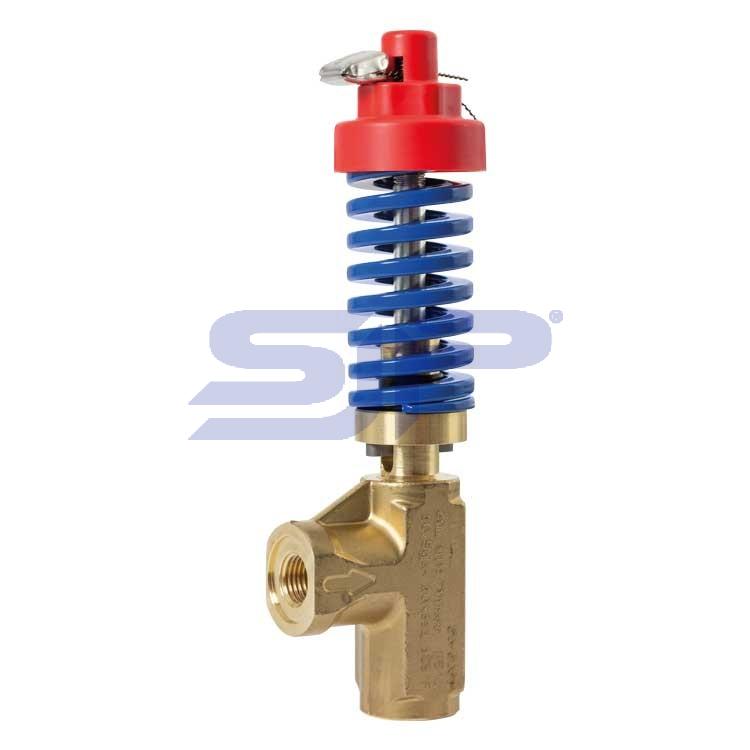

A Pressure Regulating Valve (PRV) can be used on every high pressure unit to divert a portion of the flow to a low pressure outlet. It is really a hand adjusted valve, and it can be used to control pressure when the application requires a flow at the low end of the pumping unit’s operating range..

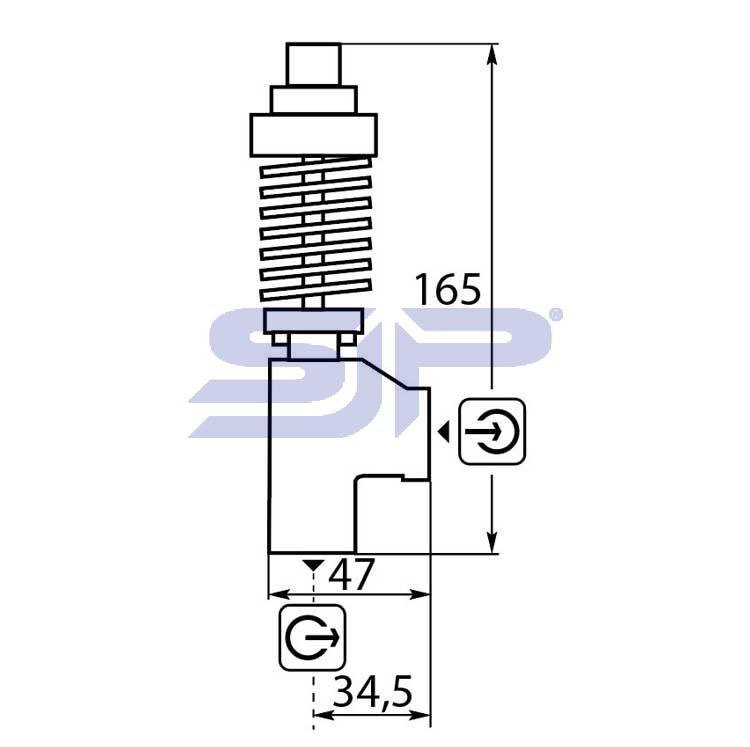

- Dimensions : 165 x 47 x 38 mm.
- Max. working pressure : 700 Bar
- Min. working pressure : 200 Bar
- Max. Flow : 40 ltr./min.
- Max. temp. : 60°C
- Inlet connection : ¼”BSP Female
- Outlet connection : ⅜”BSP Female
- Weight : 0,6 kg.
- Part Number : 200230700
