M14x1,5LH - M14x1,5LH
3200 Bar
Product description

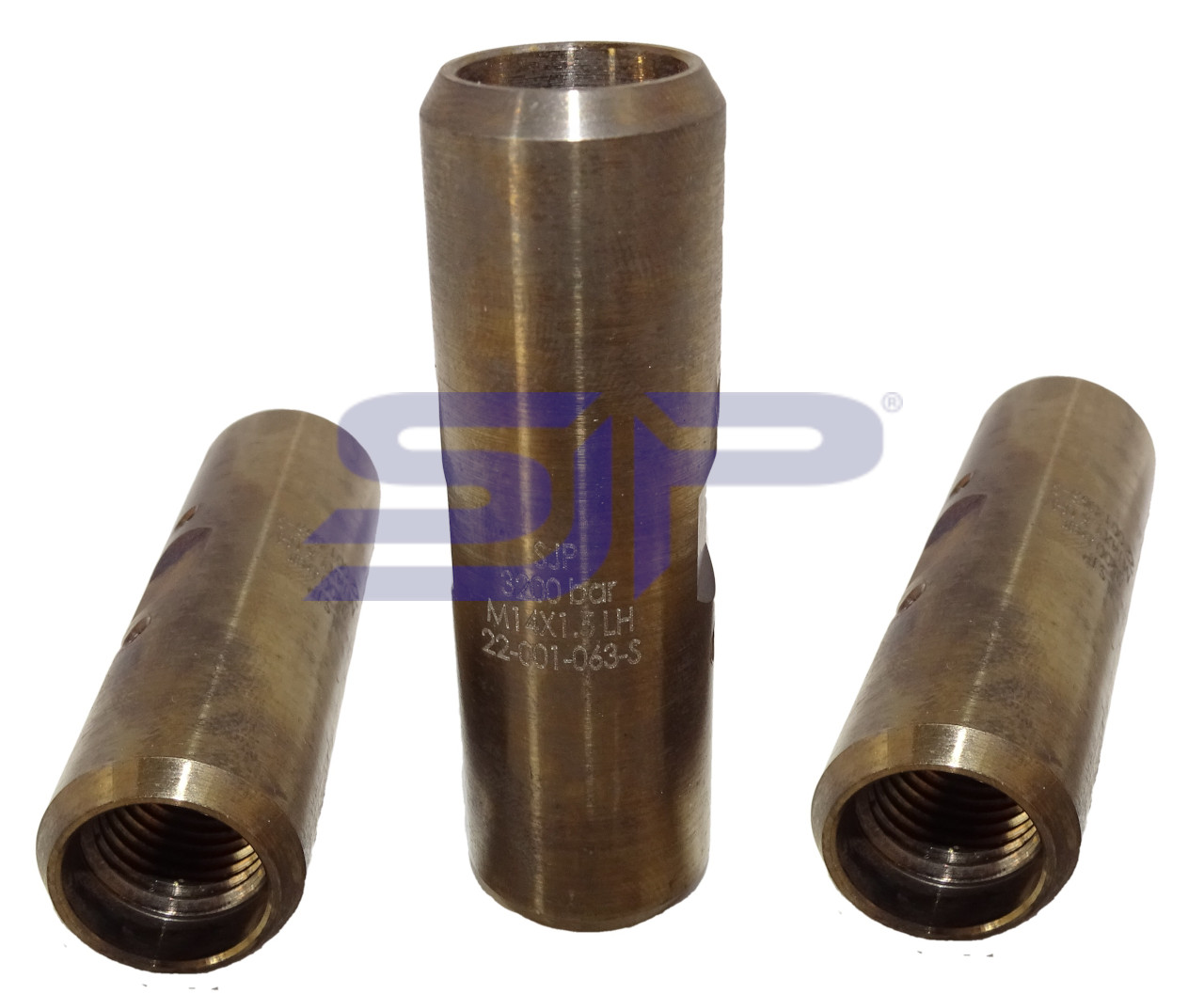

Slimline couplers mostly use to connect lances, by using slimline couplers the OD of the connection is the smallest.
For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.
To get more support on both ends there is a small chamber for the connection for supporting the lance.
- Dimensions : ø 19 x 62 mm.
- ID : ø 5,5 mm.
- Connection : 2 x M14x1,5 LH female
- Wrench size : 17 mm.
- Material : exotic st. st. incl. heat treatment
- Part number : 22-001-063-S
Open attached drawing for more details
All our adapters are unselective tested,
When we receive adapters at least two of them will be tested at least 1.3 x working pressure , for the ultra higher pressures we work with test pressure = max. working pressure , on attached pdf file (click on document) you will find test certificate of this adapter who is tested at 3200 Bar
