⅜"BSP - ¼"BSP
1500 Bar

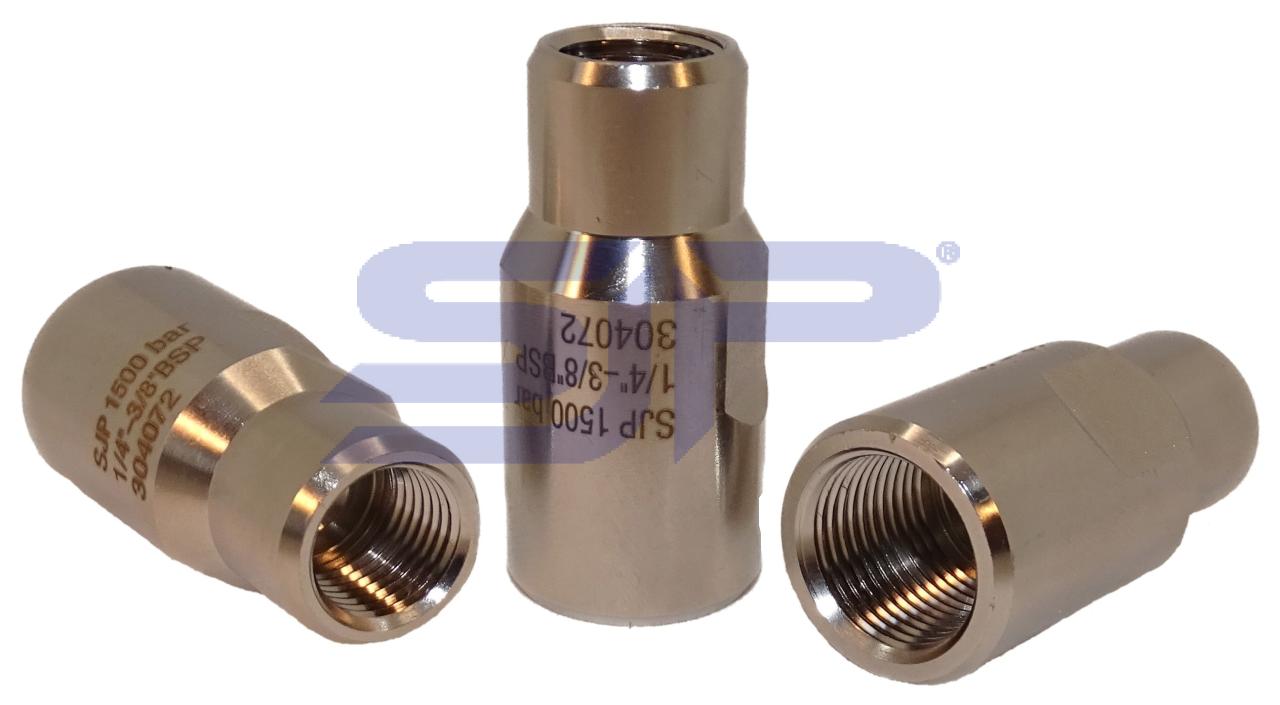

Product description
Slimline couplers mostly use to connect lances (stingers) ,by using slimline couplers the OD of the connection is the smallest.
For easy connection there are 2 flat sides, to avoid "sticking" in a tube they are 30° chamfered on each side.
To get more support on both ends there is a small chamber for the connection for supporting the lance.
- Dimensions : ø 17 / ø 22 x 45 mm.
- ID : ø 5,5 mm.
- Connection : ⅜"BSP - ¼"BSP
- Material : st. st. 316
- Part number : 304072
More details you will find by opening attached drawing.
BSP female thread is flat bottom, to get the perfect sealing between the hose / stinger / lance , you need a perfect fit copper washer.(flat sealing prevent pressure on the thread).
