3688 series (M10x1,5)

4000 Bar

Product description

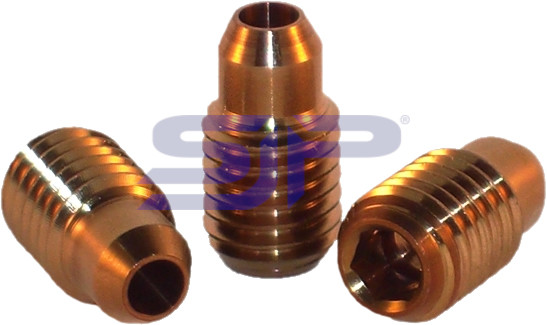

Standard sapphire waterjet orifice assembly designed for use in blasting applications. Produces a coherent waterjet stream to minimize energy loss.

  • Thread : M10 x 1.5
  • Standard overall length of 20 mm. (0.8")
  • Hex key slot : 5 mm.
  • Orifice Sizes: .004" - .050" (0,10 mm. tot 1,27 mm.)
  • Part number : 3688-.. ( so ø .010" = ø 0,25 mm. P/N : 3688-10)


  • Plug Part Number: 3369

  • Standard Allen Key : 9110050
  • Allen Key with cross handle : 8014
