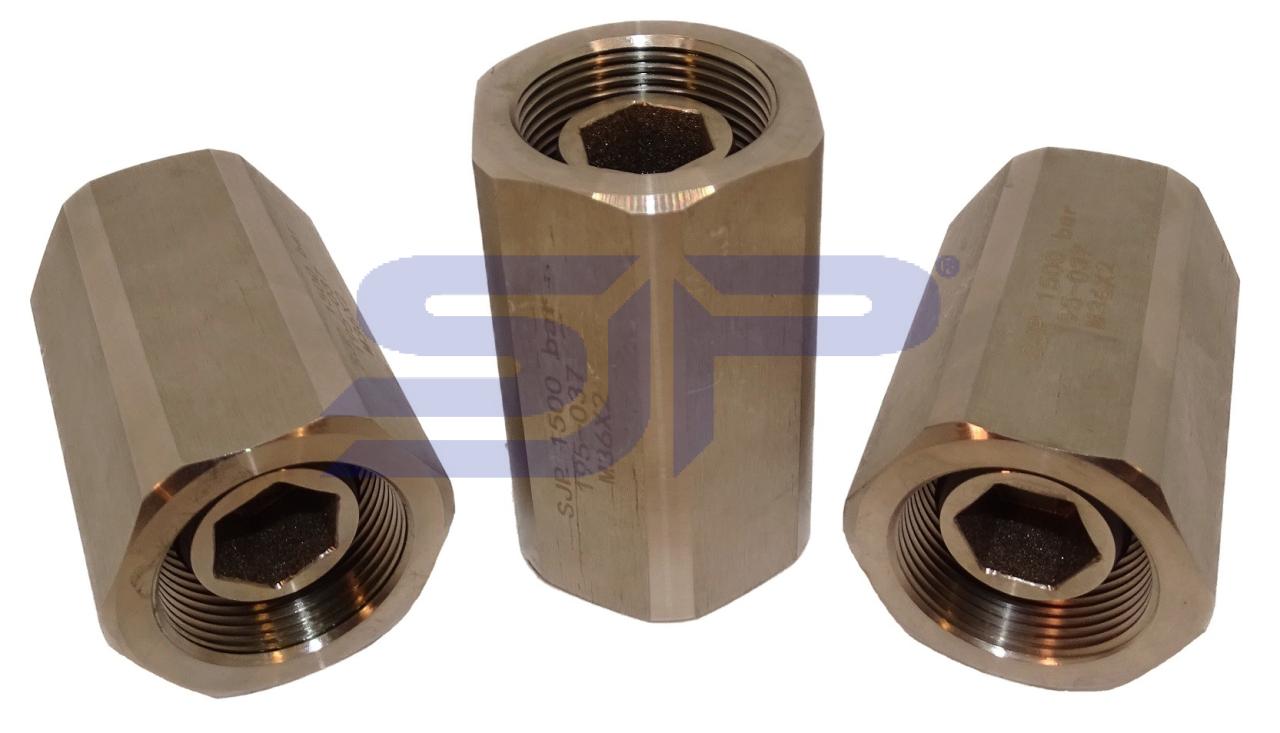

M36 female coupler
1500 Bar
Product description
Unique coupler M36x2 female (both ends) for connecting two M36x2male ends with inside 24° cone (hose conection) together.
Very compact, inside cones comes with o-ring for good sealing, if o-ring start to leak through the wheep hole (no building up pressure at the thread) you can change the o-ring easy, inside cones are easy to replace.
- Dimensions : hex 46 x 77 mm.
- ID : ø 16 mm.
- Mat. St.St. 316
- Part number complete assy. : 195-037
Spare parts :
- Body M24x1,5F/M36x2F Part number : 195-037.01
- M36x2 Cone ID ø 16 mm. M24x1,5M excl. O-ring (need 2 x for 1 coupler) Part number : 195-038.02
- O-ring M36 cone (need 2 x for 1 complete coupler) : 98000722
- Ampco ring between M24 cone and body : 584.25.ALB
- Cone 195-038.02 mounting with Alan Key 10 mm. and Loctite 270
Open attached drawings for more details
